$487.99
Meet Your Seller

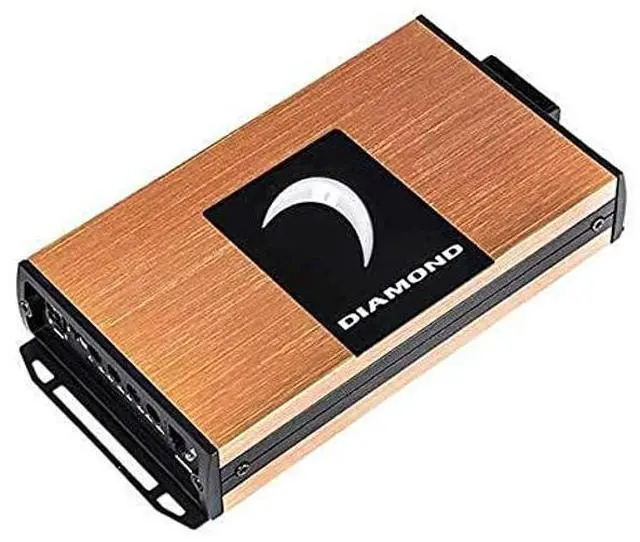

Diamond Audio MICRO2V2 2-Channel 500W RMS Class D Amplifier
- Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
- Four layer, glass epoxy circuit board for enhanced performance and reliability
- Full Range Class D amplifier technology
- Balanced differential inputs for superior noise rejection
- Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input
- Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
- Fully variable, 12dB per octave, electronic crossover
- Variable 18dB per octave sub-sonic filter
- Adjustable Bass EQ (45Hz: 0dB to +12dB)
- Wired Remote Level Control included
- Illuminated logo
- RMS Power Rating - RMS Power (2): 250W X 2
- RMS Power (4): 150W X 2
- Bridged (mono 1): N/A
- Bridged (mono 2): N/A
- Bridged (mono 4): 500W
- Topology: Full Range Class D
- Power Supply: Full PWM
- Power Supply Threshold: 10.0VDC - 17.0VDC
- Idle Current: (0.7A)
- Distortion - THD 4 (1KHx @ 4): 0.5%
- S/N Ratio (A we
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Diamond Audio MICRO2V2 Micro Series 2-Channel Class D Amplifier Amplify your audio with the Diamond Audio MICRO2V2, a 2-channel Class D amplifier from the Micro Series, designed for car and motorcycle systems. Delivering high-fidelity sound in a compact package, this amplifier features DirectFET MOSFET technology and advanced protection for efficient, reliable performance. Perfect for powering speakers with clarity and precision.
Clear Audio Output: Delivers up to 150W x 2 @ 2 for dynamic speaker performance.
Ultra-Compact Size: Small footprint for easy installation in tight spaces.
Efficient Design: DirectFET MOSFET ensures minimal heat and maximum power.
Robust Protection: Thermal and short-circuit protection for uninterrupted operation.
Versatile Connectivity: Supports various speaker configurations for flexible setups.
Output: 150W x 2 @ 2, 80W x 2 @ 4, 300W x 1 @ 4 Bridged
Frequency Response: 20Hzâ20kHz
Dimensions: 8.5 â L x 4.0 â W x 1.46 â H (estimated)
Crossover: 12dB/octave, High/Low Pass adjustable
Sensitivity: 200mVâ10V
Fuse Rating: 25A
Package Includes: 1 Diamond Audio MICRO2V2 Amplifier Power and Signal Input Connectors Mounting Brackets and Hardware Installation Manual Why Choose the Diamond Audio MICRO2V2? With over 30 years of audio innovation, the MICRO2V2 delivers premium sound in a compact, reliable package. This amplifier is the perfect choice for audiophiles seeking high-fidelity audio for their vehicle systems.
Clear Audio Output: Delivers up to 150W x 2 @ 2 for dynamic speaker performance.
Ultra-Compact Size: Small footprint for easy installation in tight spaces.
Efficient Design: DirectFET MOSFET ensures minimal heat and maximum power.
Robust Protection: Thermal and short-circuit protection for uninterrupted operation.
Versatile Connectivity: Supports various speaker configurations for flexible setups.
Specifications
: PowerOutput: 150W x 2 @ 2, 80W x 2 @ 4, 300W x 1 @ 4 Bridged
Frequency Response: 20Hzâ20kHz
Dimensions: 8.5 â L x 4.0 â W x 1.46 â H (estimated)
Crossover: 12dB/octave, High/Low Pass adjustable
Sensitivity: 200mVâ10V
Fuse Rating: 25A
Package Includes: 1 Diamond Audio MICRO2V2 Amplifier Power and Signal Input Connectors Mounting Brackets and Hardware Installation Manual Why Choose the Diamond Audio MICRO2V2? With over 30 years of audio innovation, the MICRO2V2 delivers premium sound in a compact, reliable package. This amplifier is the perfect choice for audiophiles seeking high-fidelity audio for their vehicle systems.
