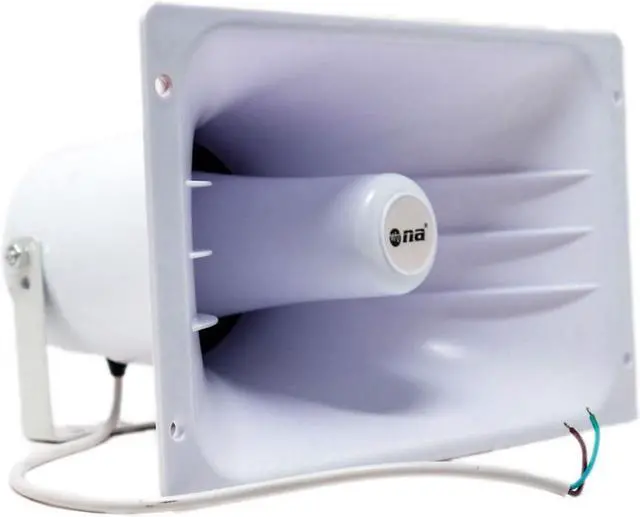

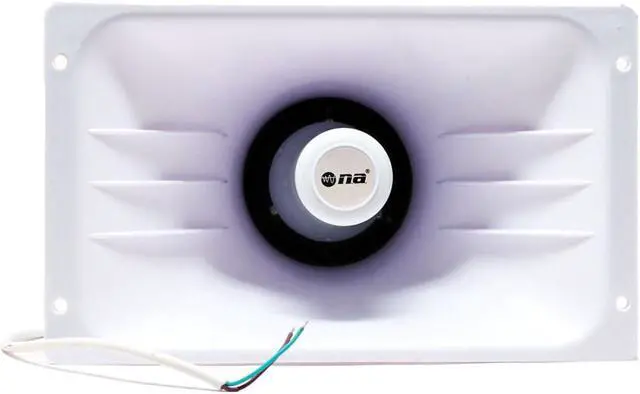

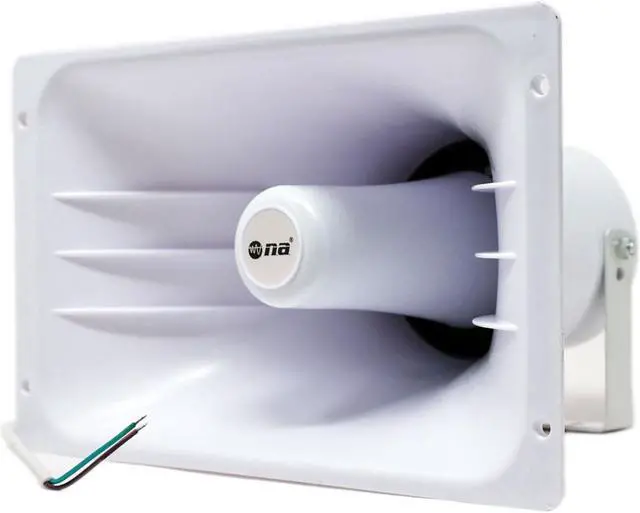

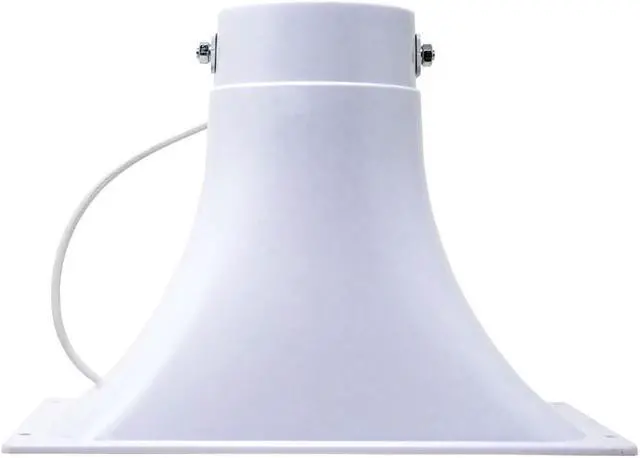

Audiopipe TC45 Nippon Abs Power Horn 100 Watts 11x8.3x6.5
- Material: ABS Plastic, Bracket: Fe Iron
- Impedance: 6 Ohm
- Frequency Response: 300Hz - 15KHz
- Max Power: 80W, Power Handling: 40W RMS
- Dimensions: 11" x 6.6" x 8.3" (280 x 168 x 210mm), Weight: 2.2 Lbs (1.0Kg)
- SPL: 110 dB, IP rating: IP 52
- Dispersion: 85deg x 20deg (2 KHz)
- Magnet Weight: 6.5 oz, Diaphragm: phenolic resin, Voice coil: 1.3" KSV
- Throat Size: O.D: 97mm (3.82")
- Indoor/outdoor use, UV Protected
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufactured in compliance with stringent industry standards, the Nippon America TC-45 PA Powerhorn Speaker provides superior performance, especially when in need of an indoor/outdoor loud horn (UV Protected). Your powerhorn is designed for connection to an amplifier with an impedance of 8 Ohm.
CAUTION: Mount the powerhorn away from heat sources.
To Connect:
Gray Wire Connects to (-) Speaker Terminal
Green (Light) Wire Connects to (+) Speaker Terminal
CAUTION: Mount the powerhorn away from heat sources.
To Connect:
Gray Wire Connects to (-) Speaker Terminal
Green (Light) Wire Connects to (+) Speaker Terminal
