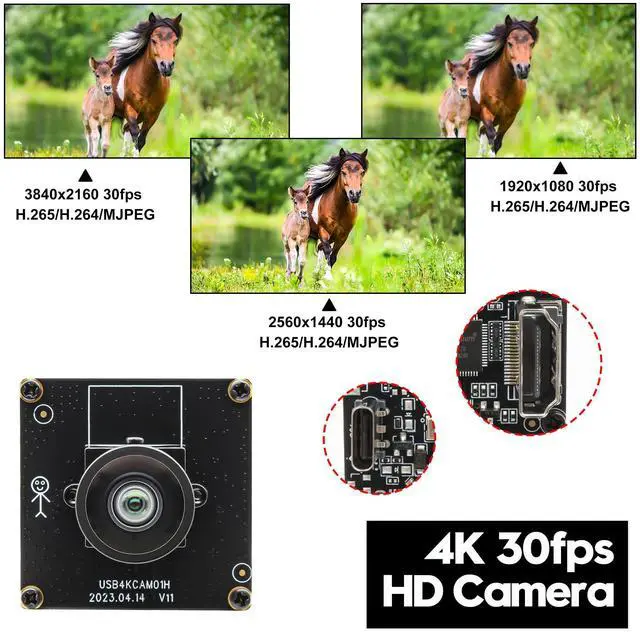

SVPRO HDMI USB Camera 4K Wide Angle Camera Module for Computer Monitor Projector Dual Output Lightburn Camera 2X Digital Zoom Webcam Board H.264 8MP USB2.0 Laser Engraver Camera,120deg Distortion-Free
- Ultra HD video quality: recording 4K/30fps video with max 3840X2160, resolution can be manually adjust via video software on computer.

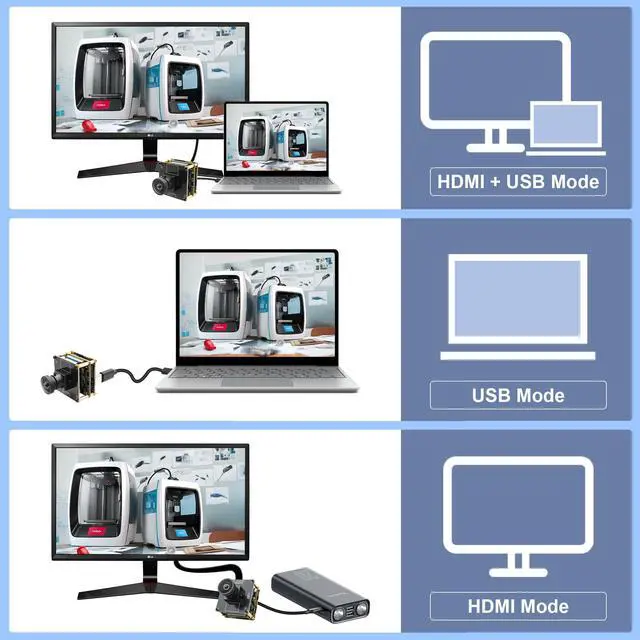

- 4K USB and HDMI Dual Output can recording and live transmission simultaneously, support for computer,hdmi monitor/project/TV.
- 2X digital zoom with 1/2.8" IMX415 CMOS image sensor, low delay, low compression real-time transmission.
- Wide angle 120 degree without distortion, field of view about 124 degree. Capture more scenes and details from a lower distance.

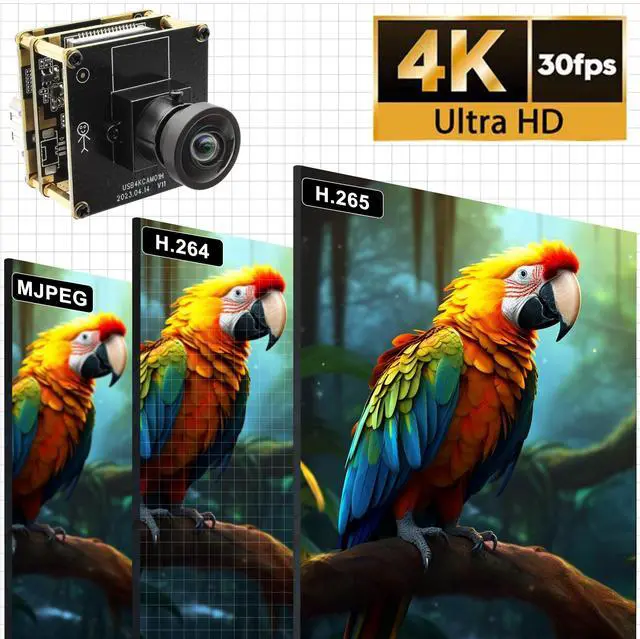

- H.265/H.264/MJPEG/YUY2 optional, can drive 3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps.
- USB2.0 Plug and Play camera module, no extra driver or specific video software required. Compatible with Windows, MacOS, Linux and Android systems.

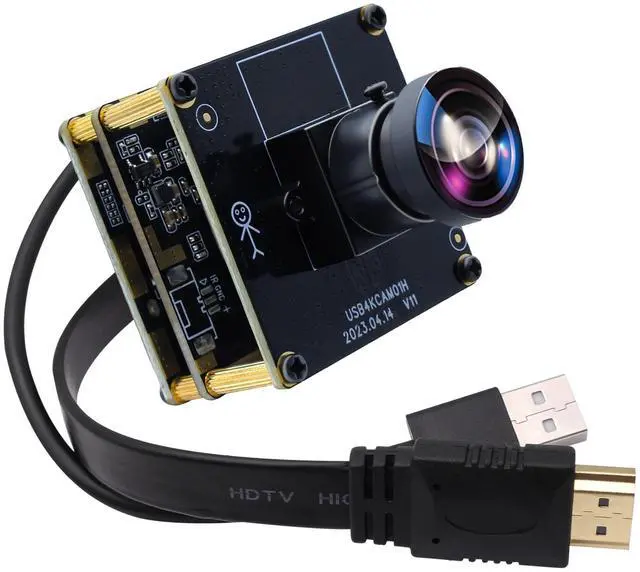

- Package: 1pc camera,1pc 1.2 meter USB C to A cable, 1pc 1.5 meter HDMI cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Camera Specification:
Image Sensor: 1/ 2.8 inch SONY IMX415
Maximum Resolution: 3840 (H) x 2160 (V)
Video Compression: MJPEG / YUY2 (YUYV) / H. 264 / H. 265.
Min.
Illumination intensity: 0.2 lux
Image processing time: About 8 seconds after opening the video preview software
Resolution & frame rate:
3840x2160 MJPEG 30fps/ H. 264 30fps/ H. 265 30fps
2560x1440 MJPEG 30fps/ H. 264 30fps/ H. 265 30fps
1920x1080 MJPEG 30fps/ H. 264 30fps/ H. 265 30fps/ YUY2 5fps
1280 x 720 MJPEG 30 fps, H. 264 30 fps, H 265 30fps, YUY2 10fps.
1024 x 576 MJPEG 30 fps, H. 264 30 fps, H. 265 30 fps, YUY2 15 fps.
960 x 540 MJPEG 30 fps, H. 264 30 fps, H. 265 30 fps, YUY2 15 fps.
640 x 480 MJPEG 30 fps, H. 264 30 fps, H. 265 30 fps, YUY2 30 fps.
640x360 MJPEG 30fps/ H. 264 30fps/H 265 30fps/ YUY2 30fps
Lens parameters:
Focus mode: Fixed focus
2x digital zoom, wide angle, 120deg- Field of view, distortion-free.
Adjustable parameters: brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, exposure
Connections:
Connection type: USB 2.0 interface & HDMI V 1.4 interface
Power supply & interface: USB Type-C power supply, Type-C & HDMI display at the same time
Operating voltage: DC 5 V; Working current: 480-500 mA
Storage temperature: -20degC to 80degC;
Operating temperature: -10degC to 70degC
Package includes: camera body, 1 piece 1.2 meter cable with USB-C-A port, 1 piece 1.5 meter cable with HDMI port, instructions
Operating system requirement:
Win7/Win8/Win9/Win10/Win11, Linux with UVC, MAC-OSX 10.4. 8 or higher, Android 5. x or higher.
No additional drivers or special software required, works with Amcap, OpenCV, VLC, V4L2, fswebcam, Facetime, Camerafi, Manycam, OBS, XBOX one, Zoom and more
Image Sensor: 1/ 2.8 inch SONY IMX415
Maximum Resolution: 3840 (H) x 2160 (V)
Video Compression: MJPEG / YUY2 (YUYV) / H. 264 / H. 265.
Min.
Illumination intensity: 0.2 lux
Image processing time: About 8 seconds after opening the video preview software
Resolution & frame rate:
3840x2160 MJPEG 30fps/ H. 264 30fps/ H. 265 30fps
2560x1440 MJPEG 30fps/ H. 264 30fps/ H. 265 30fps
1920x1080 MJPEG 30fps/ H. 264 30fps/ H. 265 30fps/ YUY2 5fps
1280 x 720 MJPEG 30 fps, H. 264 30 fps, H 265 30fps, YUY2 10fps.
1024 x 576 MJPEG 30 fps, H. 264 30 fps, H. 265 30 fps, YUY2 15 fps.
960 x 540 MJPEG 30 fps, H. 264 30 fps, H. 265 30 fps, YUY2 15 fps.
640 x 480 MJPEG 30 fps, H. 264 30 fps, H. 265 30 fps, YUY2 30 fps.
640x360 MJPEG 30fps/ H. 264 30fps/H 265 30fps/ YUY2 30fps
Lens parameters:
Focus mode: Fixed focus
2x digital zoom, wide angle, 120deg- Field of view, distortion-free.
Adjustable parameters: brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, exposure
Connections:
Connection type: USB 2.0 interface & HDMI V 1.4 interface
Power supply & interface: USB Type-C power supply, Type-C & HDMI display at the same time
Operating voltage: DC 5 V; Working current: 480-500 mA
Storage temperature: -20degC to 80degC;
Operating temperature: -10degC to 70degC
Package includes: camera body, 1 piece 1.2 meter cable with USB-C-A port, 1 piece 1.5 meter cable with HDMI port, instructions
Operating system requirement:
Win7/Win8/Win9/Win10/Win11, Linux with UVC, MAC-OSX 10.4. 8 or higher, Android 5. x or higher.
No additional drivers or special software required, works with Amcap, OpenCV, VLC, V4L2, fswebcam, Facetime, Camerafi, Manycam, OBS, XBOX one, Zoom and more
