CERRXIAN PCIE to 4 Port RS232 Expansion Card,DB9 Dual Channel PCIe X1 AX99100 Expansion Card for Desktop PC,with 4 Port External Cable
- 4 Port PCI Express RS232 Serial Adapter Card 4 RS232 serial ports can be expanded by using the free PCIEx1 socket on the main board, which can be used in self-service automation machines and information kiosks to control serial devices such as touch screens and barcodes
- PCIe RS232 Serial Card, also compatible with devices capable of drawing power from the serial port, suitable for a variety of RS232 powered serial applications, this PCIe card offers selectable 5V or 12V power options, which enables you to configure the card to meet your Requirements for Powered RS232 Devices
- Multiport Serial DB9 Controller/Expansion Card,build-in SATA power socket to source efficient DC power from system,built-in +-15KV ESD protection for all serial signals
- PCIEx1 to RS232 2 DB9 serial port card, the adapter card adopts the native PCI Express single-chip design, which allows you to take full advantage of the full PCI Express function, providing higher speed and reliability, while redu
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

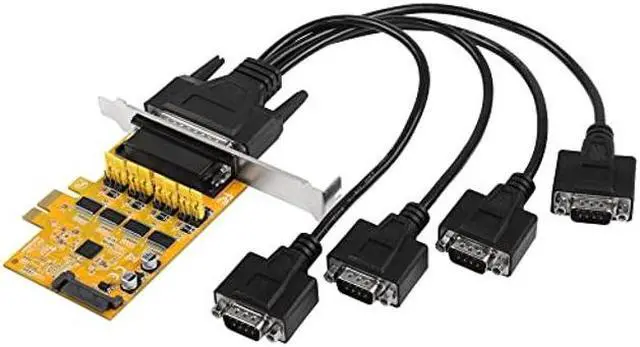

CERRXIAN PCI Express Card turns a PCI Express slot into 4 RS232 (DB9) serial ports
Self-service automated machines and kiosks to control serial devices such as touch screens, bar code scanners, receipt printers, label printers. And the Serial PCIe card supplies 5V or 12V power over pin 1 or pin9
4 high speed RS-232 serial ports with data transfer rate up to 921.6 Kbps

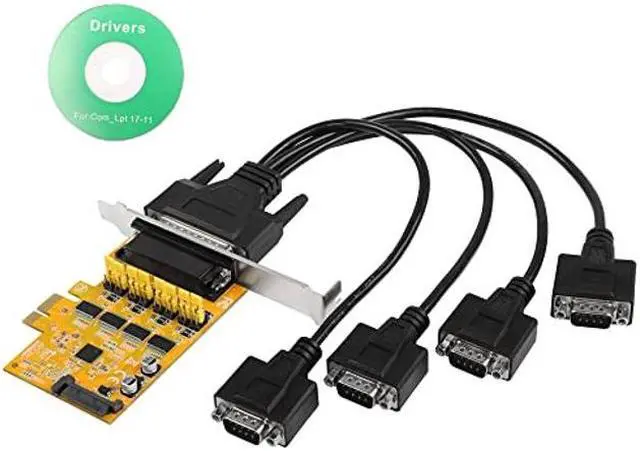

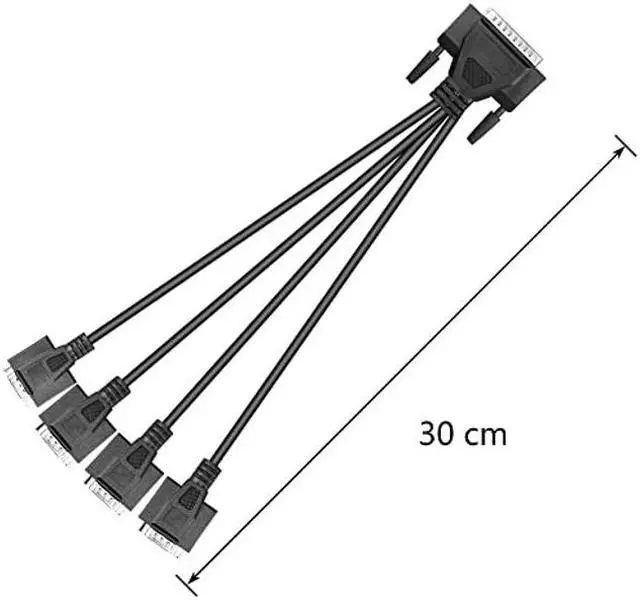

Breakout dongle cable included
256-byte depth FIFO per transmitter and receiver
Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/GND
Provides RS-232 serial port with 5V or 12V power output via COM 1st or 9th pin
Build-in SATA power socket to source efficient DC power from system
Built-in +-15KV ESD protection for all serial signals
Supports Auto-hardware flow control and Auto-software flow control to reduce CPU loading
Compliant with PCI Express base specification revision 2.0
Native single-chip, single lane PCI Express
Hardware
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket included)
Chipset ID: ASIX - AX99100
Industry Standards: PCI Express Base Specification Rev. 2.0
Interface: Serial
Port Style: Dongle (Included)
Ports: 4
Performance
FIFO: 256 Bytes
Data Bits: 5, 6, 7, 8, 9
Stop Bits: 1, 1.5, 2
Parity: Even, Odd, None, Space, Mark
Max Baud Rate: 921.6K bps
Maximum Data Transfer Rate: 921.6K bps
Protocol: RS-232
Connector (s)
Connector Type (s): 1 - PCI Express x1 Male
External Ports: 4 - DB-9 (9 pin, D-Sub) Male
Self-service automated machines and kiosks to control serial devices such as touch screens, bar code scanners, receipt printers, label printers. And the Serial PCIe card supplies 5V or 12V power over pin 1 or pin9
4 high speed RS-232 serial ports with data transfer rate up to 921.6 Kbps
Breakout dongle cable included
256-byte depth FIFO per transmitter and receiver
Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/GND
Provides RS-232 serial port with 5V or 12V power output via COM 1st or 9th pin
Build-in SATA power socket to source efficient DC power from system
Built-in +-15KV ESD protection for all serial signals
Supports Auto-hardware flow control and Auto-software flow control to reduce CPU loading
Compliant with PCI Express base specification revision 2.0
Native single-chip, single lane PCI Express
Hardware
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket included)
Chipset ID: ASIX - AX99100
Industry Standards: PCI Express Base Specification Rev. 2.0
Interface: Serial
Port Style: Dongle (Included)
Ports: 4
Performance
FIFO: 256 Bytes
Data Bits: 5, 6, 7, 8, 9
Stop Bits: 1, 1.5, 2
Parity: Even, Odd, None, Space, Mark
Max Baud Rate: 921.6K bps
Maximum Data Transfer Rate: 921.6K bps
Protocol: RS-232
Connector (s)
Connector Type (s): 1 - PCI Express x1 Male
External Ports: 4 - DB-9 (9 pin, D-Sub) Male
