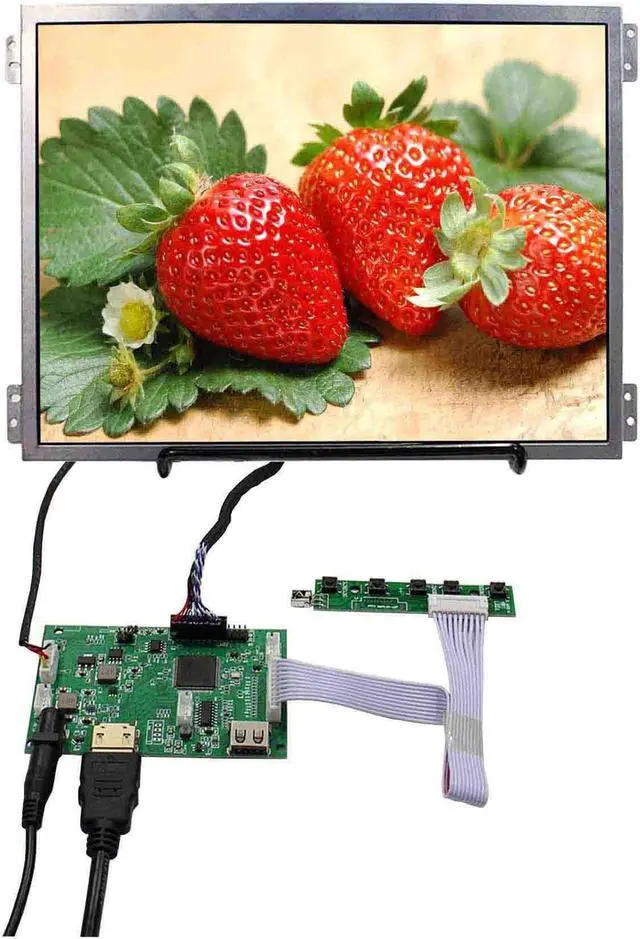

VSDISPLAY 10.4" 10.4 Inch 1024X768 LCD Screen VS104T-004A with MI USB Automatic Brightness Adjustment LCD Controller Board

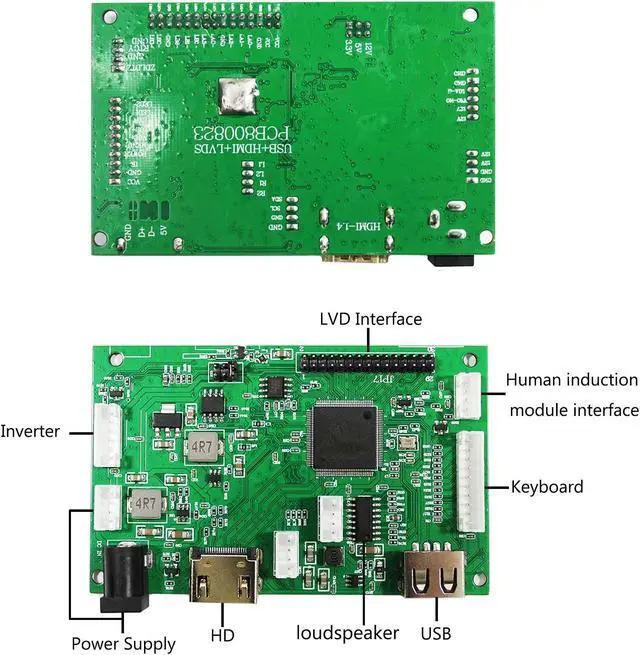

LCD Controller Board:
USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel: 3.3V 5V 12V ( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: USB
: Support 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm

10.4" VS104T-004A 1024X768 LCD Screen:
Display Mode IPS Pro, Normally Black, Transmissive
Resolution 1024x768
Outline Size 227.00 x 175.80 x7 (HxVxD)
Display Area 210.43 x 157.824 (HxV)
Brightness 600 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 80/80/80/80 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit), Connector, 30 pins
Backlight WLED
Input Voltage 3.3V (Typ. )

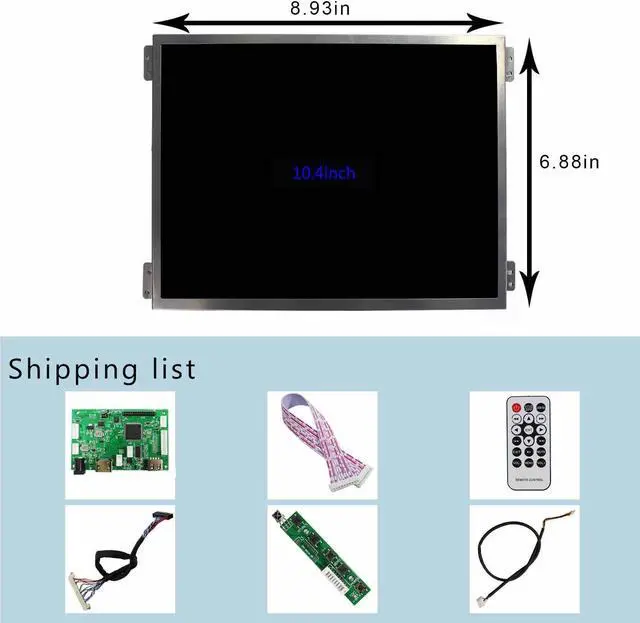

Packing list:
1x LCD Board for 30Pin VS-TY2660HU-823
1x 10.4 inch VS104T-004 1024X768 LCD Screen
1x Converter Board
1x LVDS Cable
1x Keyboard With Cable
