BIGTREETECH CB1 eMMC Core Control Board for 3D Printers to Run Klipper, 32GB ROM, 1GB DDR3 RAM, 100M Ethernet, 100M WiFi, As CM4 Compatible with Rasp-Berry Pi4, BTT Pi4B, Manta E3EZ M8P M4P M5P
- [(Onboad Samsung eMMC 5.1)] BIGTREETECH CB1 eMMC equips with Samsung's latest eMMC 5.1 semiconductor technology to greatly enhance klipper running performance. ROM: 32GB, sequential read: 300MB/s, sequential write: 200MB/s, low power: 0.5w.
- [(BTB Design)] BIGTREETECH CB1 eMMC core control board features the same board to board header as Rasp-berry CM4. Thus BTT CB1 eMMC can be directly mounted both on your Rasp-berry Pi and BIGTREETECH Pi4B base board to run klipper in a highly cost-effective way.

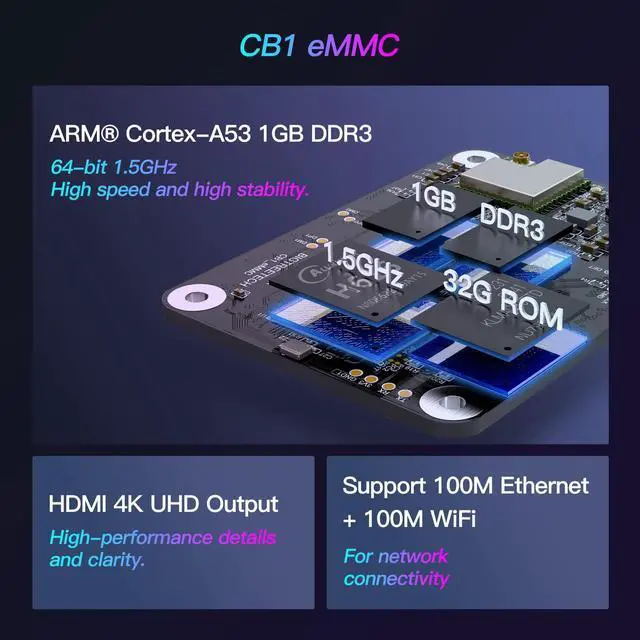

- [(Powerful System)] BTT CB1 eMMC adopts quad-core 64-bit Cortex-A53 @1.5GHz processor and Mali G31 MP2 GPU, supporting OpenGL3.2; With 1GB DDR3 memory chip, CB1 eMMC is programmable and powerful to run Linux and supports Debian.

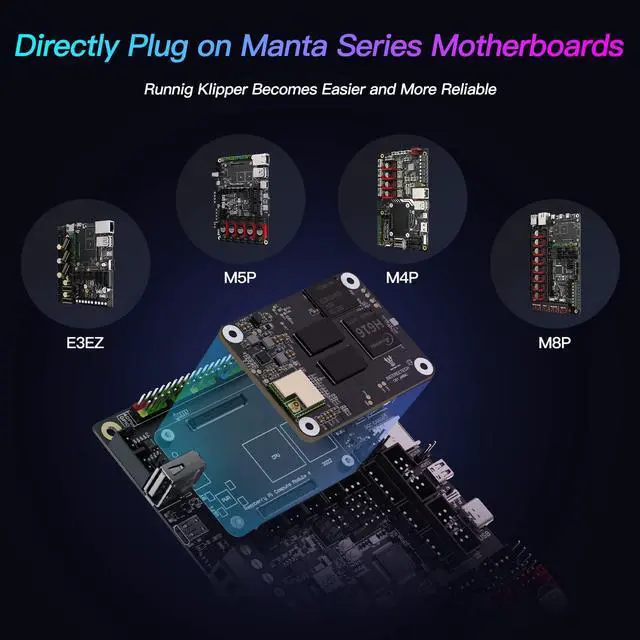

- [(Easy to Run Klipper)] With the same BTB connector as CM4, CB1 eMMC can be directly mounted on BIGTREETECH Manta series motherboards: Manta E3EZ/Manta M4P/Manta M5P/Manta M8P to run Klipper easier and more reliable. It can be also used with BTT Pi4B or Rasp.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameters:
1.
CPU: ALLWINNER H616, Quad-core Cortex-A53 @ 1.5GH z
2.
GPU: Mali G31 MP2, Support OpenGL 3.2
3.
RAM: 1GB DDR3L
4.
Storage Capacity: 32GB
5.

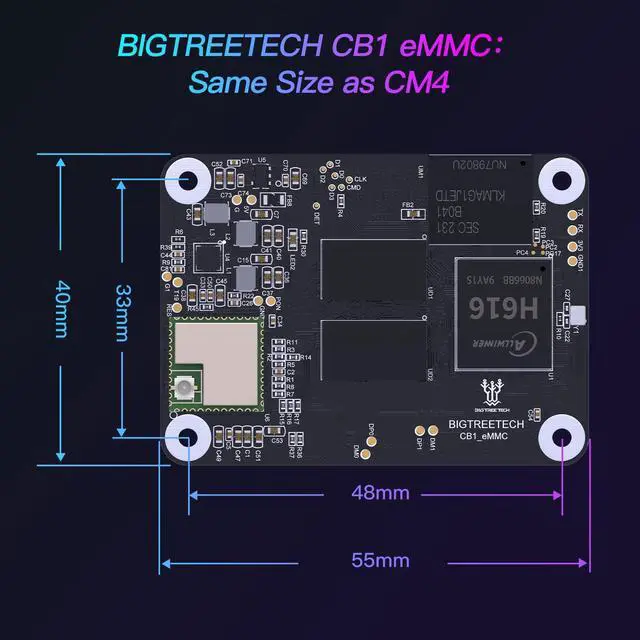

Product Size: 40mm x 55mm
6.
Mounting Size: 33mm x 48mm
7.
Input Voltage: 5V+-5%/2A
8.
Output Voltage: 3.3V +-2%/100mA
9.
Output Voltage: 1.8V +-2%/100mA
10.
WiFi: 2.4G / 802.11 b/g/n
Compatible Motherboards:
1.
Board to board: Manta E3EZ, Manta M4P, Manta M5P, Manta M8P (all BIGTREETECH Manta series motherboards )
2. Need Pi4B / Rasp.
Pi Base Board: SKR MINI E3 V 3.0, SKR 3, SKR 3 EZ, SKR Pico, Octopus Pro...
1.
CPU: ALLWINNER H616, Quad-core Cortex-A53 @ 1.5GH z
2.
GPU: Mali G31 MP2, Support OpenGL 3.2
3.
RAM: 1GB DDR3L
4.
Storage Capacity: 32GB
5.
Product Size: 40mm x 55mm
6.
Mounting Size: 33mm x 48mm
7.
Input Voltage: 5V+-5%/2A
8.
Output Voltage: 3.3V +-2%/100mA
9.
Output Voltage: 1.8V +-2%/100mA
10.
WiFi: 2.4G / 802.11 b/g/n
Compatible Motherboards:
1.
Board to board: Manta E3EZ, Manta M4P, Manta M5P, Manta M8P (all BIGTREETECH Manta series motherboards )
2. Need Pi4B / Rasp.
Pi Base Board: SKR MINI E3 V 3.0, SKR 3, SKR 3 EZ, SKR Pico, Octopus Pro...
