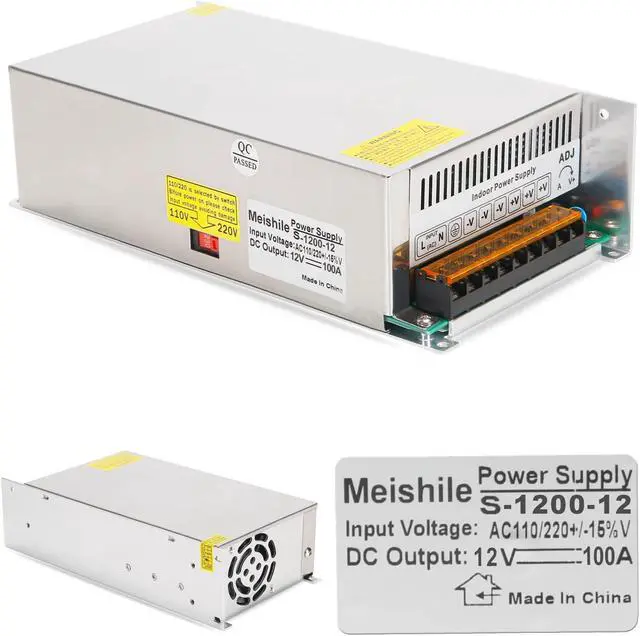

12V 100A 1200W DC Switching Power Supply Adapter PSU AC-DC 12Volt Industrial Transformer Converter 0-80/50amps LED Drive Lamp Meter Semiconductor Motor Pump Winch Stereos Amplifier Fan SMPS 110V/220V
- MEISHILE S-600-12, Universal input voltage: AC 110V/220V, Output 12V, Rated power 100A 1200W, Portable, Small, Compact:24.5 x 12.5 x 6.5 cm/9.6 x 4.9 x 2.5 inch, weight 1.6 kg SAFETY: Use must derating: max load cannot exceed 80%
- PSU(SMPS) convert AC to DC, output current depends on the requirements of the power consuming equipment, Power multiple devices with different Currents/ Watts. Please set aside sufficient POWER Derating for your type of equipment
- Used for DC 12V Brushless type motor drive, oxygen/water Pump, semiconductor drive, Atomizer, Winch, Car Jack, Car Stereos, Amplifier, Radios, Air Compressor, LED Light Strip, CCTV Security Camera, Household Appliances, Electronic Devices, Automation Equipment, Computer Project, Servos, City street light sand table toy model drive, etc
- PROPRIETARY Circuit solutions: High EFC, Low-loss, Long Service Life: More than 6,000 hours of service life; Aluminum shell, Low standby power consumption, High efficiency
- STABLE:
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
12V 100A 1200W
[Failure caused by overload or used for battery will lose the warranty. ]

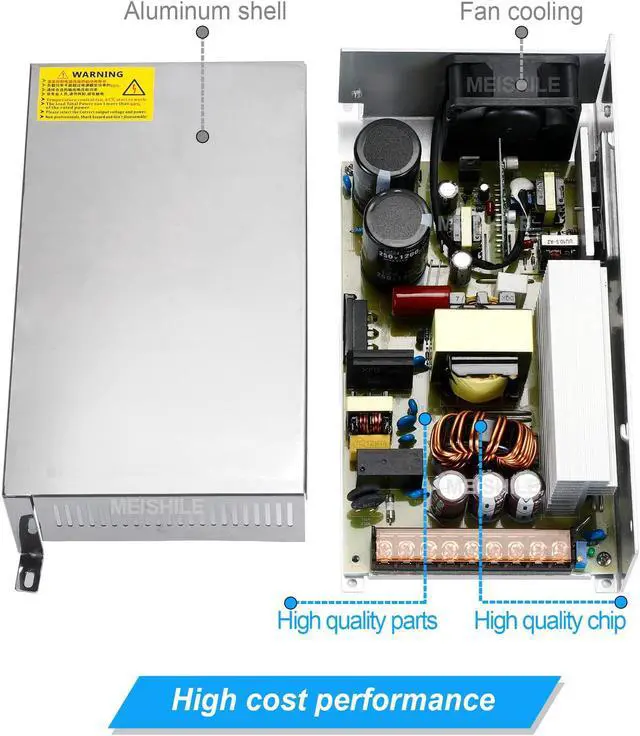

Strong cooling fan, Smart Chips
Transparent cover: Dustproof, Prevent accidental touch
Large Capacity, Moderate Dielectric Strength, High ESR.
High quality EMI filter inductor made of copper: Low loss, high efficiency, good heat dissipation, stability.
PROTECTION:
Overload / Overvoltage / Overcurrent / Short-circuit protection: When the output terminal is short-circuited, pause output
Package contains:
1 x POWER SUPPLY
1 x USER MANUAL
Download the multilingual User Manual from "Product Guides and Documentation"
Power multiple devices with different Currents/ Watts
Model example for S-600-12: Single voltage output, output voltage DC 12V, rated output power 600w, Peak current 50A. For safety, Load recommended is (80%) 0~40A, 0~480W. Load for motor is (50%) 0~25A, 0~300W.
Note:
Cooling Fan has wind noise.
Keep a distance of more than 3m/10feet from the power amplifier to avoid filter interference.
Not applicable to: Programming/ Speed control motor/ Dimming light/ Grow light/ Power controller /for battery charging.
How to choose:
If running 24*7 hours, the load does not exceed 40%.
For device, SMPS power >= device power x 1.25 times. For Motor device, the peak power of the SMPS needs to be more than 2 times the power of the Motor.
Main Parameter
Output voltage adjustment range: +-5%
Range Of Difference: +-1%
Efficiency: >83%
Leakage current: <1mA / 230V
Input voltage: AC 110V (85-145V ) / 220V(185-265V)
When AC 85-145V, Frequency 60Hz, Efficiency >80%
When AC 185-265V, Frequency 50Hz, Efficiency >70%
Please switch to a suitable voltage before use!
[Failure caused by overload or used for battery will lose the warranty. ]
Strong cooling fan, Smart Chips
Transparent cover: Dustproof, Prevent accidental touch
Large Capacity, Moderate Dielectric Strength, High ESR.
High quality EMI filter inductor made of copper: Low loss, high efficiency, good heat dissipation, stability.
PROTECTION:
Overload / Overvoltage / Overcurrent / Short-circuit protection: When the output terminal is short-circuited, pause output
Package contains:
1 x POWER SUPPLY
1 x USER MANUAL
Download the multilingual User Manual from "Product Guides and Documentation"
Power multiple devices with different Currents/ Watts
Model example for S-600-12: Single voltage output, output voltage DC 12V, rated output power 600w, Peak current 50A. For safety, Load recommended is (80%) 0~40A, 0~480W. Load for motor is (50%) 0~25A, 0~300W.
Note:
Cooling Fan has wind noise.
Keep a distance of more than 3m/10feet from the power amplifier to avoid filter interference.
Not applicable to: Programming/ Speed control motor/ Dimming light/ Grow light/ Power controller /for battery charging.
How to choose:
If running 24*7 hours, the load does not exceed 40%.
For device, SMPS power >= device power x 1.25 times. For Motor device, the peak power of the SMPS needs to be more than 2 times the power of the Motor.
Main Parameter
Output voltage adjustment range: +-5%
Range Of Difference: +-1%
Efficiency: >83%
Leakage current: <1mA / 230V
Input voltage: AC 110V (85-145V ) / 220V(185-265V)
When AC 85-145V, Frequency 60Hz, Efficiency >80%
When AC 185-265V, Frequency 50Hz, Efficiency >70%
Please switch to a suitable voltage before use!
