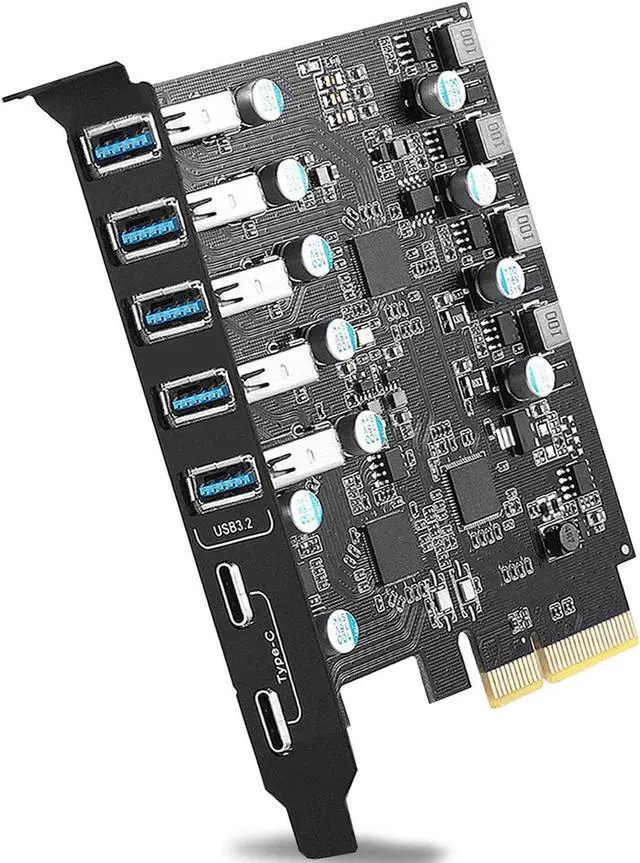

PCIe USB 3.2/3.1 Gen 2 Card SuperSpeed 10Gbps Bandwidth 7-Ports (2X USB-C - 5 Type A) Expansion Card USB C PC Card Internal Port hub for Windows 10/8/7 and Mac OS 4.1/5.1 Above

This PCIe USB card can be easily connected to the motherboard via the PCI Express (X4) interface, thereby instantly adding 7 USB 3.2 / 3.1 gen 2 downstream ports to your PC. This means you can connect multiple USB devices to your PC effortlessly. It is specially manufactured to provide faster and higher data transmission rates for pc case, consumer electronics and communication equipment.

Basic Parameters:

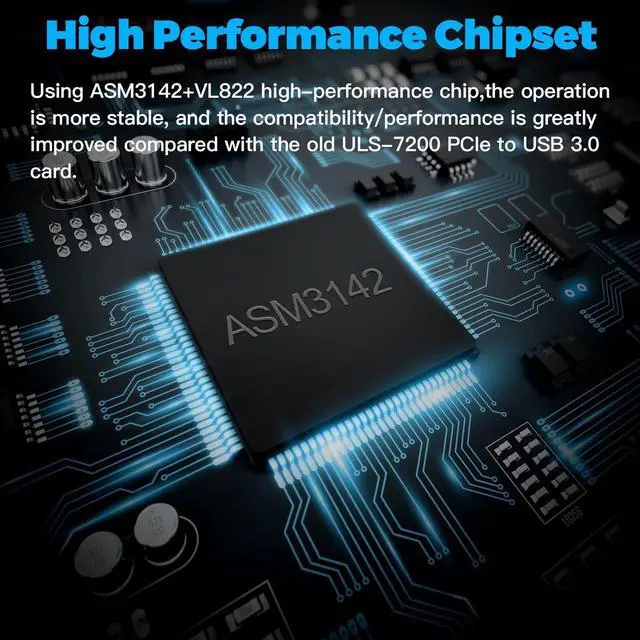

Chipset: ASM3142+VL820
Expansion port: 2 USB Type C, 5 USB A
Host interface: PCI Express (PCI-E 3.0 / 2.0 )
USB-A port output: 5V, 0.9A
USB-C port output: 5V, 3A

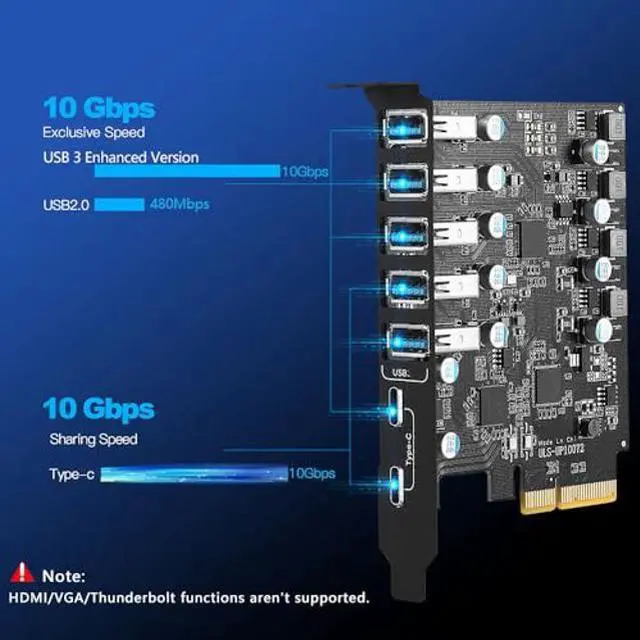

Data transfer rate: 10 Gbps max
What's in the box:
1 x USB 3.2 / 3.1 Gen 2 Card
1 x CD driver
Note:

1. Don't install this USB PCIe card while the computer is powered on.

2. This card has no video signal. Monitor, DisplayPort/Thunderbolt protocols are not supported.


3. If the card doesn't work, first check the PCI-E slot on the motherboard for problems.

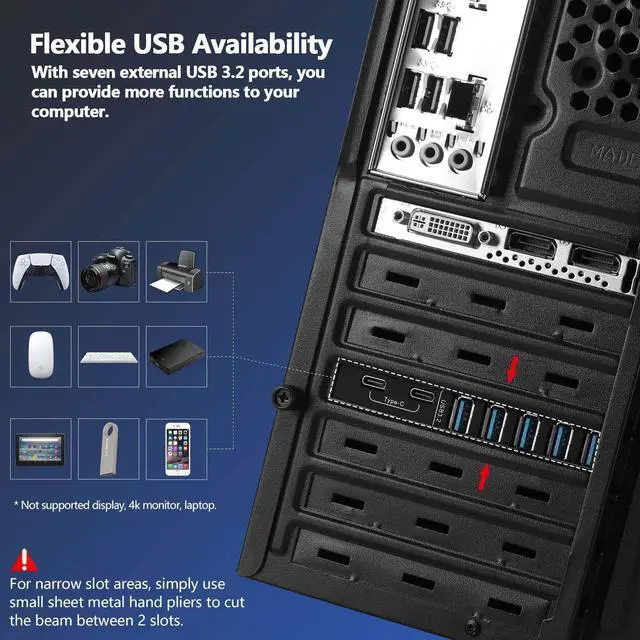

4. Only applicable to standard-size chassis/servers, not applicable to mini chassis/servers. The USB-A port is vertical. The vertical height is approximately 0.62 in. Please check the height of the expansion slot on the back of the computer host before choosing. For the USB A port it is recommended to: Take a USB cable (A end) and see if it will fit horizontally in the slot of your case. Then take the USB cable and insert it into the card so that it will center the ports.


5. The USB device/PCI-E slot version may have performance limitations on the throughput/performance of the card's data transfer speed.

6.
USB A-port Power Supply: 5V- 0.9A; USB-C port
Supply: 5V-3A, only for low-power USB devices.


7. If there are any problems with the installation of the PCIe card or system compatibility issues, let me konw.
