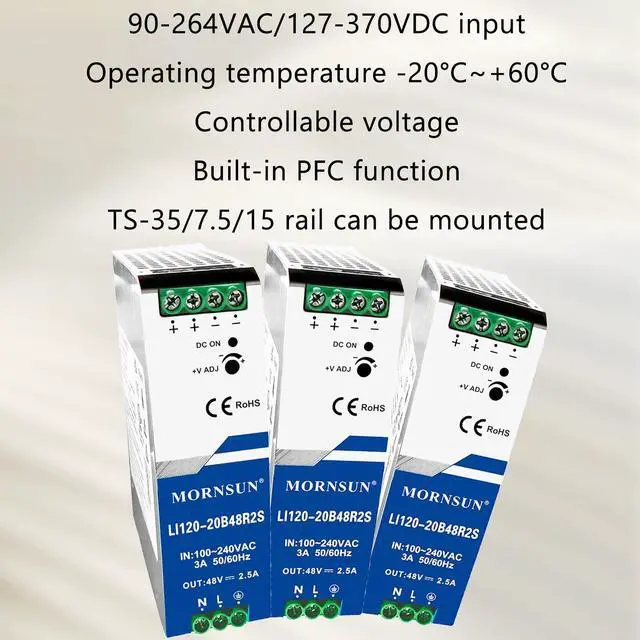

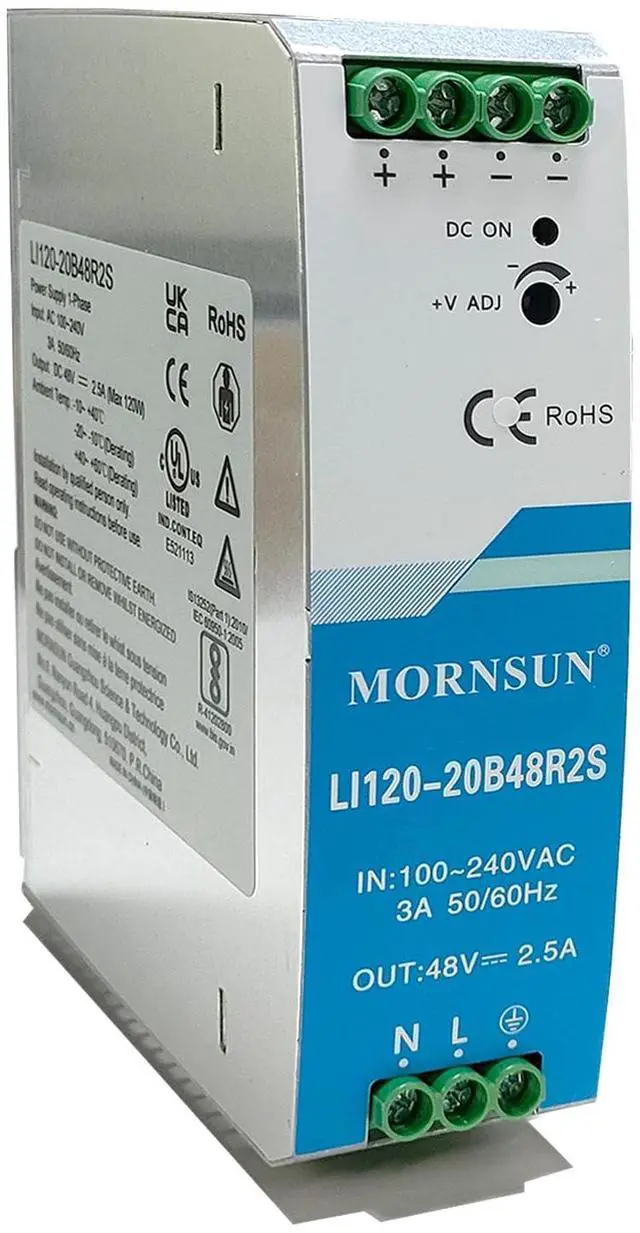

Centopto 120W 48V 2.5A Industrial DIN Rail Power Supply, AC-DC Universal,-20~+60
- : More compatible, wider application range,90-264VAC/127-370VDC.
- :Operating temperature -20~+60, 4000VAC high isolation voltage, overload protection system.
- : The voltage between 48- 53V controllable input AC-DC voltage of the same terminal, better control is more satisfactory.
- - : Can improve energy efficiency, reduce energy consumption, reduce grid pollution, increase security.
- :TS-35/7.5/15 rail can be mounted, saving space, suitable for small chassis and narrow space installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
Centopto 120w din rail power supply is a green power supply that is widely used in industrial control equipment, machines and other harsh environments. It has high stability and high anti-interference, small size, light weight, compact structure and good EMC performance. Low ripple noise, output short circuit, over current, overvoltage, over temperature protection. Add it to your shopping cart now!
Features
Wide input voltage range: 90-264VAC / 127-370VDC
AC/DC (same terminal input voltage)
Operating temperature range: -20 to +60
4000VAC High isolation voltage
Low ripple noise
Output short circuit, over current, over voltage, over temperature protection
Can be installed on the TS-35/ 7.5 /15
Suitable for 2000m altitude applications
Overvoltage Class III (according to EN61558)
Small size: suitable for small chassis and narrow space installation
Conforms to UL61010, UL508, EN61558, etc

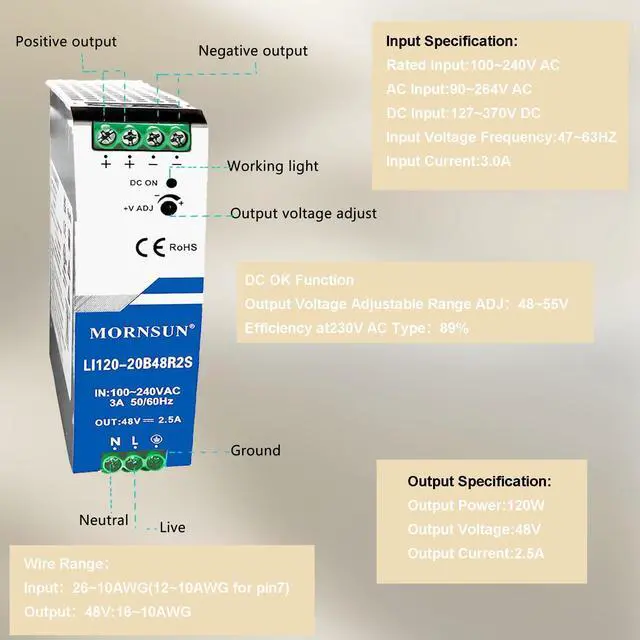

Specification
Input voltage range: 90-264VAC /127-370VDC
Input voltage frequency: 47-63HZ
Operating temperature: -20--60
Storage temperature: -40--85
Shell material: Metal
Package size: 36*125*100mm
Weight: 410g
Centopto 120w din rail power supply is a green power supply that is widely used in industrial control equipment, machines and other harsh environments. It has high stability and high anti-interference, small size, light weight, compact structure and good EMC performance. Low ripple noise, output short circuit, over current, overvoltage, over temperature protection. Add it to your shopping cart now!
Features
Wide input voltage range: 90-264VAC / 127-370VDC
AC/DC (same terminal input voltage)
Operating temperature range: -20 to +60
4000VAC High isolation voltage
Low ripple noise
Output short circuit, over current, over voltage, over temperature protection
Can be installed on the TS-35/ 7.5 /15
Suitable for 2000m altitude applications
Overvoltage Class III (according to EN61558)
Small size: suitable for small chassis and narrow space installation
Conforms to UL61010, UL508, EN61558, etc
Specification
Input voltage range: 90-264VAC /127-370VDC
Input voltage frequency: 47-63HZ
Operating temperature: -20--60
Storage temperature: -40--85
Shell material: Metal
Package size: 36*125*100mm
Weight: 410g
