VSDISPLAY MI DVI VGA Audio Controller Board M.NT68676.3 Work for 15.6'' 17.3" 1600x900 LP156WD1-TLB1 LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 LVDS 40 Pin WLED LCD Screen

Compatible Work With:

14inch 1600x900:
B140RTN 01.0 B140RW01 V. 0 N140FGE-L31 LP140WD2 B140RTN 02.1 B140RTN 02.2
N140O6 B140RW02 N140FGE-L31
15.6 inch 1600x900:
LP156WD1-TLB1 LP156WD1-TLA1 LP156WD1-TLB2 LP156WD1-TLD1 LP156WD1-TLD3 LP156WD1-TLD2 LP156WD1-TLB3 LP156WD1-TLA2 LP156WD1-TLD5 LP156WD1-TLB4
(Please Note This Controller Board Will Not Work for The LP156WD1-TPB1 LCD Due to The Signal Interface Type is Different. )
B156RW01 LTN156KT02 N1156O6-L01 N1156O6-L02
17.3 inch 1600x900:
LP173WD1 TLXX B173RW01 N173FGE-L21 LTN173KT01-A01

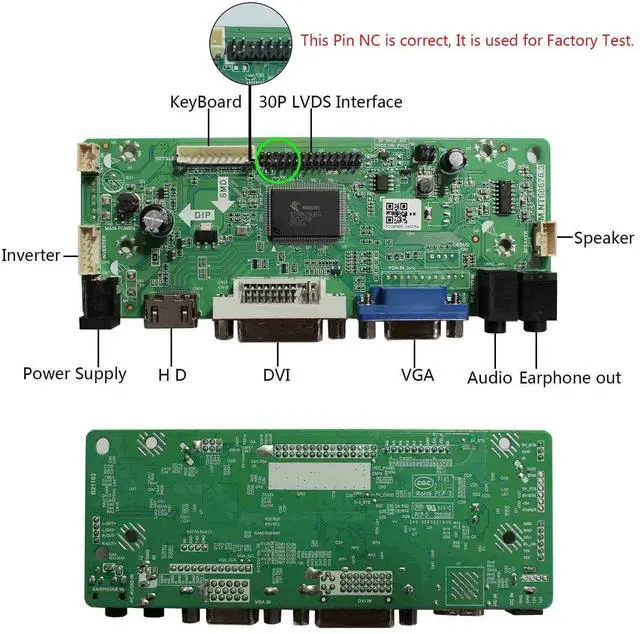

LCD Controller Board:

DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
The Controller Board Must be Insulated. PLease Do Not Place It on Metal or Conductors to Avoid Short Circuits.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
Audio Input:
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 139mm x 53mm x 17mm

Packing list:

1× VGA DVI LCD Controller Board M. NT 68676.3 (new version)
1× 40Pin Signal Cable
1× Keyboard With Cable
