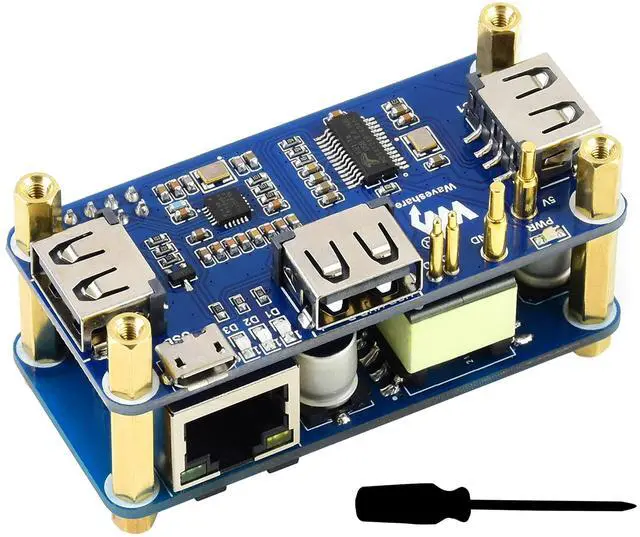

Bicool Power Over Ethernet (PoE) Ethernet/USB HUB HAT for Raspberry Pi Zero/Zero W/Zero WH, 3X USB 2.0 Ports, RJ45 Ethernet Port 802.3af-Compliant
- PoE Ethernet (Power over Ethernet) / USB HUB HAT for Raspberry Pi Zero / Zero W / Zero WH,802.3af-compliant
- By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports.

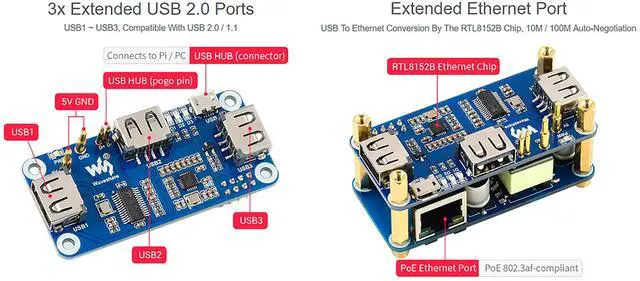

- 3x extended USB 2.0 ports, compatible with USB 2.0 / 1.1.
- Extended Ethernet port: Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
- 5.Fully isolated SMPS (Switch Mode Power Supply)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

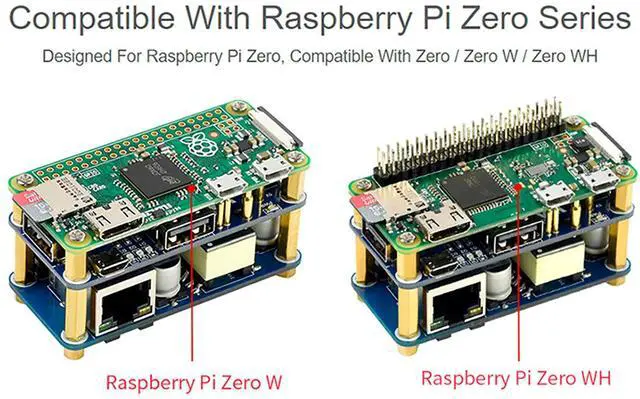

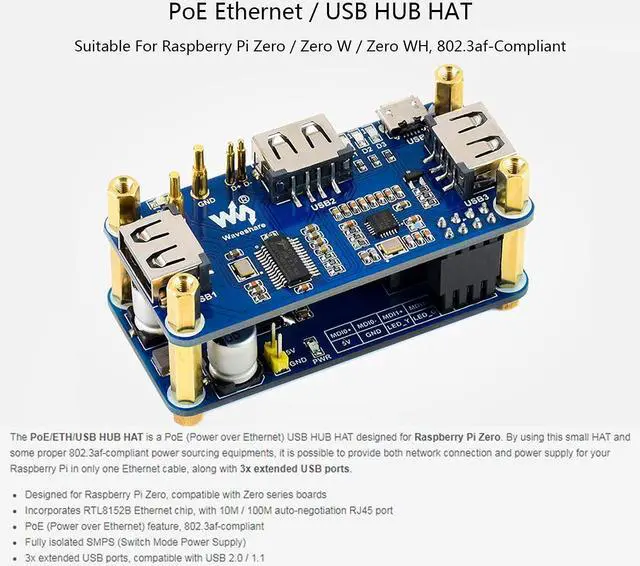

PoE Ethernet / USB HUB HAT for Raspberry Pi Zero series boards, 3x USB 2.0 Ports, 802.3 af-compliant Overview The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero / Zero W / Zero WH. By using this small HAT and some proper 802.3 af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports. Features Designed for Raspberry Pi Zero Series Board, compatible with Raspberry Pi Zero / Zero W / Zero WH Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port PoE (Power over Ethernet) feature, 802.3 af-compliant Fully isolated SMPS (Switch Mode Power Supply) 3x extended USB 2.0 ports, compatible with USB 2.0 / 1.1
Specifications POE power input: 37V ~ 57V DC in
Power Output: 5V 2.5A DC out
Network standard: IEEE 802.3 af-compliant

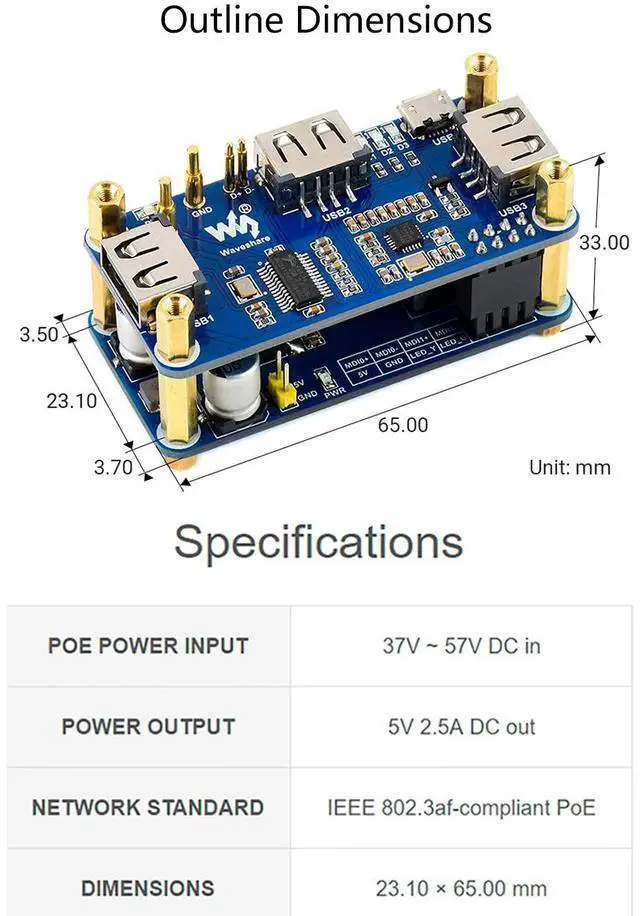

PoE Dimensions: 23.10 × 65.00 mm
Specifications POE power input: 37V ~ 57V DC in
Power Output: 5V 2.5A DC out
Network standard: IEEE 802.3 af-compliant
PoE Dimensions: 23.10 × 65.00 mm
