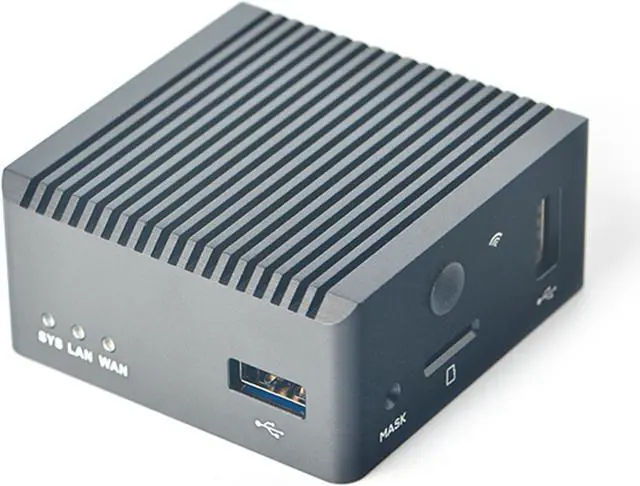

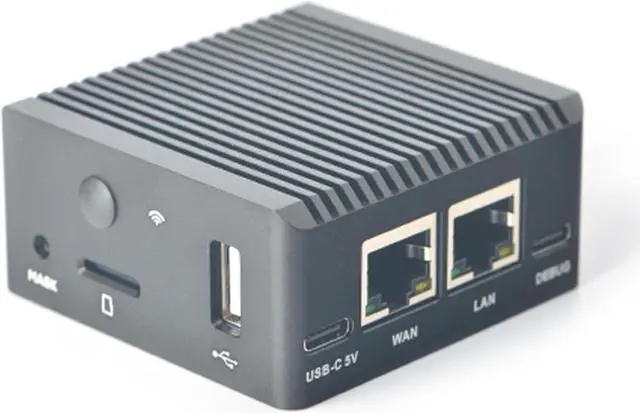

Nanopi R2S Plus Wireless WiFi Computer Router OpenWRT, Rockchip RK3328 Soc ,DDR4 1GB RAM 32GB eMMC, with Dual Gbps Ethernet M.2 WiFi Module Slot for Smart Home Office Gateway, Support Debian Ubuntu

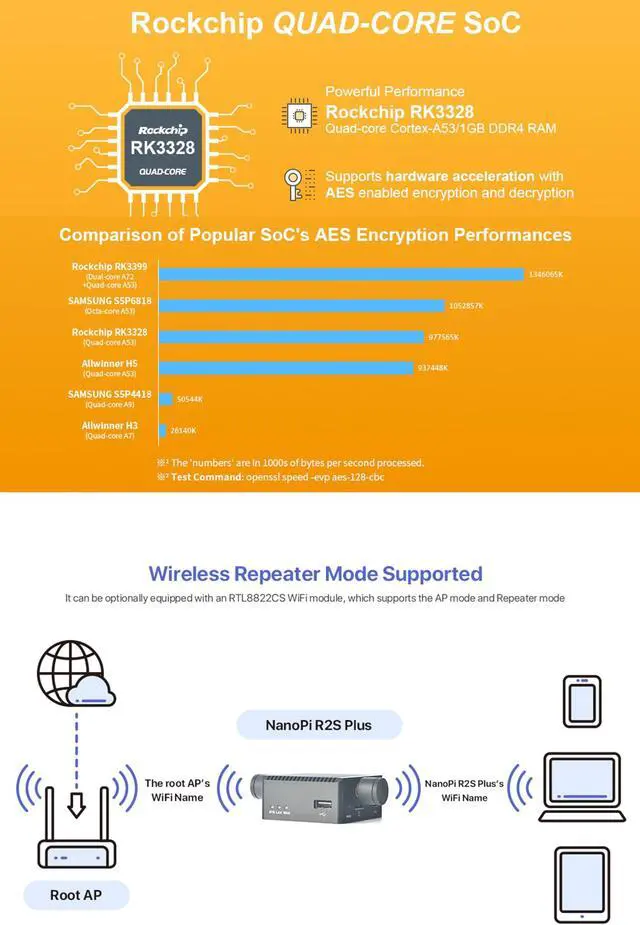

The NanoPi R2S PLUS is a wireless mini wifi router with edge-computing and dual Gbps Ethernet ports. It uses Rockchip's quad-core A53 RK3328 SoC with powerful performance.

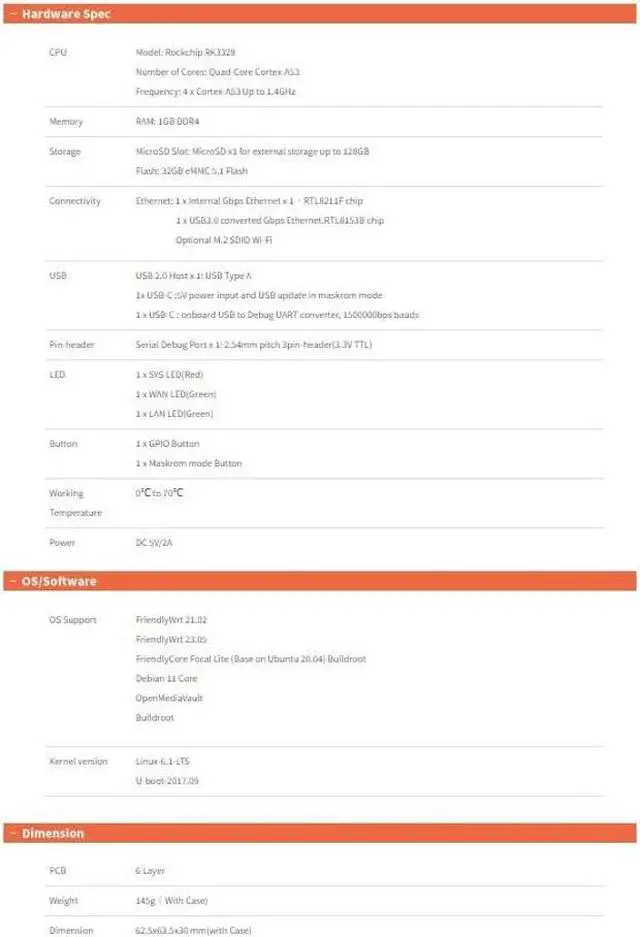

-Specification-
CPU: Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GH z
Memory 1GB DDR4 RAM
Storage: 32GB eMMC 5.1 Flash,
MicroSD x1 for external storage up to 128GB
Connectivity
Ethernet: 1 x Internal Gbps Ethernet x 1, RTL8211F chip
1 x USB 3.0 converted Gbps Ethernet, RTL8153B chip
Optional M. 2 SDIO Wi-Fi
USB: USB 2.0 Host x 1: USB Type A
1x USB-C: 5V power input and USB update in maskrom mode
1 x USB-C: onboard USB to Debug UART converter, 1500000bps bauds
Pin-header: Serial Debug Port x 1: 2. 54mm pitch 3pin-header( 3.3V TTL)
LED: 1 x SYS LED (Red), 1 x WAN LED (Green), 1 x LAN LED (Green)
Button: 1 x GPIO Button, 1 x Maskrom mode Button
Working Temperature 0 to 70
Power: DC 5V/2A
PCB: 6 Layer
Weight: 145gWith Case)
Dimension: 62.5 mm x 63.5 mm x 30mm (with Case)
-OS Support-
FriendlyWrt 21.02, FriendlyWrt 23.05
FriendlyCore Focal Lite (Base on Ubuntu 20.04 ) Buildroot
Debian 11 Core
OpenMediaVault
Buildroot
Kernel version: Linux- 6.1 -LTS, U-boot- 2017.09
-Package Content-
NanoPi R2S Plus Mini Wifi Router x1
-Technical Support- Wiki: "wiki. friendlyelec. com/wiki/index. php/NanoPi_R2S_Plus".
Getting Started: "wiki. friendlyelec. com/wiki/index. php/NanoPi_R2S_Plus#Get_Started". Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#-@, &-
. )" or skype: monica_9122.
