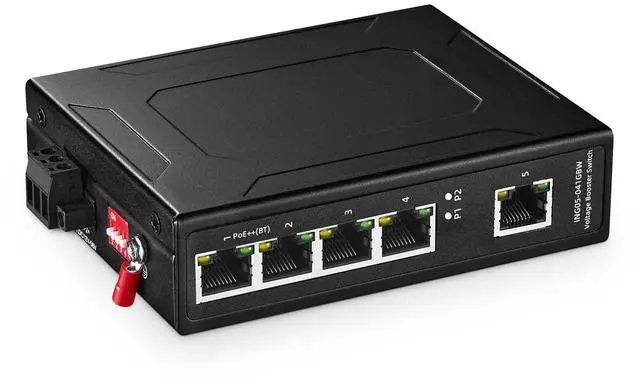

Main image of Industrial 5 Port Gigabit Solar POE Switch, 1 BT 60W PoE Port, Input DC 9V-57V to DC 48V Voltage Booster, IEEE802.3af/at/bt, Din Rail Wallmount Unmanaged Fanless IP40 Switch

Alt view image 2 of 5 - Industrial 5 Port Gigabit Solar POE Switch, 1 BT 60W PoE Port, Input DC 9V-57V to DC 48V Voltage Booster, IEEE802.3af/at/bt, Din Rail Wallmount Unmanaged Fanless IP40 Switch

Alt view image 3 of 5 - Industrial 5 Port Gigabit Solar POE Switch, 1 BT 60W PoE Port, Input DC 9V-57V to DC 48V Voltage Booster, IEEE802.3af/at/bt, Din Rail Wallmount Unmanaged Fanless IP40 Switch

Alt view image 4 of 5 - Industrial 5 Port Gigabit Solar POE Switch, 1 BT 60W PoE Port, Input DC 9V-57V to DC 48V Voltage Booster, IEEE802.3af/at/bt, Din Rail Wallmount Unmanaged Fanless IP40 Switch

Alt view image 5 of 5 - Industrial 5 Port Gigabit Solar POE Switch, 1 BT 60W PoE Port, Input DC 9V-57V to DC 48V Voltage Booster, IEEE802.3af/at/bt, Din Rail Wallmount Unmanaged Fanless IP40 Switch

Shop All Bolton Technical Products | Visit StarDragon Store

Industrial 5 Port Gigabit Solar POE Switch, 1 BT 60W PoE Port, Input DC 9V-57V to DC 48V Voltage Booster, IEEE802.3af/at/bt, Din Rail Wallmount Unmanaged Fanless IP40 Switch

5 GE PortsThis mini din rail switch include 5 gigabit ethernet ports, all support 10/100/1000Mbps adaptive. 10Gbps switching capacity with better performance. Plug and play, directly connected to the peer device, no need to configure the port

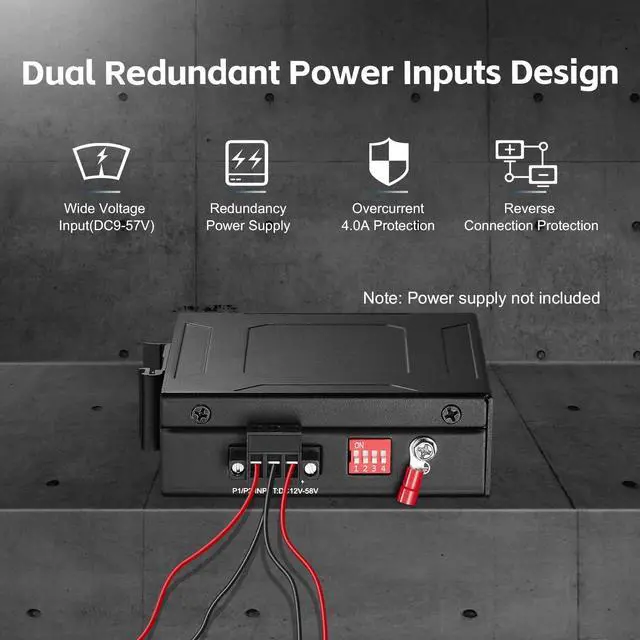

DC9V~57V POE Voltage BoosterSupport DC voltage 9V-57V, 2 power inputs P1 and P2 redundant, automatic fault switching, include phoenix terminal, can be connected to a solar power supply or 12V battery. Output IEEE802.3af/at/bt POE 48V with built-in voltage booster. Total POE budget 120W (DC48V input),120W(DC24V input) or 60W (DC12V input).

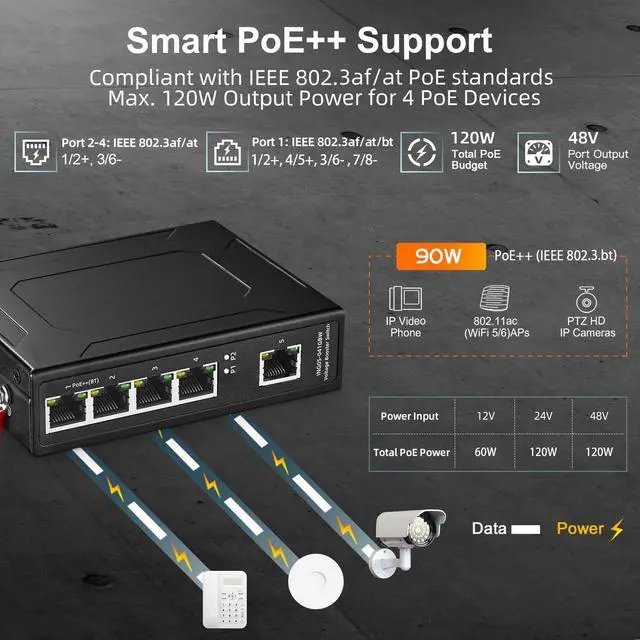

IEEE802.3af/at/bt PoEThe poe ports 1 support IEEE802.3af/at/bt, max power 60W, PoE pin: 1/2 (+),4/5 (+), 3/6 (-),7/8 (-). poe ports 2-4 support IEEE802.3af/at, max power 30W, PoE pin: 1/2 (+),3/6 (-).Please note that passive 24v poe is not supported. **Default without power supply**
Industrial IP40Using sturdy aluminum alloy case and industrial grade electronic components, working tempe
