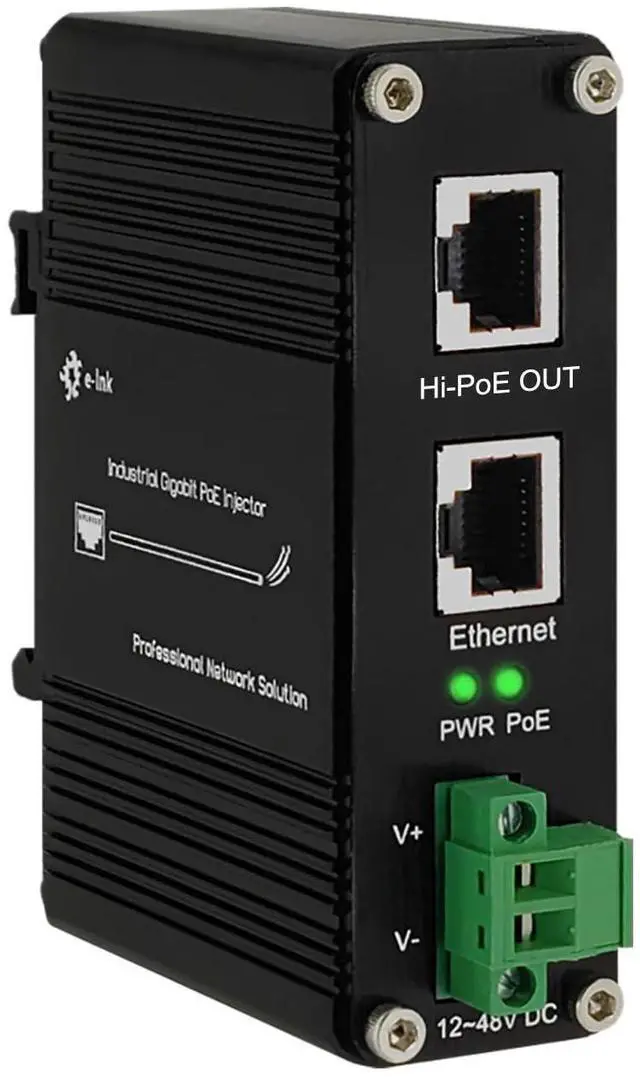

Gigabit Hi-PoE Injector - Industrial Gigabit PoE+ Injector IEEE802.3af/at 60W Hardened POE Adapter with 12-48V DC Input DIN- Rail, Wall Mount, Aluminum Alloy Metal Housing
- - Compatible with 10/100/1000 Base-T, suitable for high-bandwidth applications.
- ./ Delivers reliable and efficient Power over Ethernet for a wide range of compatible devices.
- ~ Accepts 12~48V DC via 2-pin terminal block for flexible power supply options in different installations.
- - & - Offers versatile mounting options for convenient deployment in various industrial and commercial environments.
- - Operates in extreme temperatures from -40 to 80 (-40 to 176) and features 6KV lightning protection for use in harsh outdoor or industrial conditions.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
The Elenzk EK-001-60W is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000M Base-T and are compliant with IEEE 802.3 ab. The PoE Out port is also compliant with IEEE 802.3 at.
EK-001-60W provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Features:
-- 12~48VDC Power Input;
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power);

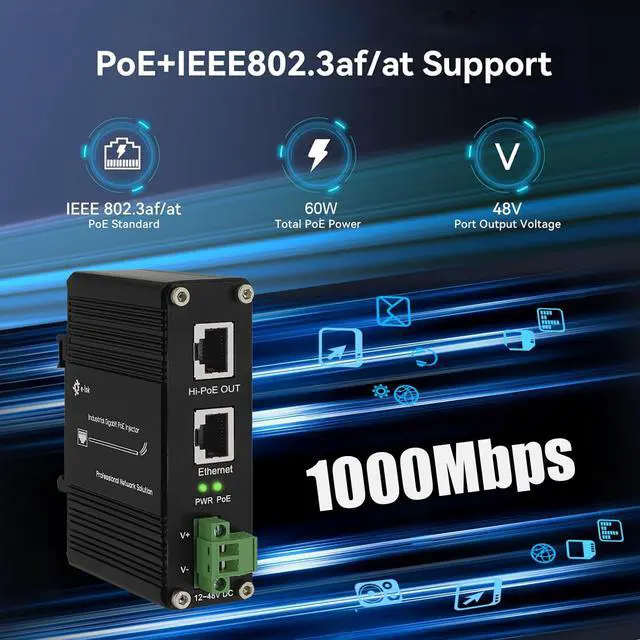

-- Support IEEE 802.3 af/at Power over Ethernet (PoE+) Power Sourcing Equipment;
-- Support 10/100/1000 Base-TX;
-- Cabling: Cat6 or above
-- Maximum Distance: Cat7 UTP up to 30m
-- Power Pin Assignment: 4/5(+), 7/8(-);
-- Support DIN-Rail & Wall-Mount installation;
-- Extensive LED indicators for PoE diagnostics;
-- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature;

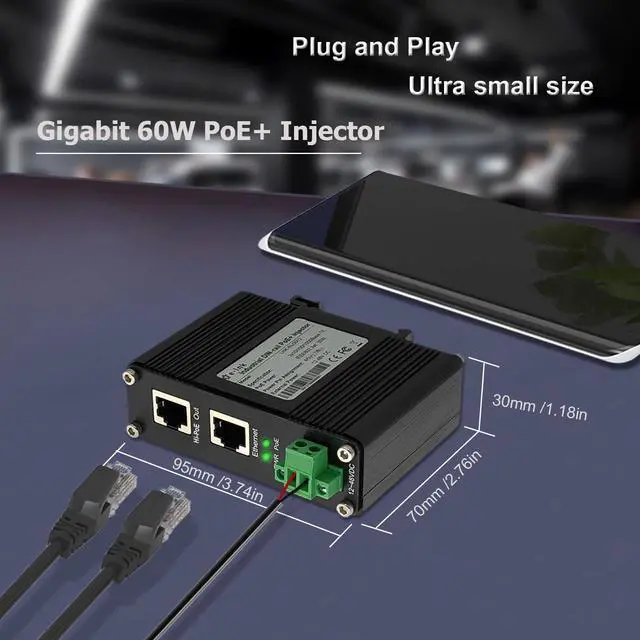

-- Dimensions (WxDxH): 95*70*30 mm ( 3.74 * 2.76 * 1.18 inches);
-- Weight: 0.25K g ( 0.55I b);
-- Casing: Aluminum Case;
-- Warranty: 5-Year Warranty.
Package:
1 * EK-001 60W PoE Injector
1 * POE injector User Manual
1 * L-Shaped Wall Mount bracket
The Elenzk EK-001-60W is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000M Base-T and are compliant with IEEE 802.3 ab. The PoE Out port is also compliant with IEEE 802.3 at.
EK-001-60W provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Features:
-- 12~48VDC Power Input;
-- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power);
-- Support IEEE 802.3 af/at Power over Ethernet (PoE+) Power Sourcing Equipment;
-- Support 10/100/1000 Base-TX;
-- Cabling: Cat6 or above
-- Maximum Distance: Cat7 UTP up to 30m
-- Power Pin Assignment: 4/5(+), 7/8(-);
-- Support DIN-Rail & Wall-Mount installation;
-- Extensive LED indicators for PoE diagnostics;
-- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature;
-- Dimensions (WxDxH): 95*70*30 mm ( 3.74 * 2.76 * 1.18 inches);
-- Weight: 0.25K g ( 0.55I b);
-- Casing: Aluminum Case;
-- Warranty: 5-Year Warranty.
Package:
1 * EK-001 60W PoE Injector
1 * POE injector User Manual
1 * L-Shaped Wall Mount bracket
