Feanteek TTL-232RG-VSW5V-WE USB to TTL Serial Cable with 5V Output,with FTDI Chip, Wire Ends for Arduino, Raspberry Pi, ESP32 Projects

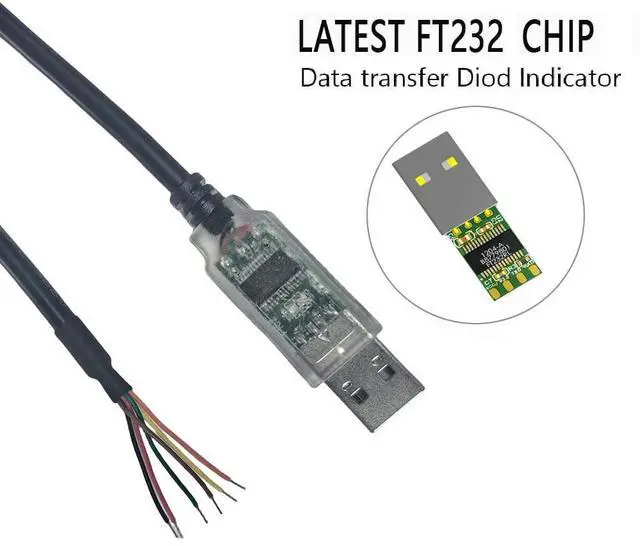

- On board FT232RQProvides single chip USB to asynchronous serial data transfer interface, Features genuine FT232RQ chip technology, ensuring stable drivers and seamless plug-and-play operation on Windows, Mac OS, and Linux systems.
- The VCC power output signal (RED wire) is 5.0V. The source of 5.0V is the USB VBUS input, which is switched onto the power output signal. At the time of releasing these cables, this cable was not available.

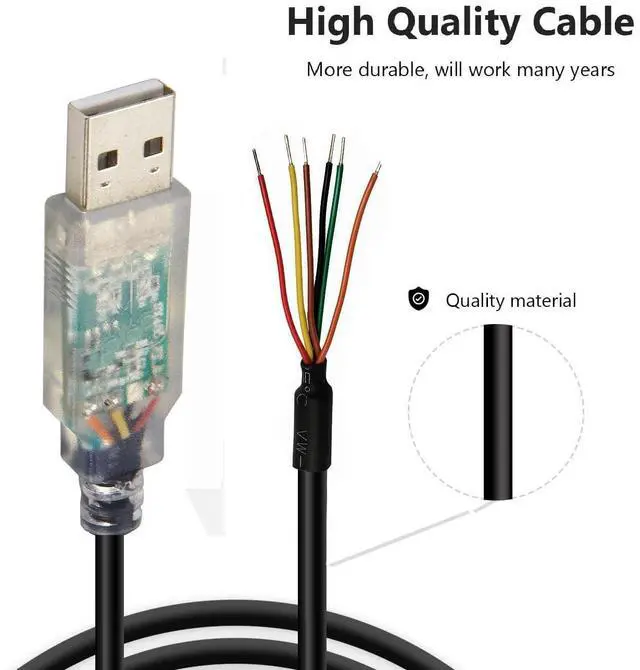

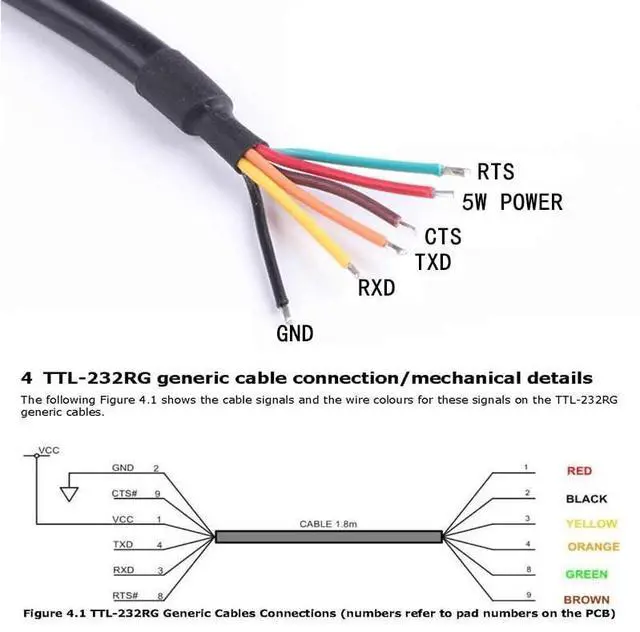

- Integrated Design & Color-Coded WiresInternal EEPROM with user writeable area,6 way outputs provide TXD, RXD, RTS#, CTS#, VCC and GND.
- Ideal for Embedded Development & Debugging Perfect for firmware flashing, serial communication, console access for routers/switches, and debugging projects,Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
- High Quality & Supported Use Cable can be used to accept IO voltage from application interface logic allowing users to supply IO voltage levels..-40C to +85C operating temperature range,Cable length
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
On board FT232RQProvides single chip USB to asynchronous serial data transfer interface, Features genuine FT232RQ chip technology, ensuring stable drivers and seamless plug-and-play operation on Windows, Mac OS, and Linux systems. ^^ The VCC power output signal (RED wire) is 5.0V. The source of 5.0V is the USB VBUS input, which is switched onto the power output signal. At the time of releasing these cables, this cable was not available. ^^ Integrated Design & Color-Coded WiresInternal EEPROM with user writeable area, 6 way outputs provide TXD, RXD, RTS#, CTS#, VCC and GND.
^^ Ideal for Embedded Development & Debugging Perfect for firmware flashing, serial communication, console access for routers/switches, and debugging projects, Data transfer rates from 300 baud to 3 Mbaud at TTL levels. ^^ High Quality & Supported Use Cable can be used to accept IO voltage from application interface logic allowing users to supply IO voltage levels.. -40C to +85C operating temperature range, Cable length is 1.80 m (6 feet)
^^ Ideal for Embedded Development & Debugging Perfect for firmware flashing, serial communication, console access for routers/switches, and debugging projects, Data transfer rates from 300 baud to 3 Mbaud at TTL levels. ^^ High Quality & Supported Use Cable can be used to accept IO voltage from application interface logic allowing users to supply IO voltage levels.. -40C to +85C operating temperature range, Cable length is 1.80 m (6 feet)
