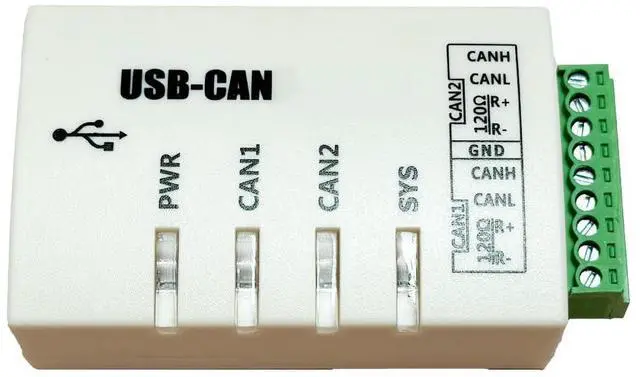

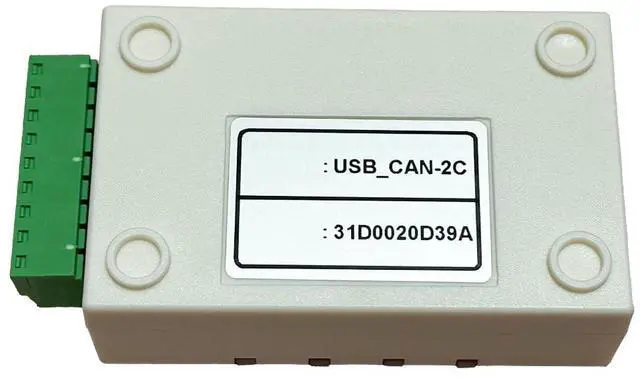

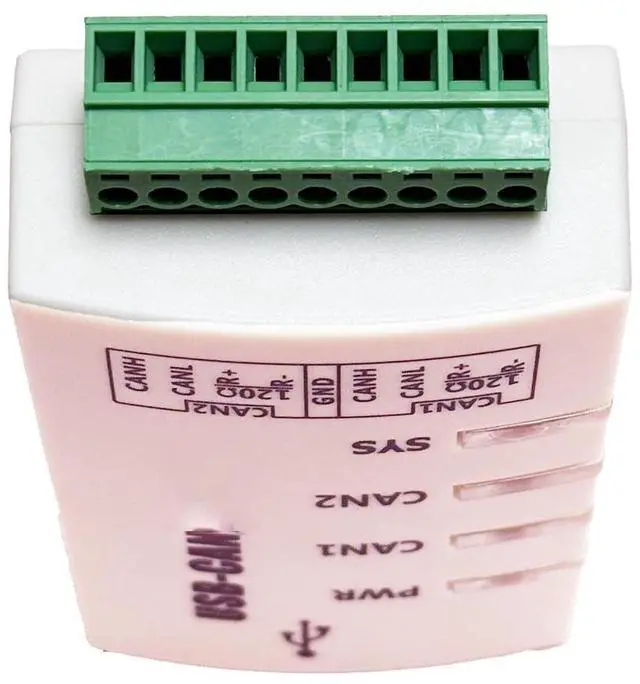

USB to CAN USBCAN-2C Dual-Channel Industrial-Grade Isolation Intelligent CAN Interface Card ZLG Compatible

USB to CAN bus protocol conversion. 2 CAN Interfaces Available. USB interface supports USB 2.0 and is compatible with USB 1.1. Supports CAN 2.0A and CAN 2.0B protocols, standard and extended frames. Supports bi-directional transmission, CAN transmit and CAN receive. Supports data frame, remote frame format. CAN controller baud rate is selectable between 10Kbps-1Mbps and can be configured by software. CAN bus interface adopts high-speed magnetic coupling isolation, isolated DC-DC power supply; two-end isolation (USB bus and CAN bus isolation, no isolation between CAN1 and CAN2).

Supports relay function, transparent transmission function, no isolation between CAN1 and CAN2.
Traffic: Two CAN channels (when running simultaneously) reach 8500 frames/s for receiving and 8500 frames/s for transmitting respectively; (two channels receive 8500 frames/s at the same time, and the USB speed can reach a speed of 17000 frames/s without losing frames). USB bus direct power supply, no need for external power supply.
Isolation module insulation voltage: 2500V; (isolated between USB and CAN1, CAN2, not isolated between CAN1 and CAN2).
Operating temperature: -4085.

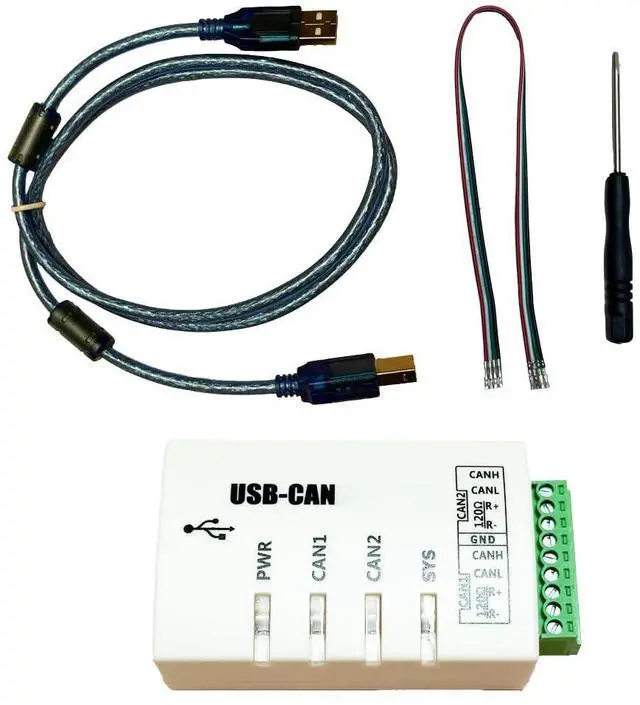

Case size: 78*45*25 mm. CAN bus configuration, transmission, and reception can be performed using the provided CAN Tools software. Users can also refer to the provided DLL dynamic connection library and VC/VB routines to write their own applications and develop CAN system software products. For secondary software development, there is no need to understand the complex USB interface communication protocol.
