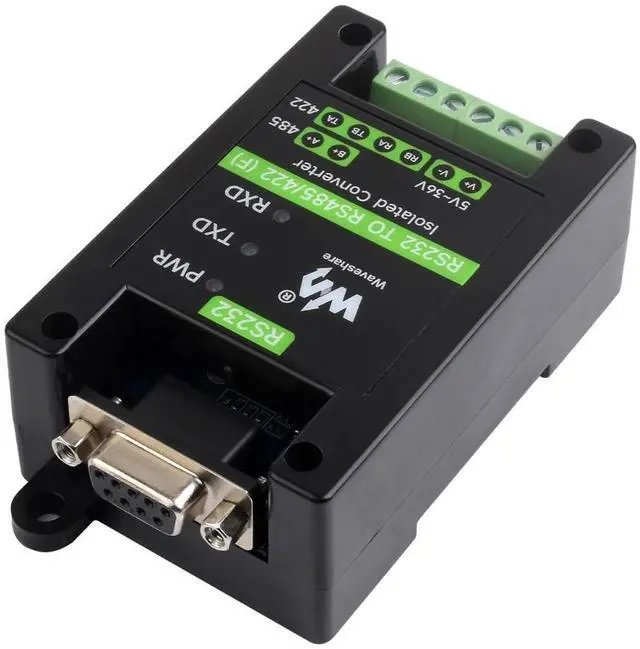

RS232 To RS485/422 Active Digital Isolated Converter Adapter, Original SP3232EEN and SP485EEN Chips, Transmission Distance up to 1.2km, Wall-Mount And Rail-Mount Support, RS232 DB9 Female Port

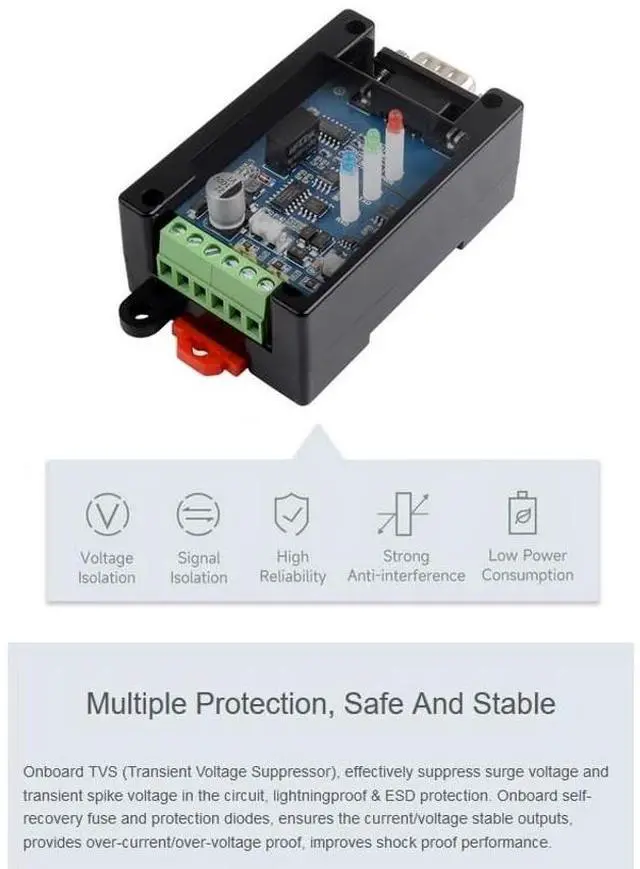

IntroductionRS232 TO RS485/422 (RS232 DB9 Female Port), an industrial grade RS232 to RS485/422 isolated converter, boasts industrial grade rail-mount case design and protection circuits such as the built-in power isolation, ADI magnetical isolation, and TVS diode. It is easy to operate RS232 TO RS485/422 as it features zero-delay automatic transmission conversion, faster communication speed, stability, reliability, and safety, which is applicable for scenarios with high communication requirements. FeaturesOnboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibilityStable transmission at the rate of 300~921600bpsOnboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminalOnboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumptionOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostaticOnboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performanceOnboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protectionOnboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumperOnboard power supply screw terminal, allows 5V~36V DC wide range input3 LEDs for indicating the power and transceiver statusIndustrial rail-mount ABS case design, small in size, easy to install, and cost-effective.

Wall-mount And Rail-Mount SupportComes with Online Tutorial and
Online Development Resource: n9. cl/gztqdPackage ContentRS232 TO RS485/422 (F) x1Screwdriver x1
