WOOKLEA JPC-12 Portable HF Antenna,7MHz-50MHz Full Band HF Vertical Antenna, 40m-6m 8 Bands, with Sliding Adjuster, Suitable for Amateur Radio and Outdoor Use (4.1 Meters)

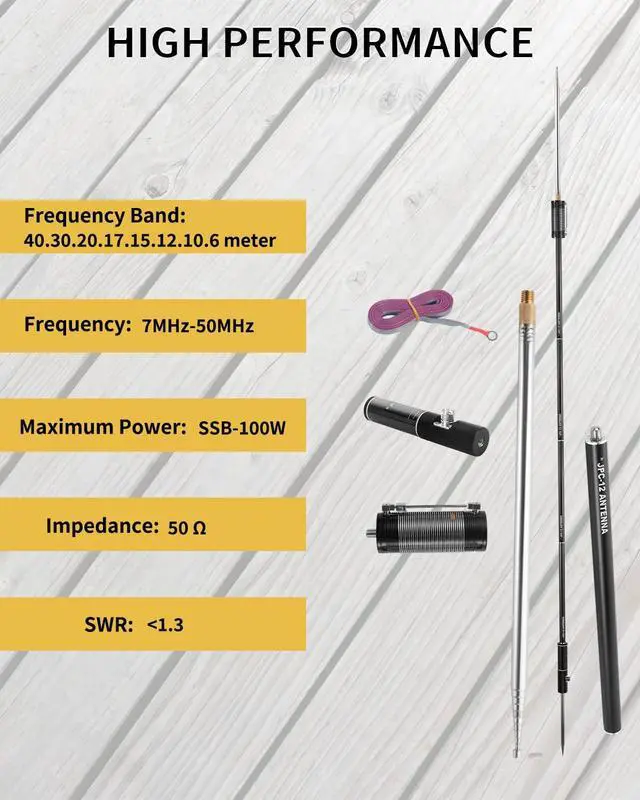

Performance Parameter:
Frequency: ham radio antennas can operate across 8 frequency bands, namely 40 meters, 30 meters, 20 meters, 17 meters, 15 meters, 12 meters, 10 meters, and 6 meters (7MHZ-50MHZ).
Standing Wave Ratio: On the 40 - meter band, the SWR is less than 1.3, while on other bands, it can be adjusted to 1.1, Impedance: 50 ^^

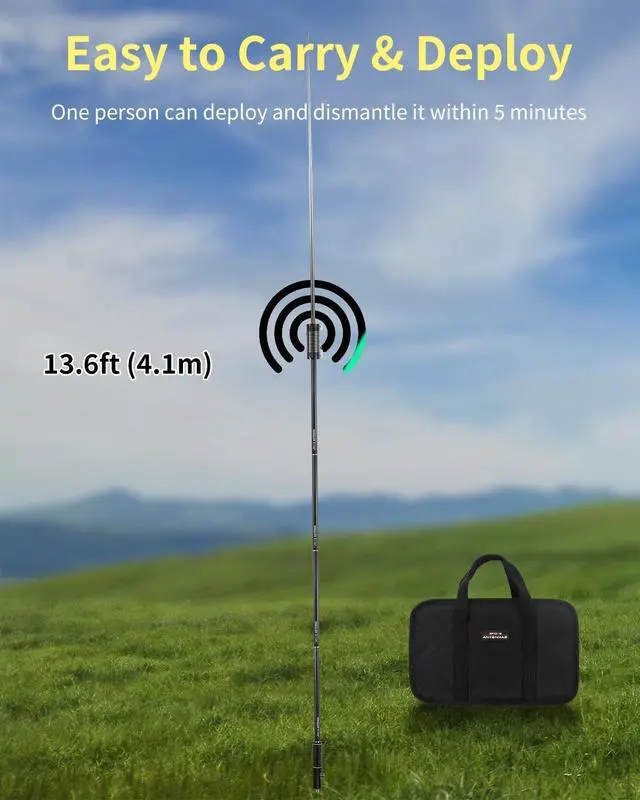

Portable HF Antenna: This hf antenna weighs only 3.09 pounds. Its dedicated flat pack measures just 13.58 inches in length. Thanks to its separable design, it's very portable. After installation, the multi band hf antenna is 13.45 feet long. Both installation and uninstallation are simple and quick, and can be completed by one person within 5 minutes. The jpc-12 portable antenna is a mini antenna designed for outdoor communications, making it suitable for outdoor activities, camping vacations, as well as POTA/SOTA use ^^

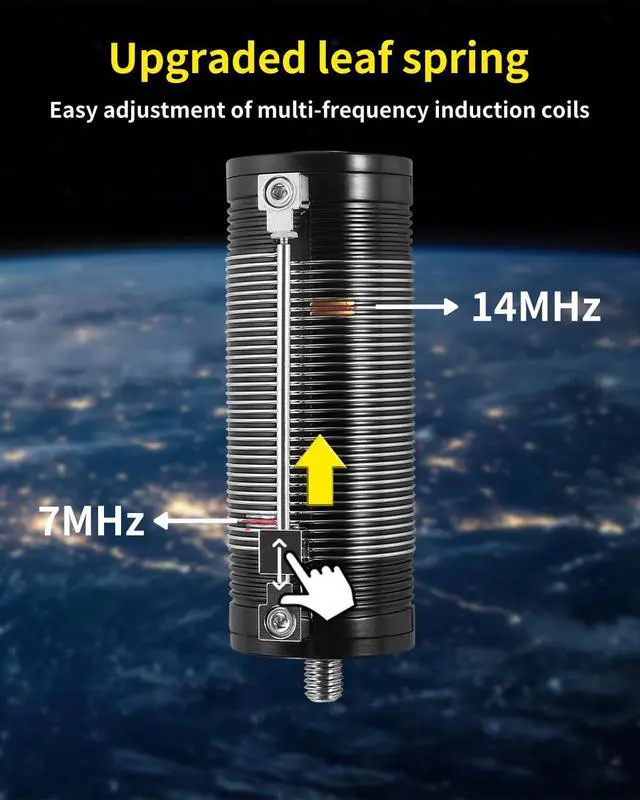

Performance Optimization: The hf vertical antenna, with an optimized induction coil, upgraded contact springs, and added grooves at contact points, ensures precise and reliable contact with the coil. The use of manganese steel enhances spring strength. The coil also has turn - number markings for the 40 - meter and 20 - meter bands. This allows for easier and quicker band setup even without an antenna analyzer ^^

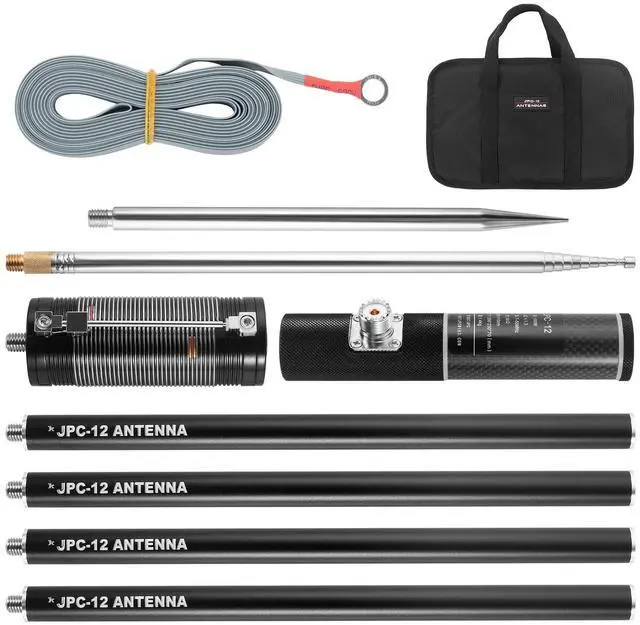

Packing List:
Features: Aluminum alloy base, 4 sections of 19320MM anodized aluminum tube, 10 - strand ground wire, 10240MM ground stakes, 2.5 - meter guyed antenna, and a dedicated cloth bag ^^ Easy to
Use: The JPC-12 amateur radio HF antenna, with its low standing wave ratio (SWR), efficient design, delivers outstanding performance and is the perfect choice for amateur radio enthusiasts. Designed specifically for transmitting and receiving HF and VHF radio signals, it is fully compatible with all amateur radio transceivers. Its optimized design ensures enhanced signal performance without the need for an analyzer or tuner ^^ The inductive coils of JPC-7 and JPC-12 are identical in design and function, so for production standardization, all these coils are uniformly marked with "JPC-7". This is not a packaging error or mismatched part.
