JuHXenWire USB-RS485-WE-1800-BT,USB to RS485 Wire End USB Connector 5000-BT UARTConverter 6P WE Six-Core Serial Cable (USB-RS485-WE-5000)

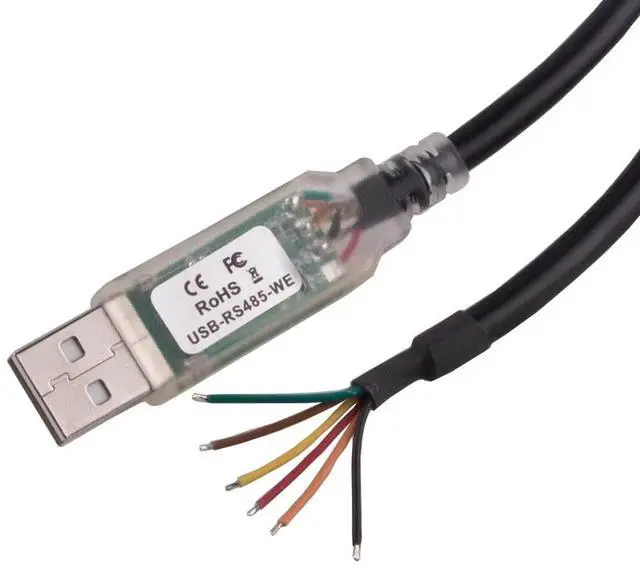

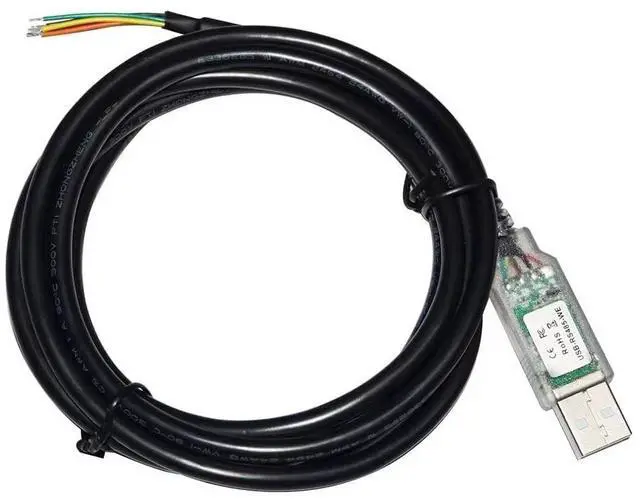

The USB-RS485-WE-1800/5000-BT_ 0.0 is a 1.8 m/5m long USB to RS485 converter cable. Using the FT232R chip combined with an RS485 level converter, the cable is CE, FCC and UKCA approved product which is one of the simplest USB RS485 solutions around. Powered from the USB port, the RS485 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs. The cable can be used with FT232 drivers to provide a virtual COM port on a PC which is capable of communication rates with RS485 units from 300 baud up to 3 MBaud.

Data RX and TX LEDs visible through transparent mouldingcable colour: blackFT232R chip USB-RS485-WE-1800-BT USB to RS485 6P WE six-core serial cable Communication cable USB-RS485 6P WE WIRE END OPEN six-core peeling cable DATA A+ DATA B- GND VCC 120R
OUTPUT SIGNAL: DATAA+ DATAB- GND VCC TERMINATOR 1
TERMINATOR 2Wire: UL2464 AWG24, UL certified wire, fire-resistant and flame-retardant, -40 ~80.
Outer Diameter (OD): 5.2 mm
Conductor: tinned copper, pure copper
Data Rates: 3MBaud
USB Speed: Full
Speed (12Mbps) Interfaces: UART
USB Connector: Type
A End Connector: Wire ended
Cable Length: 1.8 m/5m
Cable

Details

: 6 core, 5mm UL2464 24
AWG I/O Voltage: RS485
Virtual Com Port: Yes
Max Power Output: +5V / 250mA
Internal IC: FT232RPlease note that drivers will be installed automatically via Windows Update if connected to the internet.
