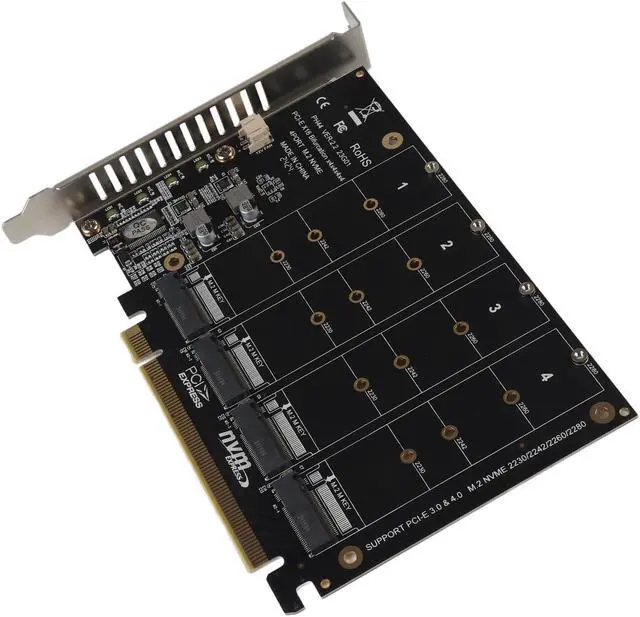

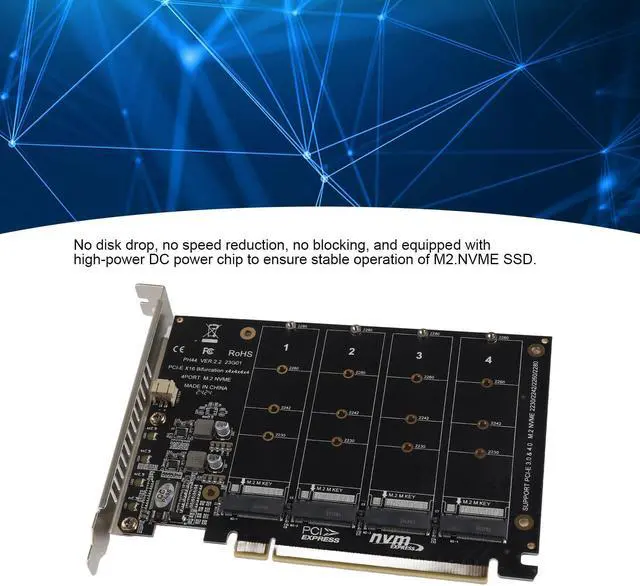

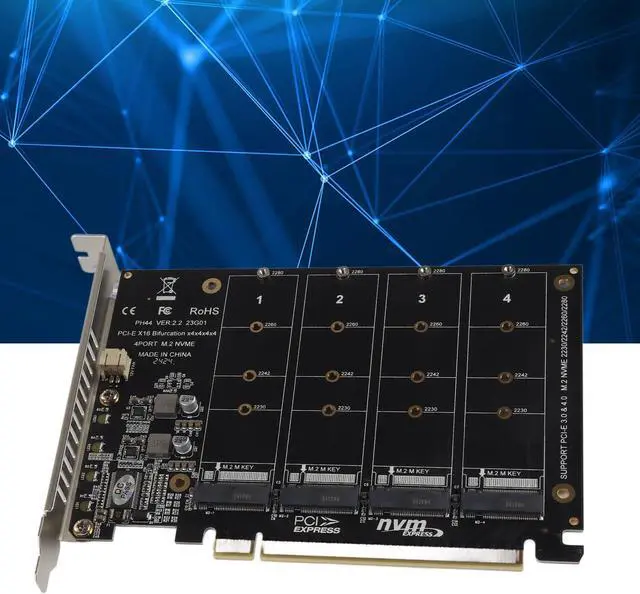

M2 NVMe SSD to PCIE X16 Adapter Card, 4 Port M Key Hard Drive Converter Reader Expansion Card with 4 LED Indicators, Supports PCIE 3.0, 4.0 Protocol(ph44)

How to
Use:
1.
Motherboard support:
The motherboard supports PCIE split function, which can be set to PCIE X4X4X4 or 4X4 mode. The motherboard supports PCI? E RAID function. For motherboard supports the function of HyperM. 2X16 expansion card.
For motherboards that support PCIE split, please refer to the following link
https: //www.. com/tw/support/FAQ/1037507
For ASRock motherboards that support PCIE split, please refer to the following link
https: //www. asrock. com/mb/spec/product. cn. asp? Model=ULTRA%20QUAD%20M. 2%20CARD#SupportList
Server motherboards, X299 and X399 motherboards have split function
2. CPU support is required, and the CPU must have enough channels. Generally, low? end CPUs do not have enough PCIE channels, so they may not be able to support it either. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice.

Specification:
Item Type: Adapter Card
Model: PH44
Support Hard Disk: M. 2 NVME Protocol SSD / M. 2 PCIE Equipment
Speed: 4 x 32Gbps

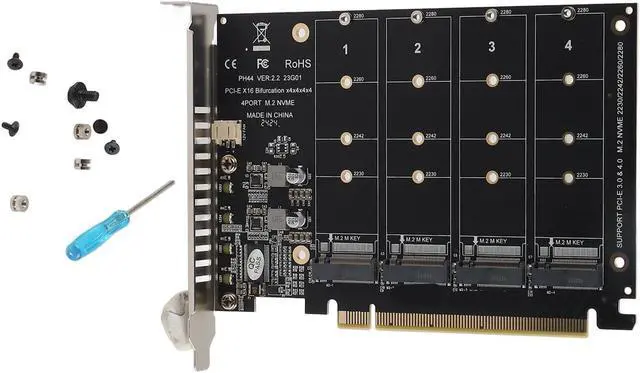

Package List:
1 x Adapter Card4 x Nuts
5 x Screws
1 x Screwdriver
