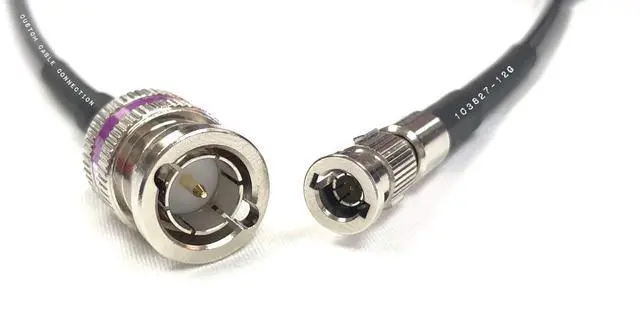

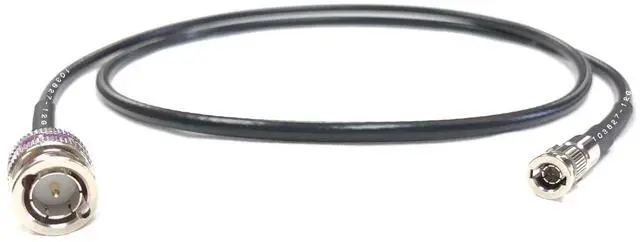

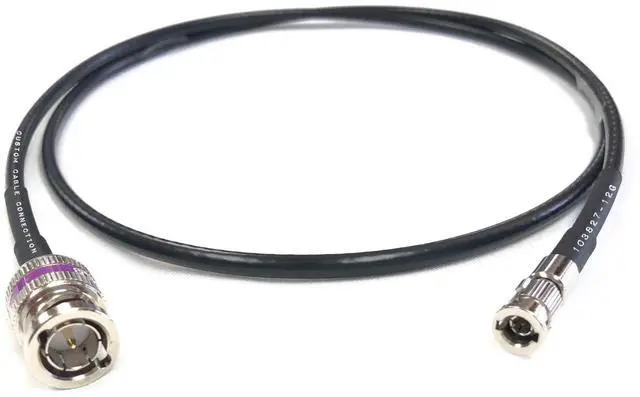

3 Foot Belden 4855R 12G Rated Standard BNC Male to High Density Micro BNC Male 3G/6G/12G HD-SDI Mini RG59 Video Adapter Cable by Custom Cable Connection
- COAXIAL MINI RG59 CABLE: The center conductor is made from true 75 Ohm 23AWG solid copper surrounded by an insulated layer of high-density polyethylene, and tubular conducting shield with an outer wire jacket. It is used as a transmission line for frequency signals.
- HD MICRO BNC: HD Micro BNC delivers true 75 Ohm performance in a footprint 51% SMALLER THAN TRADTIONAL BNC connectors allowing four times the density. This cable has a MALE True 75 Ohm Standard BNC and a MALE True 75 Ohm HD Micro BNC.
- PROFESSIONAL APPLICATIONS: Designed for professional broadcast applications in mind. Adapt your Standard BNC connections to High Density Micro BNC with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference.
- BELDEN 4855R: 12G rated, 23AWG, 75Ohm. This cable is 100% sweep tested and is ready to meet todays requirements of 12 Gbps data transfer. Supports SMPTE 259M/292M/424M Standards
- CU
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Belden 4855R 12G Rated Standard BNC Male to High Density Micro BNC cables are designed for professional broadcast applications. Adapt your Standard BNC connections to High Density Micro BNC with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. This cable is 100% sweep tested and is ready to meet todays requirements of 12 Gbps data transfer.

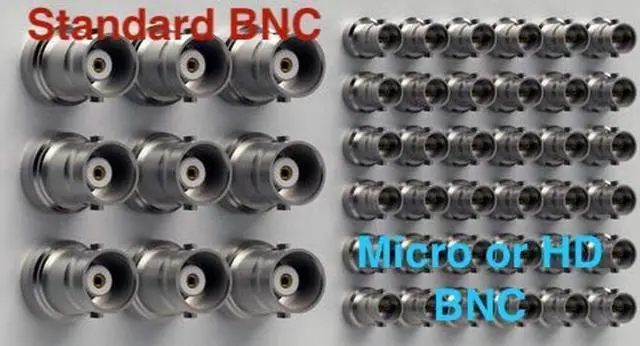

HD Micro BNC Delivers true 75 Ohm performance in a footprint 51% smaller than traditional BNC connectors allowing four times the density!
Made with Belden 4855R 12G Cable Supports SMPTE 259M/292M/424M Standards 12G, UHDTV1, UHDTV2

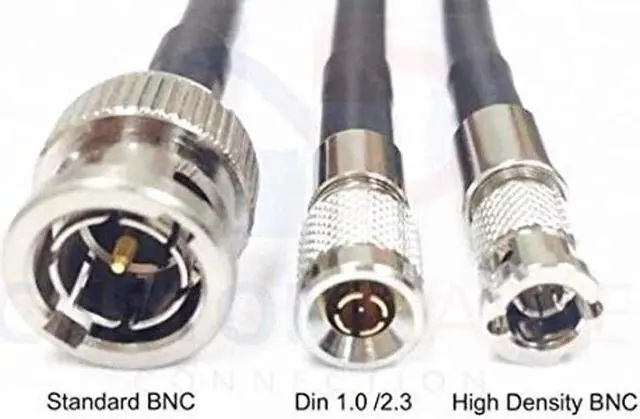

Connector A: True 75 Ohm Standard BNC Male Connector B: True 75 Ohm High Density Micro BNC Male Number of
Coax: 1
RG Type: Mini
RG59 AWG: 23
Stranding: Solid
Conductor Material: BC -
Bare Copper Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene Outer Shield Material Trade Name: Duofoil
Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.
At Custom Cable Connection, we are dedicated to providing you with the best audio, video, network, and RF electrical cables in the industry for the best price.
Not seeing the length you need? Contact us on our website and we can have it custom made for you; we call ourselves Custom Cable Connection for a reason!
HD Micro BNC Delivers true 75 Ohm performance in a footprint 51% smaller than traditional BNC connectors allowing four times the density!
Made with Belden 4855R 12G Cable Supports SMPTE 259M/292M/424M Standards 12G, UHDTV1, UHDTV2
Connector A: True 75 Ohm Standard BNC Male Connector B: True 75 Ohm High Density Micro BNC Male Number of
Coax: 1
RG Type: Mini
RG59 AWG: 23
Stranding: Solid
Conductor Material: BC -
Bare Copper Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene Outer Shield Material Trade Name: Duofoil
Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.
At Custom Cable Connection, we are dedicated to providing you with the best audio, video, network, and RF electrical cables in the industry for the best price.
Not seeing the length you need? Contact us on our website and we can have it custom made for you; we call ourselves Custom Cable Connection for a reason!
