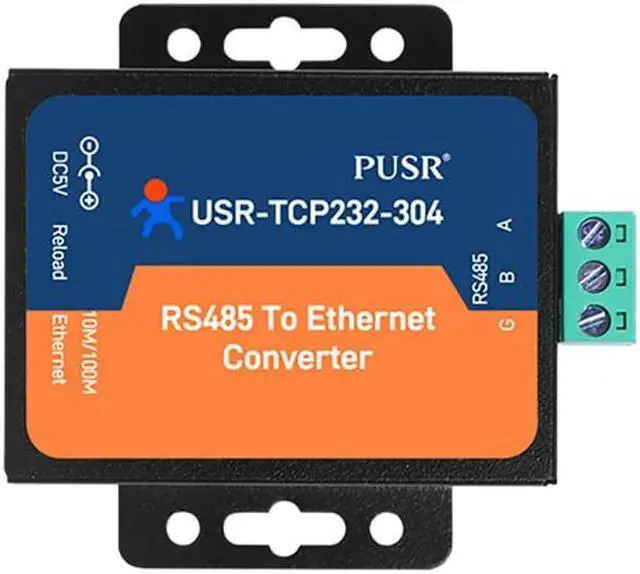

YAKZALAX 1-Port Serial RS485 to Ethernet Converters Module RS485 to TCP/IP Modbus Gateway Built-in Webpage DHCP/DNS Supported USR-TCP232-304

b>Introduction of RS485 Ethernet Converter
1 port RS485 to Ethernet converters USR-TCP232-304 can transmit data transparently between TCP/IP and RS485.
RS485 to Ethernet Converters USR-TCP232-304 are widespread required in industrial automation.
Simple configuration and easy to use.

Features of RS485 Ethernet Converter
1.
Multiple Work Mode: TCP Client / TCP Server / UDP / HTTP
2.
Virtual-com Software: unlimited extension serial cable
3.
Magnetic Isolation: 1.5KV
4. Easy to
Config: Config Software Build-in Webpage AT Command
5.
Advanced Modbus Gateway: Multi-Host Modbus Pollling; Modbus RTU to Modbus TCP
6.
Wide Operating Temperature: Fearless of Harsh Environment -25 ~75
7. RFC2217, Heartbeat Packet, Registration Packet, UDP Multicast

Function of RS485 Ethernet Converter
1. Serial to Ethernet, Bidirectional Transparent Data Transmission
With serial device server, traditional serial devices can be connected to local networks and the Internet. Then users can transform traditional serial device into IOT device.
2. One More Thing, Modbus Gateway
Connect to PLC, SCADA system or user's private server to achieve local or remote motoring.
Multi-Host Modbus Polling
Modbus RTU to Modbus TCP
This feature is available in firmware V4020 and above.
Multiple User Scenarios
Multi-device Management (TCP/UDP/HTTP Server to Lan/Ethernet)
3. Virtual-COM Software
This feature can infinitely extend the serial cable, allowing communication to no longer be limited by distance.
4. Point-to-Point Communication
Using this method, it is possible to achieve data communication between two serial devices.

Package includes:
1* RS485 to TCP IP Ethernet Converter
1* 5V 1A Power Supply
