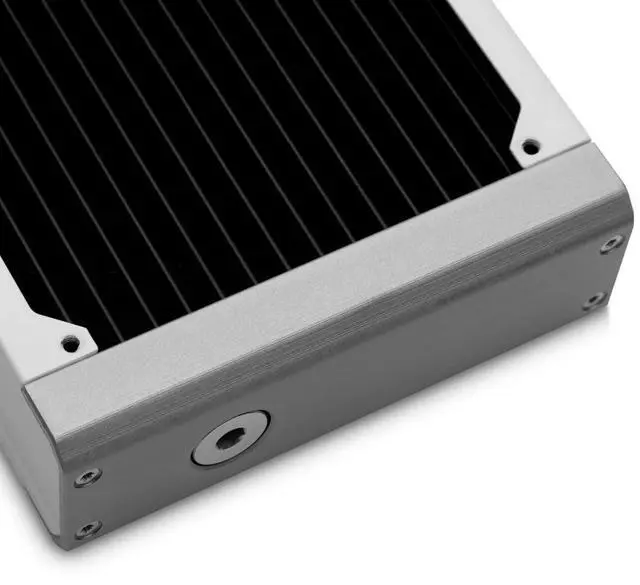

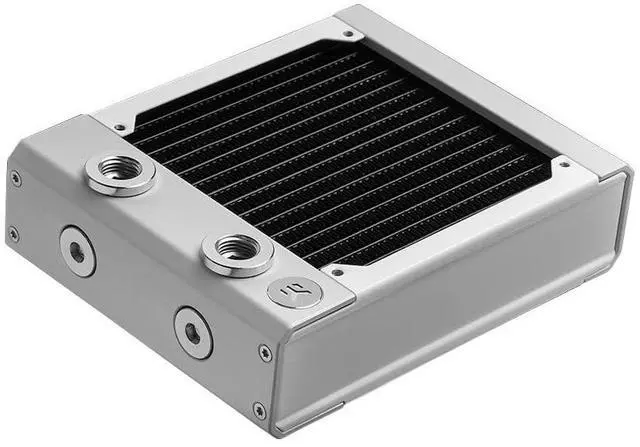

EKWB EK-Quantum Surface P120M Radiator, Single, White

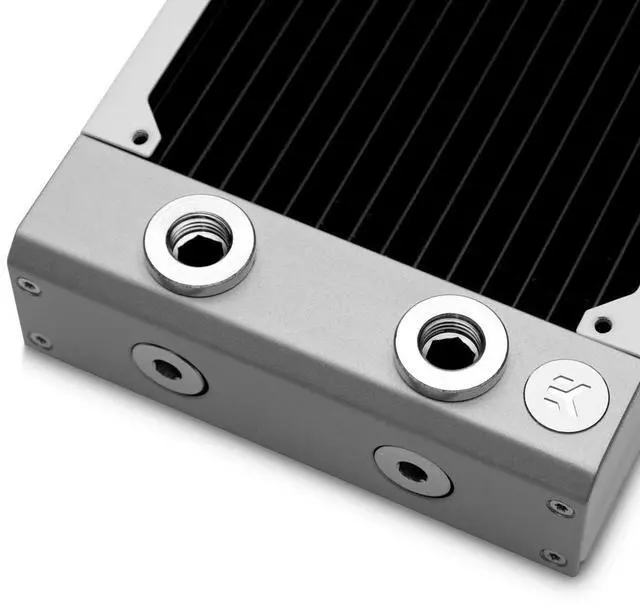

With a thickness of 44mm, the EK-Quantum P Series Surface radiators are the absolute all-rounders for low noise and high performance across the entire fan operational range. Equipped with a total of four G1/4" threaded connection ports, it provides additional versatility during the loop planning process, while the fifth G1/4" port located on the end-tank is an irreplaceable feature when it comes to draining the loop and air bleeding. A total of sixteen 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance, enabling optimal performance even at low-speed fan operation.

To maximize cooling performance, a Push/Pull setup can be utilized on any P Series EK-Quantum Surface radiator. All EK-Quantum Surface radiators are EK-Matrix7 compatible, which means they effortlessly integrate with Reflection2, the second generation of Quantum distro plates. This enables the user to easily swap and upgrade between S, P, and X series Surface radiators within the same case.
Technical and Material

Specifications

: - High-grade 99.9 % copper fins - Copper H90 tubing - Brass H62 end tank chambers - Stainless Steel side plates - Extruded Aluminum Silver anodized end piece covers - Brass nickel-plated extenders and plugs

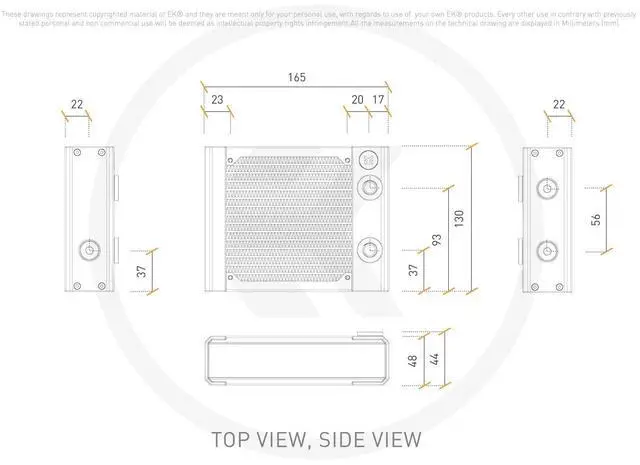

Dimensions: 165 x 130 x 44mm (L x W x
H) Weight: 0.85 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed: - EK-Quantum Surface P series radiator - 4x Phillips Slotted M4x30mm for 25mm thick fans - 4x Phillips Slotted M4x5mm for mounting the radiator directly to the case - 6mm steel Allen (Hex) key - 9mm steel Allen (Hex) key
Model: 3831109839133
