XRDS-RF 12 dBi Wideband Directional Antenna High Gain 3G/4G/5G/LTE/Wi-Fi Universal Fixed Mount Outdoor High Gain LTE Antenna (698-5800 MHz)
- High Gain: It features up to 12 dBi gain. This XRDS-RF Wideband Directional Antenna is compatible with all US carriers, and it supports multiple devices so you could enhance your 3G/4G/5G LTE signals.
- Outside Cellular Antenna: The Directional Roof Antenna is designed for use on stationary objects such as buildings or houses. The antenna collects the cell tower signal and sends it through the cable to an amplifier, cell phone or cellular data card.
- Premium Quality: This 50-ohm directional LTE antenna boosts your 4G LTE and 3G signal for fewer dropped calls, higher audio quality, and faster uploads and downloads and it covers the wide multi-range spectrum and can be used for cellular frequencies including 698~4800MHZ range.
- With N-Female Connector: This 4g outdoor antenna features an N-Female connector that facilitates the transfer of high-frequency information and it is ready to connect to devices with N-Male type of connectors. To choose proper extension cable from t
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
XRDS-RF Log periodic antenna universal wide-band Yagi antenna is compatible with all 5G/4G/LTE/xLTE data services from all major cellular service providers. Combined with pole mount (Need additional purchase) and easy to install. The directional antenna improves transmit and receives signals across a wide frequency spectrum range and is ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.

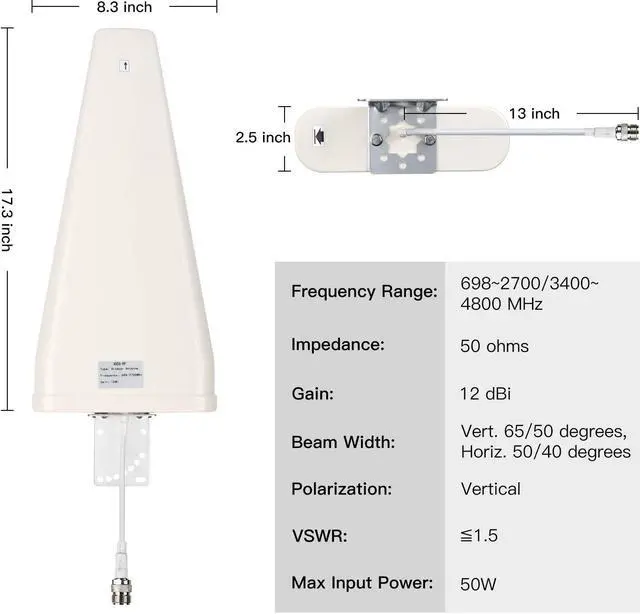

Electrical Properties
Frequency Range: 698~4800 MHz
Impedance: 50 ohms
Gain: 12 dBi
Beam Width: Vert. 65/50 degrees, Horiz. 50/40 degrees
Polarization: Vertical
VSWR: 1.5
Max Input Power: 50W
Mechanical Properties
Connector: N Female connector
Material: ABS / Brass / Aluminum - RoHS compliant
Operation Temp.: -40C to +60C
Max Wind Load: 216 km/hr (134 mph)
Weight: 790 g

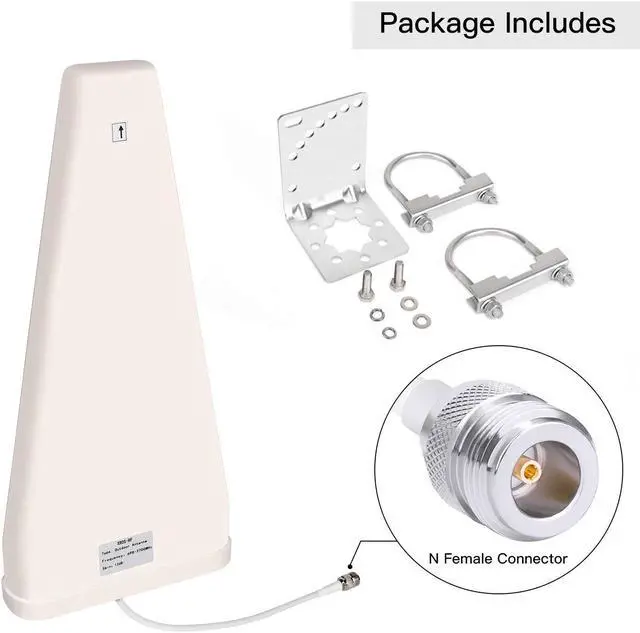

Mounting: Pole or Wall ( U-bolts & bracket included)
Note

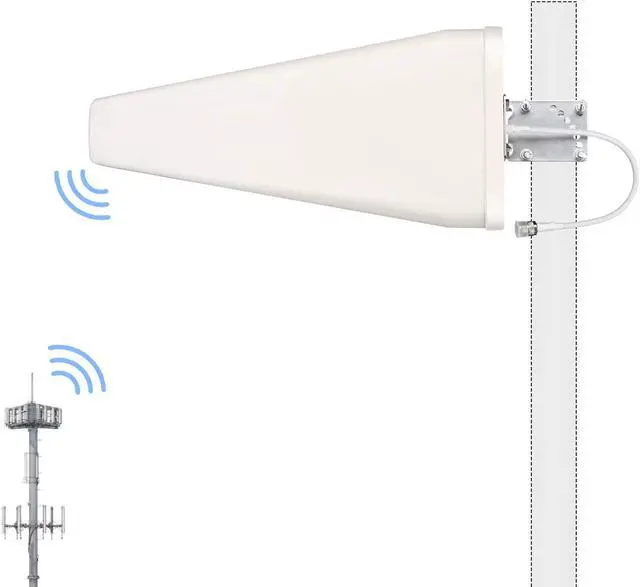

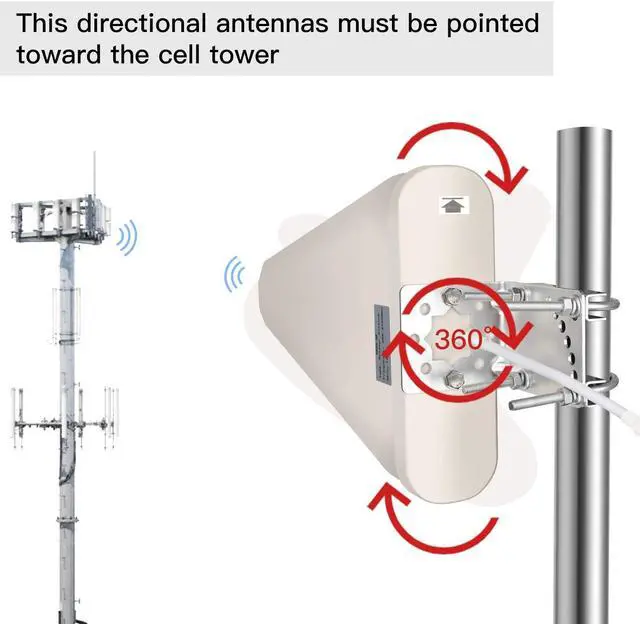

Directional antennas must be pointed toward a cell tower. For help locating your nearest tower, consult the OpenSignal or CellReception sites.
XRDS-RF Log periodic antenna universal wide-band Yagi antenna is compatible with all 5G/4G/LTE/xLTE data services from all major cellular service providers. Combined with pole mount (Need additional purchase) and easy to install. The directional antenna improves transmit and receives signals across a wide frequency spectrum range and is ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.
Electrical Properties
Frequency Range: 698~4800 MHz
Impedance: 50 ohms
Gain: 12 dBi
Beam Width: Vert. 65/50 degrees, Horiz. 50/40 degrees
Polarization: Vertical
VSWR: 1.5
Max Input Power: 50W
Mechanical Properties
Connector: N Female connector
Material: ABS / Brass / Aluminum - RoHS compliant
Operation Temp.: -40C to +60C
Max Wind Load: 216 km/hr (134 mph)
Weight: 790 g
Mounting: Pole or Wall ( U-bolts & bracket included)
Note
Directional antennas must be pointed toward a cell tower. For help locating your nearest tower, consult the OpenSignal or CellReception sites.
