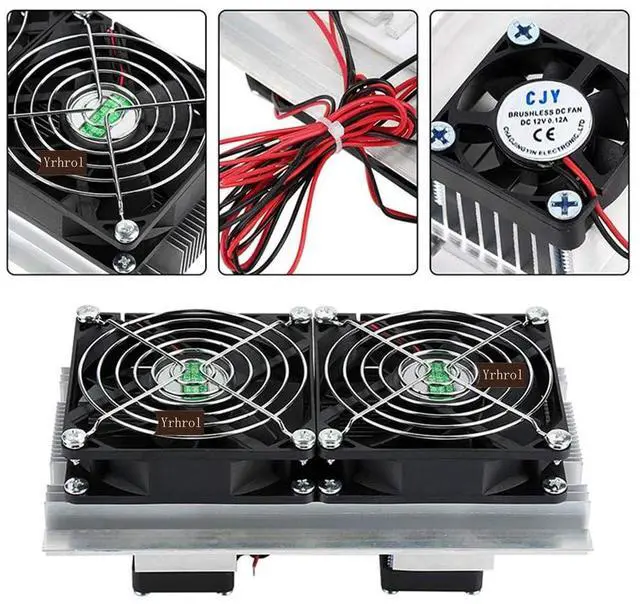

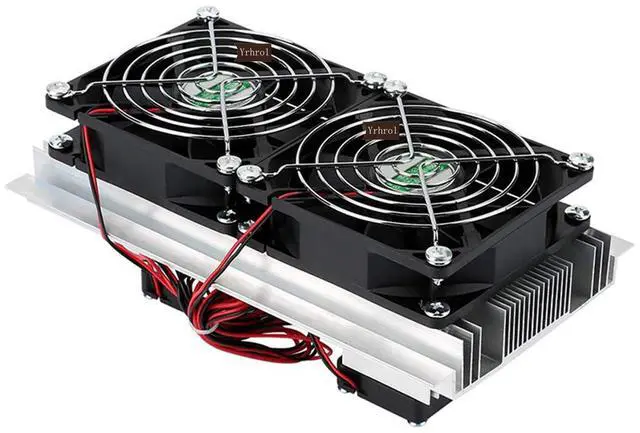

Yrhrol DC 12V DIY Thermoelectric Peltier Refrigeration Cooling System Kit Semiconductor Cooler Heat Sink,2 Cooling Fans, 2 Large Fans and 2 Cold Junction modules
- High quality and DurableThe complete sealing structure isolates the moisture in the air,Using high-quality aluminum + TEC1-12706 semiconductor cooling plate, durable
- Easy to installAn excellent DIY kit for electronic enthusiasts in semiconductor refrigeration applications,Completely assembled,you have no need to use your hands,save time. Positive red and negative black,easy to install.
- High cooling efficiency This semi-conductor cooler includes a large radiator, 2 cooling fans, 2 large fans and 2 cold-end modules.easily cooling down within a few minutes. no noise, no vibration, no refrigerant required.Power Supply: DC 12V.Max Power:144W.
- Mini size designEasy to install,Save space, can be installed anywhere,compact size (200 * 120 * 95mm / 7.87 x 4.72 x 3.74 inches) DIY Peltier Kit include TEC1-12706 semiconductor cooler and other accessories.
- Best assistant for small space coolingSuitable for computer heatsink ,small splace cooling. Also used for pet be
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature
1. Great DIY peltier kit for small space cooling in hot summer.
2. Save space, small size can be installed in anywhere, well made compact structure DIY peltier cooler kit.
3. The DIY thermoelectric cooler with good cooling performance, No noise, no vibration, no refrigerant required.
Specification:
Material: Aluminum
Power Supply: DC 12V
Power Cnsumption: 144W(Under the condition of 12V voltage, the power can only reach about 70%. )
Maximum Cooling Space: 10L (300*180*200mm) volume.

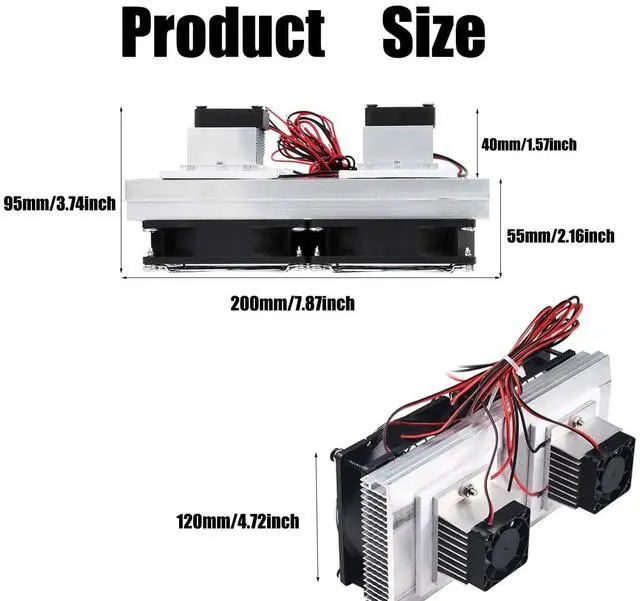

Size: Approx. 7.87 x 4.72 x 3.74 inch
How to install Wire:

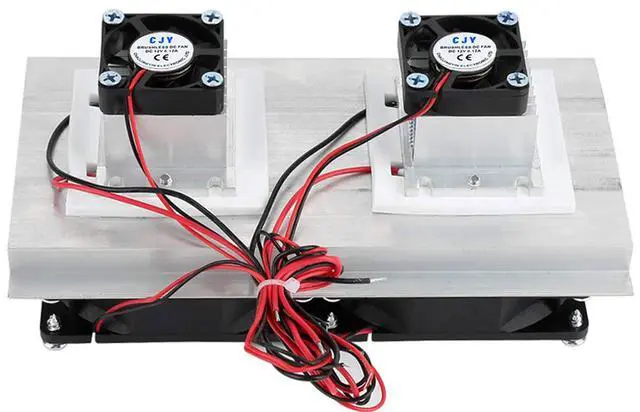

1. Our DIY Peltier Cooler Kit Completely assembled. TEC1-12706 semiconductor chilling plate equipped with cool fan for better heat dissipation, so they should "run together". You don't need disassemble the device to sort the wires and don't need separate switch for each fan.
2. There are 6 wires, you can see 3 red wires(two fans+TEC1-12706 chilling plate)you can twist and connect them together, connect the12v battery positive electrode; 3 black wires twist together connect the12v battery negative electrode.
Note:
1. The cooling space of the DIY Thermoelectric Cooler should not exceed 10L (300*180*200mm) volume.

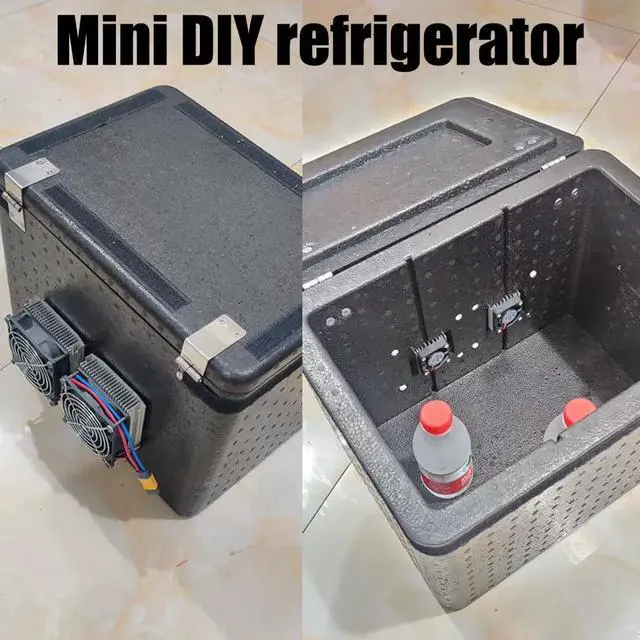

2. The Peltier Cooler can only cooling the cabinet of 10L volume when the refrigerator is empty (the refrigerator does not put anything), and the cooling effect is about 5-6 degrees lower than normal temperature.
3. Under the condition of 12V voltage, the power can only reach about 70%.
4. The reverse connection of positive and negative electrodes will cause the cooling surface to be hot.
5. Please contact us in time if you have any questions, and we will deal with them actively.
Package Included:
One Pcs Peltier Cooler Kit:
1: Fan
net cover 2: Cooling
fan 3: Radiator
4: Semiconductor
refrigeration film 5: Thermal
insulation gasket 6: Conductive
cold film 7: Conductive cooling fan
1. Great DIY peltier kit for small space cooling in hot summer.
2. Save space, small size can be installed in anywhere, well made compact structure DIY peltier cooler kit.
3. The DIY thermoelectric cooler with good cooling performance, No noise, no vibration, no refrigerant required.
Specification:
Material: Aluminum
Power Supply: DC 12V
Power Cnsumption: 144W(Under the condition of 12V voltage, the power can only reach about 70%. )
Maximum Cooling Space: 10L (300*180*200mm) volume.
Size: Approx. 7.87 x 4.72 x 3.74 inch
How to install Wire:
1. Our DIY Peltier Cooler Kit Completely assembled. TEC1-12706 semiconductor chilling plate equipped with cool fan for better heat dissipation, so they should "run together". You don't need disassemble the device to sort the wires and don't need separate switch for each fan.
2. There are 6 wires, you can see 3 red wires(two fans+TEC1-12706 chilling plate)you can twist and connect them together, connect the12v battery positive electrode; 3 black wires twist together connect the12v battery negative electrode.
Note:
1. The cooling space of the DIY Thermoelectric Cooler should not exceed 10L (300*180*200mm) volume.
2. The Peltier Cooler can only cooling the cabinet of 10L volume when the refrigerator is empty (the refrigerator does not put anything), and the cooling effect is about 5-6 degrees lower than normal temperature.
3. Under the condition of 12V voltage, the power can only reach about 70%.
4. The reverse connection of positive and negative electrodes will cause the cooling surface to be hot.
5. Please contact us in time if you have any questions, and we will deal with them actively.
Package Included:
One Pcs Peltier Cooler Kit:
1: Fan
net cover 2: Cooling
fan 3: Radiator
4: Semiconductor
refrigeration film 5: Thermal
insulation gasket 6: Conductive
cold film 7: Conductive cooling fan
