SVPRO Autofocus 4K USB Camera Module with Microphone, Ultra HD Mini USB Camera Board with 100 Degree Lens Wide Angle Without Distortion,USB Camera with IMX415 Sensor for Windows Mac Linux Android
- 4K Ultra HD with IMX415 Image SensorUltra high definition 4K USB Camera module with IMX415 image sensor, provides crystal clear images 3840x2160 resolution with high frame rate 30fps. It is exactly double the horizontal and vertical resolution of 1080p for a total of 4 times as many pixels. This USB camera delivers razor-sharp videos, record professional-quality video in stunning 4K UHD, clearly see all of the details and colors that pop out on screen

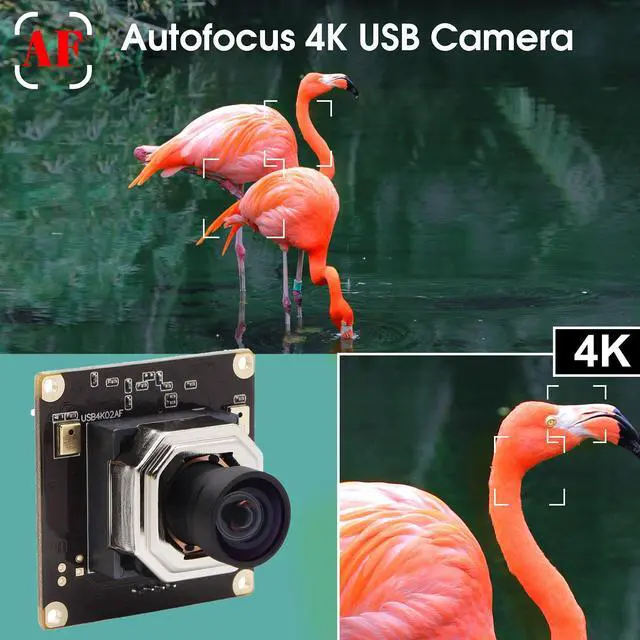

- Fast Autofocus Function4K camera board with autofocus function, get clear shot fast and reliable, automatically controlled without lens adjustment tool. Enjoy razor-sharp high sharpness in every environment, much faster and easier to focusing correctly than fixed focus camera

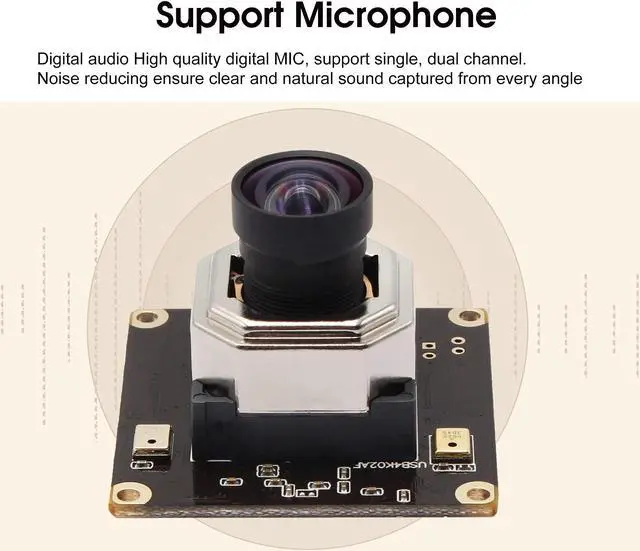

- Digital Audio Function4K camera with microphone, high quality digital MIC, support single and dual channel. Noise reducing ensure clear and natural sound captured for every angle. Great fit for professional video production, surveillance system
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

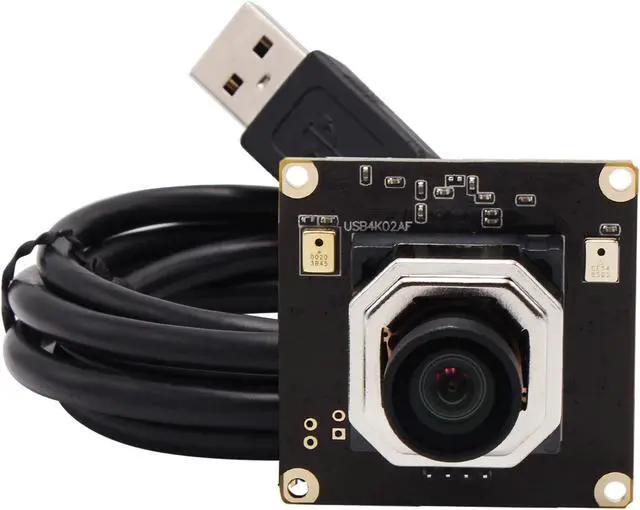

SVPRO Autofocus 4K USB Camera Module is an Ultra High Definition Mini Sized Camera Board that can be installed in the most for a home video surveillance system or other embedded applications, compact camera for all kinds of machine vision.
Image Sensor IMX415 (1/ 2.8 )
Max. Resolution 3840 (H) *2160 (V)
Sensitivity 1000mV/Lux-sec
Compression format MJPEG / YUY2YUYV
Resolution & frame:
3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 / 1600x1200@ 5fps YUY2
1920x1080@ 5fps YUY2 / 1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
S/N Ratio 30dB
Sensitivity 0.65V /lux-sec@550nm
Minimum illumination
Lens Specs: 0.2 lux
Auto Focus Support
Adjustable parameters Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure
Lens Parameter Size: 1/ 2.8, FOV: 80Degree (Horizontal angle)
-Shutter: Rolling Shutter

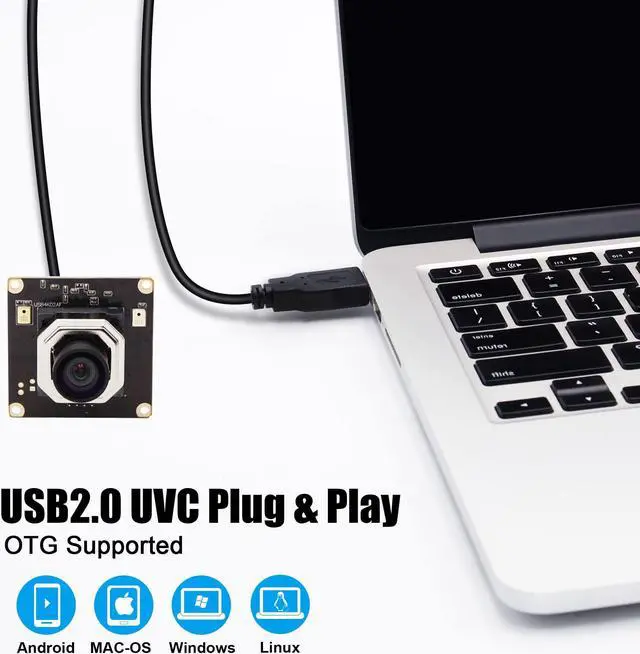

System Compatibility:
Windows Win XP/Vista/Win7/Win8
Linux with UVC(above linux- 2.6. 26)
MAC-OS X 10.4. 8 or later
Android 4.0 or above with UVC
USB 2.0 OTG protocol
Power:
- Power Supply: USB powered DC 5V
-Storage Temperature -20°C to 70°C
- Working Temperature: -0°C~+60°C

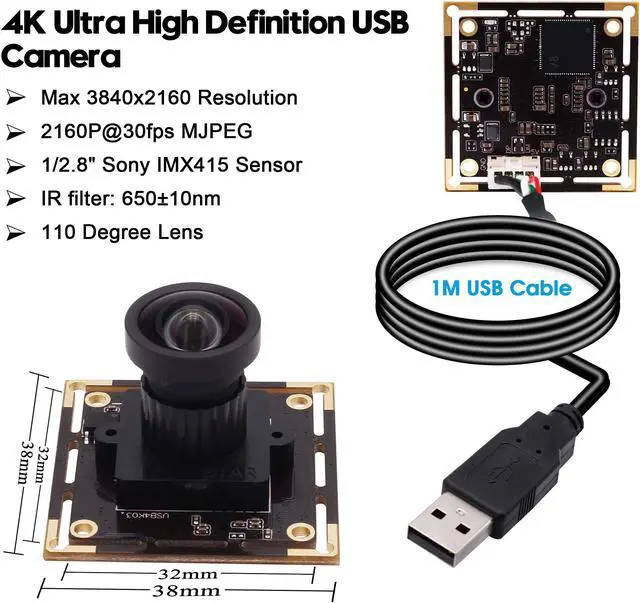

Dimensions:
- 38x38mm
- USB Cable Length: 1 meter
Specifications
:Image Sensor IMX415 (1/ 2.8 )
Max. Resolution 3840 (H) *2160 (V)
Sensitivity 1000mV/Lux-sec
Compression format MJPEG / YUY2YUYV
Resolution & frame:
3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE
1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG
640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG
3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2
2048x1536@ 3fps YUY2 / 1600x1200@ 5fps YUY2
1920x1080@ 5fps YUY2 / 1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
S/N Ratio 30dB
Sensitivity 0.65V /lux-sec@550nm
Minimum illumination
Lens Specs: 0.2 lux
Auto Focus Support
Adjustable parameters Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure
Lens Parameter Size: 1/ 2.8, FOV: 80Degree (Horizontal angle)
-Shutter: Rolling Shutter
System Compatibility:
Windows Win XP/Vista/Win7/Win8
Linux with UVC(above linux- 2.6. 26)
MAC-OS X 10.4. 8 or later
Android 4.0 or above with UVC
USB 2.0 OTG protocol
Power:
- Power Supply: USB powered DC 5V
-Storage Temperature -20°C to 70°C
- Working Temperature: -0°C~+60°C
Dimensions:
- 38x38mm
- USB Cable Length: 1 meter
