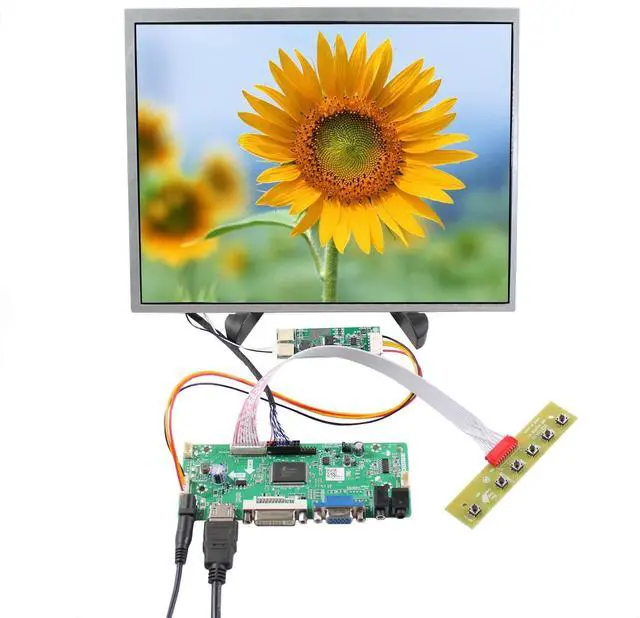

VSDISPLAY 12.1" 12.1 Inch 1024X768 Wide Viewing LCD Screen VS121T-001A with DVI VGA Audio LCD Controller Board 68676
- 12.1'' LCD12.1" VS121T-001A 1024X768 LCD screen,widely viewing angle.Outline Size 261 1985 (HVD)mm;Display Area 246 184.5 (HV)mm;Brightness 350 cd/m (Typ.);Contrast Ratio 400:1 (Typ.) (TM)

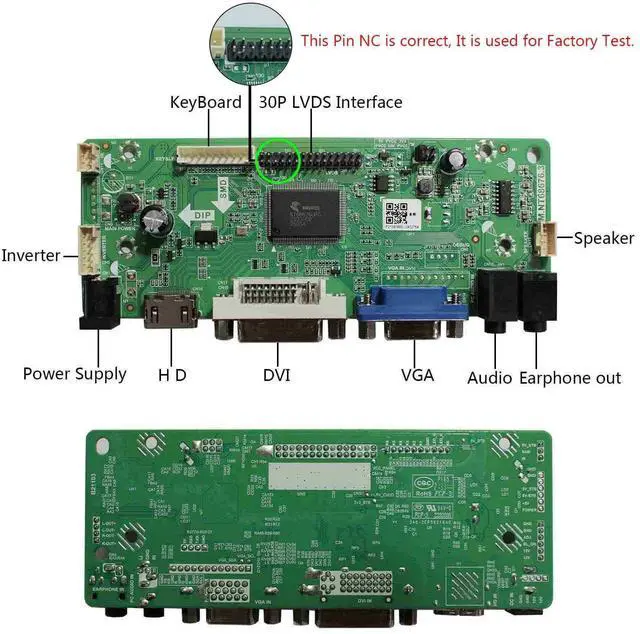

- Multiple Interfaces DVI VGA Audio LCD board work for LVDS interface LCD screen (Video Input: DVI VGA;Audio Input: ;Audio Output: Speaker Connector)
- Compatible with Touch PanelCompatible with 12.1" Resistive touch screen VS121TP-A1 & 12.1" Capacitive touch screen VS-121TC01-B1 (Not included touch panel,pls buy touch panel separately)
- Recommend Power Adapter Spec.Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W

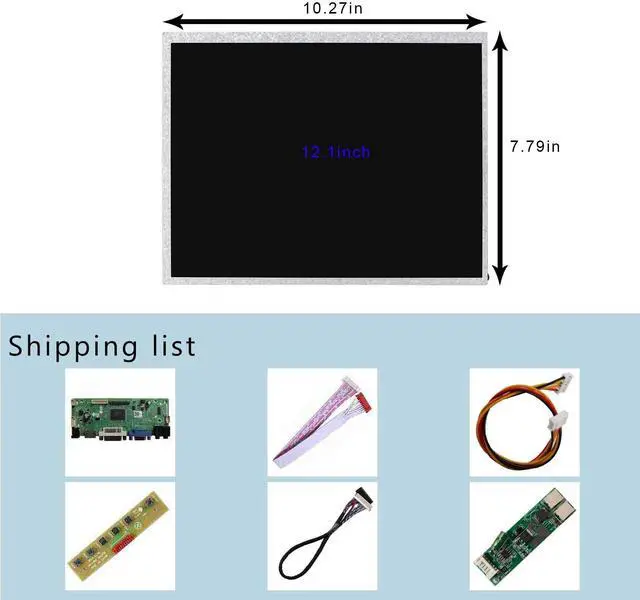

- Packing List1 VGA DVI LCD Controller Board 68676 3(New Version);1 12.1inch VS121T-001A 1024x768 LCD Screen; 1 LVDS Cable;1 Inverter Board;1 Keyboard With Cable (Please notice there is no power adapter in the packing list,pls prepare by yourself)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Input: Audio
Output: Speaker

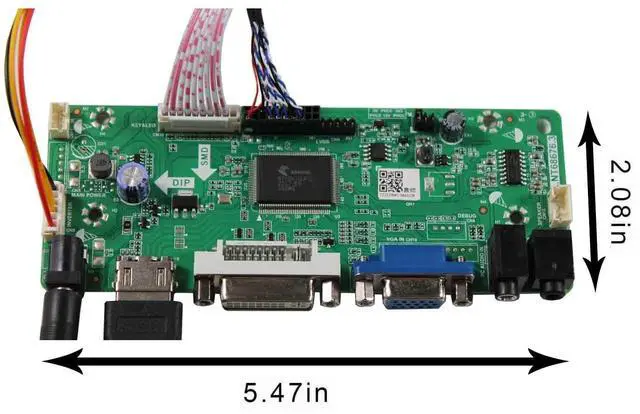

ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139 mm x 53 mm x 17 mm 12.1" VS121T-001A 1024X768
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 1024 (RGB) 768Outline Size 261 1985 (HVD) Display Area 246 184.5 (HV) Brightness 350 cd/m (Typ. )Contrast Ratio 400:1 (Typ. ) (TM) Viewing Angle 80/80/70/70 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6-bit), 20 pins, ConnectorBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 VGA DVI LCD Controller Board 686761 12.1 inch VS121T-001A 1024x768 LCD Screen1 LVDS Cable1 Inverter Board1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Input: Audio
Output: Speaker
ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139 mm x 53 mm x 17 mm 12.1" VS121T-001A 1024X768
LCD Screen: Display Mode TN, Normally White, TransmissiveResolution 1024 (RGB) 768Outline Size 261 1985 (HVD) Display Area 246 184.5 (HV) Brightness 350 cd/m (Typ. )Contrast Ratio 400:1 (Typ. ) (TM) Viewing Angle 80/80/70/70 (Typ. ) (CR10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 6-bit), 20 pins, ConnectorBacklight WLED
Input Voltage 3.3V (Typ.
)Packing list: 1 VGA DVI LCD Controller Board 686761 12.1 inch VS121T-001A 1024x768 LCD Screen1 LVDS Cable1 Inverter Board1 Keyboard With Cable
