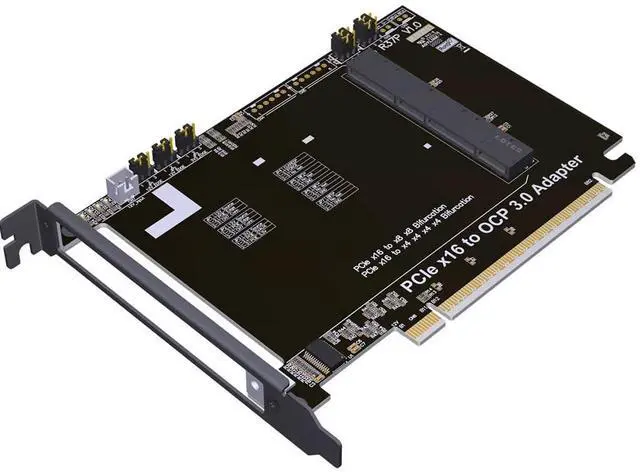

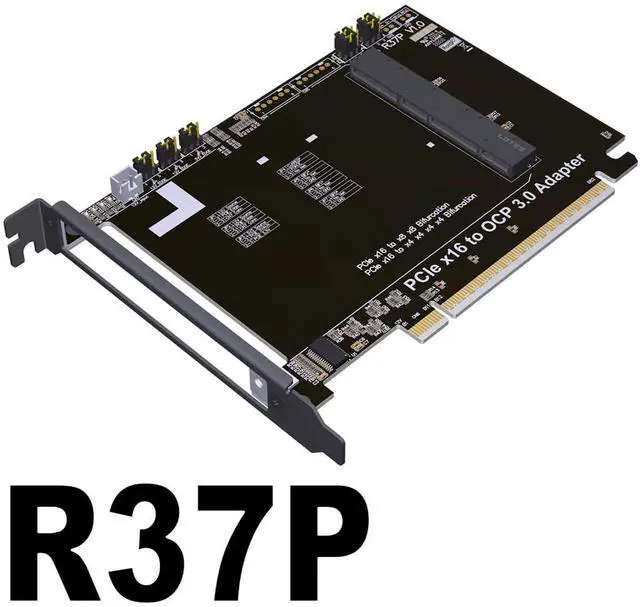

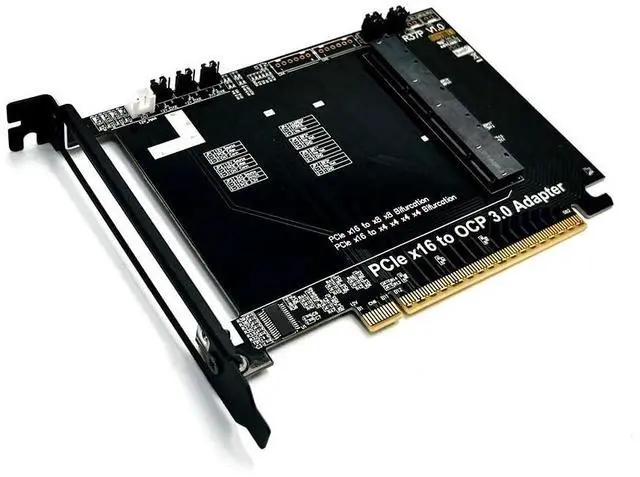

JMT ADT-R37P PCIe 5.0 x16 to Gen-Z 4C+/SFF-TA-1002 Adapter Card High Performance External PCIe x16 Bifurcation Expansion Support OCP NIC 3.0

JMT ADT-R37P PCIe 5.0 x16 to Gen-Z 4C+/SFF-TA-1002 Adapter Card High Performance External PCIe x16 Bifurcation Expansion Support OCP NIC 3.0P roduct
DescriptionProduct Model: R37PProduct
Name: PCIe x16 to OCP NIC 3.0 Side-Mount
Adapter CardSpeed Bandwidth: PCIe 5.0 x16Product
Dimensions: Length 163.65 mm Height 121mm Thickness 21.6 mmProduct
Weight: 73.6
gColour: BlackOperating
Temperature: -40C to 80CFlame
Retardant Rating: 94V0Product

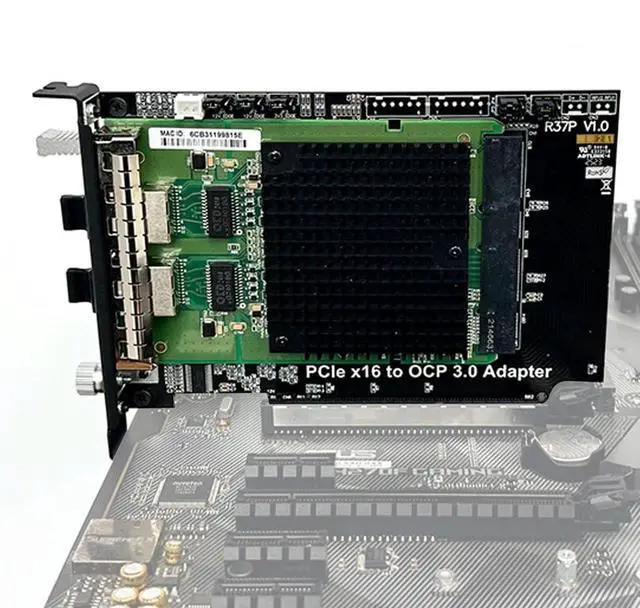

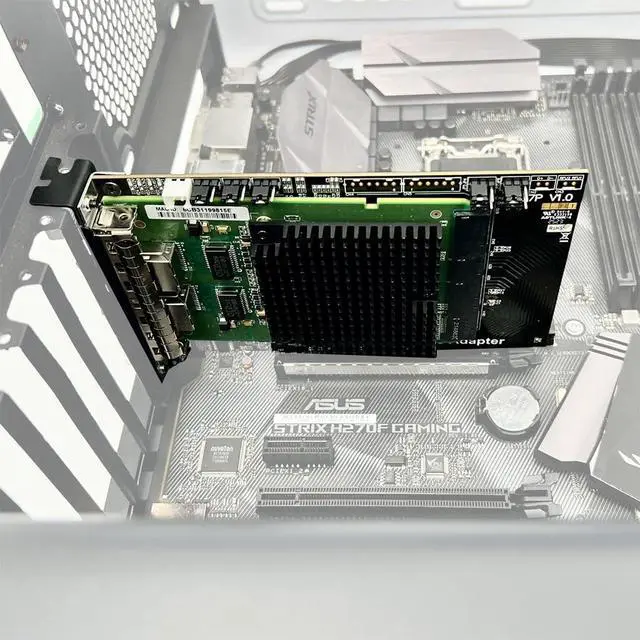

advantages: 1. Supports PCIe 5.0 x16, compatible with Gen3/Gen4/gen52. Exclusive R37P bracket design, supports OCP network card interface extension to the outside of the chassis3. Side-mounted connectors for a more rational space structure4. Optional external power supply design, with the motherboard and external circuitry operating on separate circuits, providing protection for the motherboard circuitry5. Gold-plated fingers with a gold thickness of 10U, compliant with IPC Class 1 international standards6. LO TES connectors made of LCP flame-retardant, high-temperature-resistant plastic steel material7. High-frequency, low-resistance, high-temperature-resistant, anti-oxidant PCB board material, which does not deform, has a yellow crystal semi-transparent colour, and does not turn white or blackTechnical
FAQ: Does the R37P model support PCIe 5.0? Laboratory testing shows that it can still achieve PCIe 4.0 after daisy-chainingCan the OCP 3.0 network card module be recognised and used to access the Internet? The device manager can recognise the network port, and after connecting the network cable, it can access the Internet normally (the network speed only reaches 450Mbps
