LetLinkSo Gen5 MCIO 8i to PCIe x16 Adapter, Dual MCIO x8 to PCIe Female Card with 6 Pin GPU Power Port for Flexible Slot Extension

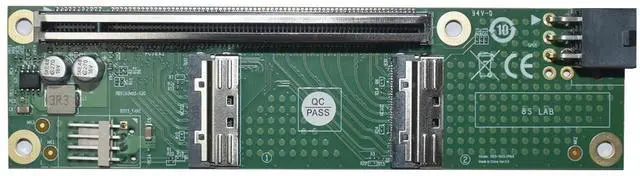

Unlock Your Server's Hidden Power: Dual MCIO to PCIe 5.0 x16 Expansion AdapterYour enterprise motherboard has PCIe lanes to spare, but no physical x16 slots. This dual MCIO to PCIe adapter solves that. Convert two MCIO 8i interfaces into one PCIe 5.0 x16 slot, complete with GPU power delivery and support for bifurcation. No drivers, no firmware hacksjust hardware that works. Dual MCI
Ox8 to PCIe x16 ConversionTakes two MCIO 8i (SFF-TA-1016) ports and outputs a standard PCIe x16 slot. Connect graphics cards, NVMe expansion cards, or accelerators in servers that lack native slots. Requires motherboard PCIe bifurcation support for dual-device x8/x8 modePCIe 5.0 Speed, Zero Bottlenecks32GT/s per lane, 512Gbps total bandwidth. Runs PCIe Gen 5, 4, 3, 2, or 1 devices at full native speed. No signal loss, no latency penaltiesyour GPU or SSD performs like it's directly on the motherboardRun Two Devices on One Adapterx8/x8 bifurcation lets you connect two independent devices simultaneously. Use one MCIO port for a GPU, the other for an NVMe array. Maximizes PCIe lane usage in space-constrained 1U/2U servers and workstationsStable Power & Clean Signals6-pin power connector delivers reliable power to high-demand cards. Premium low-loss PCB material ensures zero signal degradation under sustained load. EMI-resistant design keeps data clean in dense rack environmentsEnterprise-Grade ReliabilityNo driversLinux 5.11 +, Windows 10/11, and Windows Server 2019 recognize it instantly. Rugged construction operates from -40C to 85C. Built for 24/7 uptime in data centers and professional workstationsProduct

Specifications

: Hardware interface
A: 2 x MCIO x8 interface (74 pin, SFF-TA-1016)Hardware
Interface B: 1 x PCIe 5.0 x16 SlotHardware interface
C: 1 x 6-pin power connectorData transfer rate: up to 32 GT/s (per lane)
Number of channels:
16Compatibility: PCIe 5.0, 4.0, 3.0, 2.0, 1.0O
perating temperature range: -40 to 85
CSystem requirements: Linux
kernel: 5.11 or higher, Windows: 8.1 / 8.1 64 bit/10/10-64 bit/11, Windows
Server: 2019
