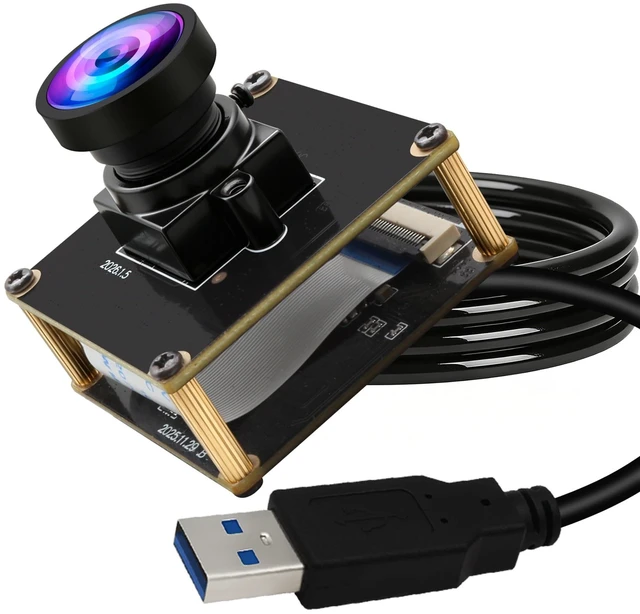

ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop
- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
- FHD Resolution: 5MP 2592Hx1944V; Frame Rates: MJPEG 60fps@2592x1944/2560x1440, YUY2 35fps@2592x1944/2560x1440, fast frame for for high-speed moving objects shooting.
- Wide Angle 120degree no distortion lens, HFOV about 126degree, mini usb camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial.

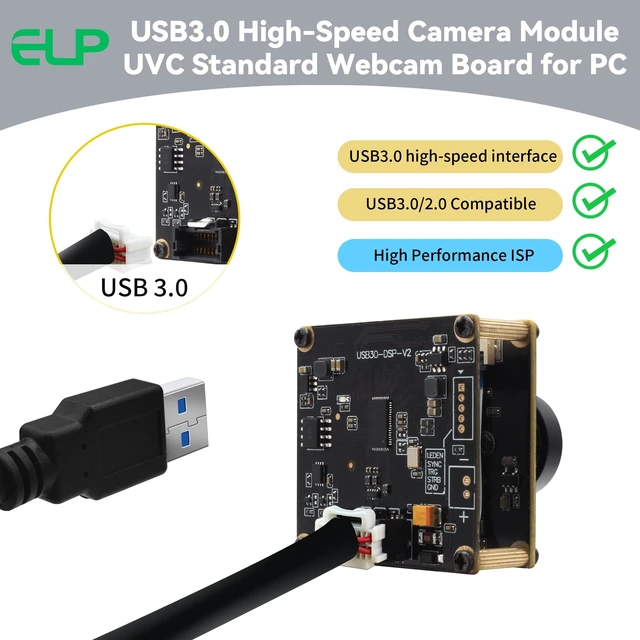

- USB3.0 high speed USB camera for high speed system, USB3.0/2.0 compatible, high performance ISP.
- Adopt high quality 1/2.5 OmniVision OG05B10 high quality sensor for sharp clear image.
- USB3.0 Type C connector, equipped with 1.2m Type C USB 3.0 cable, Support OTG optional.
- Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc.
- Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

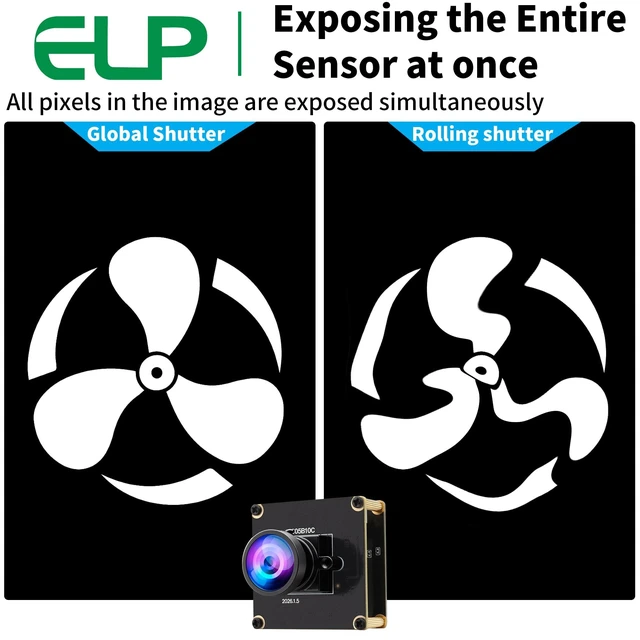

A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning thesensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free ofdistortion caused by motion during exposure. It can avoid smearing when capturing high-speed motion.
Product Model: ELP-U3GS05B10C-H120Product
Name: 5MP Global Shutter 60FPS USB Zoom Camera1.
Main SpecificationsSensor: OmniVision OG05B10 (1/ 2.5 )
Global ShutterMax Resolution: 2592 (H) *1944 (V)
Sensor Size: 1/ 2.5 inch ( 4:3 )Image
Array Area: 5737m x4312mPixel
Size: 2.2 m x 2.2 mCompression
Format: MJPEG / YUV2 (YUYV) Resolution &
Frame rate: USB 3.02592 x1944 MJPEG 60fps/ YUY2 35fps2560x1440 MJPEG 60fps/ YUY2 35fps2048x1536 MJPEG 60fps/ YUY2 50fps1600x1200 MJPEG 60fps/ YUY2 60fps1920x1080 MJPEG 60fps/ YUY2 60fps1280x960 MJPEG 60fps/ YUY2 60fps1280x720 MJPEG 60fps/ YUY2 60fps640x480 MJPEG 60fps/ YUY2 60fps512x512 MJPEG 60fps/ YUY2 60fpsResolution &
Frame rate: USB 2.02592 x1944 MJPEG 60fps/ YUY2 1fps2560x1440 MJPEG 60fps/ YUY2 1fps2048x1536 MJPEG 60fps/ YUY2 1fps1600x1200 MJPEG 60fps/ YUY2 1fps1920x1080 MJPEG 60fps/ YUY2 1fps1280x960 MJPEG 60fps/ YUY2 1fps1280x720 MJPEG 60fps/ YUY2 1fps640x480 MJPEG 60fps/ YUY2 30fps512x512 MJPEG 60fps/ YUY2 10fpsSurface
Mount Technology: SMT
Interface & Connector: USB 3.0 Type C Port (USB 3.0 20-Pin Connector optional)Focus
FixedCentral Definition: 1000LW/PH (Center)
S/N Ratio: 38dBDynamic
Range:
72dBSensitivity: 1.4V /lux-sec@550nmMin
Illumination: 0.1
luxShutter: Global
ShutterInterface: USB 3.0
InterfaceAEC/AWB/AGC: SupportAdjustable ParametersBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, ExposureLens
Parameters: f= 3.24 mm, No distortion, HFOV is approximately 85.
Optional Lenses: M12
No distortion: 51/69/ 86/75/ 98/ 115/ 125M12
Normal: 12/ 21/25/43/58/89/110/115/ 120M12
Fish-eye: 158/ 195M12
Varifocal lens: 2.8 -12mm(For other viewing angles, please contact us directly.
)LED Board Power Connector: Support2P-
2.0 mm socket: Power SupplyUSB Type-C
Power SupplyOperating Voltage: DC 5VWorking
Current: 155mA-
195mADimension: 38mm x 38mmx 48.5 mmStorage
Temperature: -20C to 80CWorking
Temperature: -10C to 70CUSB
Cable: 1.2M (2M/3M/5M... Optional )Operating System RequestWin10/Win11 etc. Linux with UVC (above linux- 2.6. 26)MAC-OS X 10.4. 8 or laterAndroid 4.0 or above with UVC
Product Model: ELP-U3GS05B10C-H120Product
Name: 5MP Global Shutter 60FPS USB Zoom Camera1.
Main SpecificationsSensor: OmniVision OG05B10 (1/ 2.5 )
Global ShutterMax Resolution: 2592 (H) *1944 (V)
Sensor Size: 1/ 2.5 inch ( 4:3 )Image
Array Area: 5737m x4312mPixel
Size: 2.2 m x 2.2 mCompression
Format: MJPEG / YUV2 (YUYV) Resolution &
Frame rate: USB 3.02592 x1944 MJPEG 60fps/ YUY2 35fps2560x1440 MJPEG 60fps/ YUY2 35fps2048x1536 MJPEG 60fps/ YUY2 50fps1600x1200 MJPEG 60fps/ YUY2 60fps1920x1080 MJPEG 60fps/ YUY2 60fps1280x960 MJPEG 60fps/ YUY2 60fps1280x720 MJPEG 60fps/ YUY2 60fps640x480 MJPEG 60fps/ YUY2 60fps512x512 MJPEG 60fps/ YUY2 60fpsResolution &
Frame rate: USB 2.02592 x1944 MJPEG 60fps/ YUY2 1fps2560x1440 MJPEG 60fps/ YUY2 1fps2048x1536 MJPEG 60fps/ YUY2 1fps1600x1200 MJPEG 60fps/ YUY2 1fps1920x1080 MJPEG 60fps/ YUY2 1fps1280x960 MJPEG 60fps/ YUY2 1fps1280x720 MJPEG 60fps/ YUY2 1fps640x480 MJPEG 60fps/ YUY2 30fps512x512 MJPEG 60fps/ YUY2 10fpsSurface
Mount Technology: SMT
Interface & Connector: USB 3.0 Type C Port (USB 3.0 20-Pin Connector optional)Focus
FixedCentral Definition: 1000LW/PH (Center)
S/N Ratio: 38dBDynamic
Range:
72dBSensitivity: 1.4V /lux-sec@550nmMin
Illumination: 0.1
luxShutter: Global
ShutterInterface: USB 3.0
InterfaceAEC/AWB/AGC: SupportAdjustable ParametersBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, ExposureLens
Parameters: f= 3.24 mm, No distortion, HFOV is approximately 85.
Optional Lenses: M12
No distortion: 51/69/ 86/75/ 98/ 115/ 125M12
Normal: 12/ 21/25/43/58/89/110/115/ 120M12
Fish-eye: 158/ 195M12
Varifocal lens: 2.8 -12mm(For other viewing angles, please contact us directly.
)LED Board Power Connector: Support2P-
2.0 mm socket: Power SupplyUSB Type-C
Power SupplyOperating Voltage: DC 5VWorking
Current: 155mA-
195mADimension: 38mm x 38mmx 48.5 mmStorage
Temperature: -20C to 80CWorking
Temperature: -10C to 70CUSB
Cable: 1.2M (2M/3M/5M... Optional )Operating System RequestWin10/Win11 etc. Linux with UVC (above linux- 2.6. 26)MAC-OS X 10.4. 8 or laterAndroid 4.0 or above with UVC
