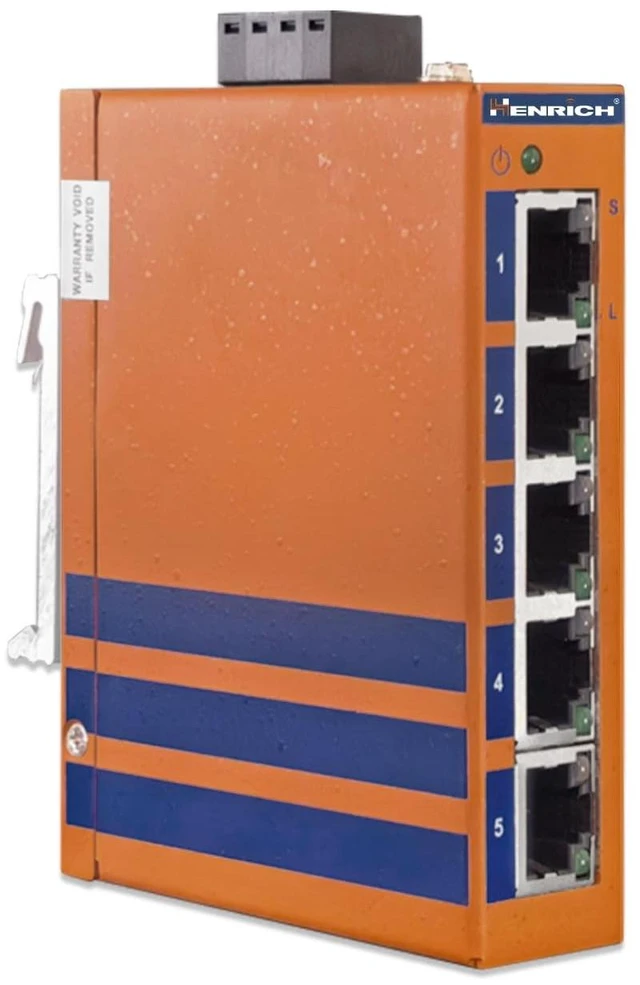

True Industrial Ethernet: Henrich 5x100Mbps Copper Port Din-Rail Switch
- UL C1D2 Hazadous location compliant strength. Meets FCC Part 15 and CISPR/EN 55022 Class A requirements, with Level 3 protection for ESD, radiated immunity, EFT, surge, and conducted immunity.

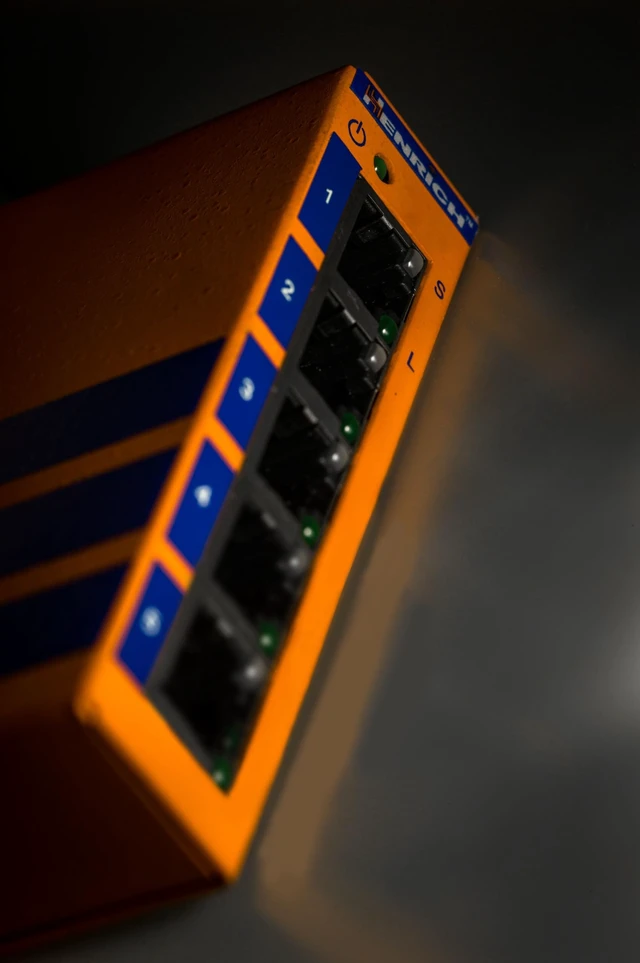

- 5-PORT FAST ETHERNET Five 10/100Base-T(X) RJ45 ports with auto-negotiation, auto MDI/MDI-X, and full/half-duplex operation. Supports IEEE 802.3, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x flow control for plug-and-play industrial Ethernet connectivity.

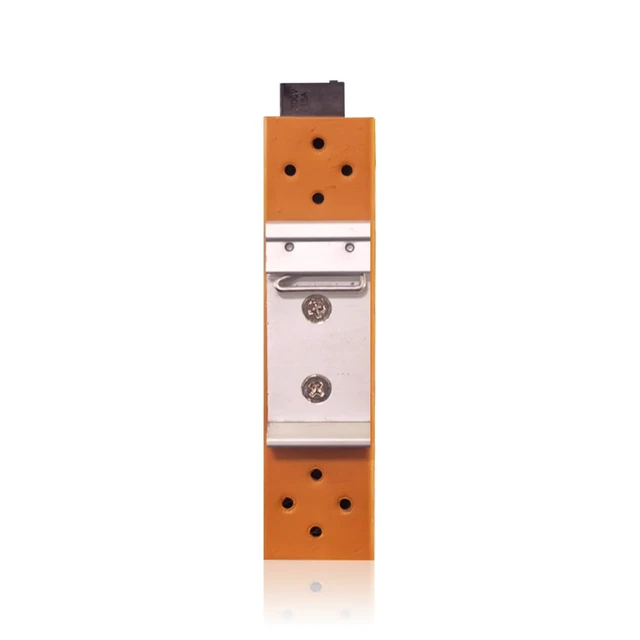

- COMPACT RUGGED INDUSTRIAL DESIGN Operates from -40 to 75C (-40 to 167F) in an IP30-rated fanless metal enclosure measuring only 25 100 75 mm. Supports DIN-rail or panel mounting and is tested for shock, vibration, and free fall.

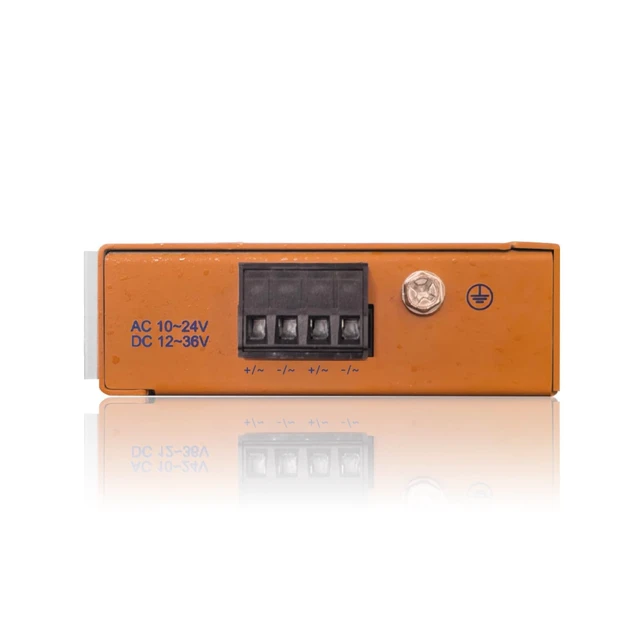

- DUAL REDUNDANT AC/DC POWER INPUTS Supports 1236 VDC or 1024 VAC through a removable terminal block. Dual power inputs provide redundancy, while DC reverse-polarity protection helps support reliable operation in industrial control systems. Power supply not included.
- INDUSTRIAL SWITCHING PERFORMANCE Unmanaged
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
UL C1D2 Hazadous location compliant strength. Meets FCC Part 15 and CISPR/EN 55022 Class A requirements, with Level 3 protection for ESD, radiated immunity, EFT, surge, and conducted immunity. ^^ 5-PORT FAST ETHERNET Five 10/100Base-T (X) RJ45 ports with auto-negotiation, auto MDI/MDI-X, and full/half-duplex operation. Supports IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, and IEEE 802.3 x flow control for plug-and-play industrial Ethernet connectivity. ^^ COMPACT RUGGED INDUSTRIAL DESIGN Operates from -40 to 75C (-40 to 167F) in an IP30-rated fanless metal enclosure measuring only 25 100 75 mm.
Supports DIN-rail or panel mounting and is tested for shock, vibration, and free fall. ^^ DUAL REDUNDANT AC/DC POWER INPUTS Supports 1236 VDC or 1024 VAC through a removable terminal block. Dual power inputs provide redundancy, while DC reverse-polarity protection helps support reliable operation in industrial control systems. Power supply not included. ^^ INDUSTRIAL SWITCHING PERFORMANCE Unmanaged store-and-forward switching architecture with a 2K MAC address table and 512 Kbit packet buffer. Designed for reliable data transmission between PLCs, HMIs, CNC machines, controllers, and other industrial Ethernet devices.
^^ Designed and supported by our US TEAM with 5-YEAR WARRANTY local assistance for product selection, installation, and troubleshooting.
Supports DIN-rail or panel mounting and is tested for shock, vibration, and free fall. ^^ DUAL REDUNDANT AC/DC POWER INPUTS Supports 1236 VDC or 1024 VAC through a removable terminal block. Dual power inputs provide redundancy, while DC reverse-polarity protection helps support reliable operation in industrial control systems. Power supply not included. ^^ INDUSTRIAL SWITCHING PERFORMANCE Unmanaged store-and-forward switching architecture with a 2K MAC address table and 512 Kbit packet buffer. Designed for reliable data transmission between PLCs, HMIs, CNC machines, controllers, and other industrial Ethernet devices.
^^ Designed and supported by our US TEAM with 5-YEAR WARRANTY local assistance for product selection, installation, and troubleshooting.
