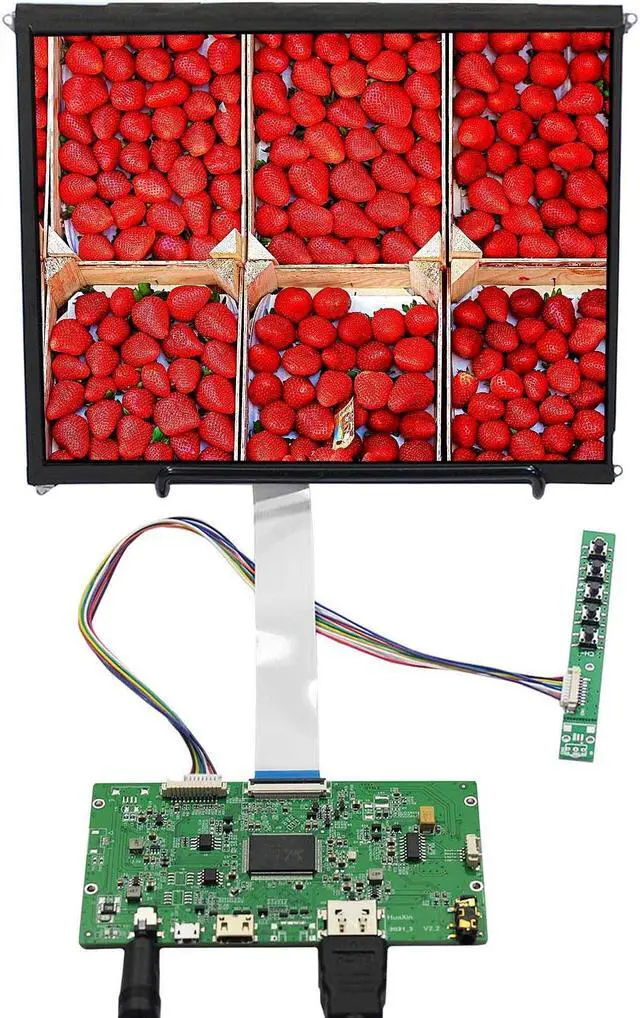

VSDISPLAY 9.7 inch 2048x1536 IPS LCD LP097QX1/ LTL097QL01/ HQ097QX1 with Controller Board fit for DIY Cabinet Monitor
- 9.7" 2048X1536 IPS LCD Screen , Controller board work with 9.7inch eDP Interface LCD Screen
- Recommend Input Power Adapter: 12Vdc More than 2A. Power adapter connecotor : 3.5mmx1.35mm . (Help to notice,there is no power adapter in the packing list, pls prepare by yourself ).Come In Standby Model When Not Input Signal

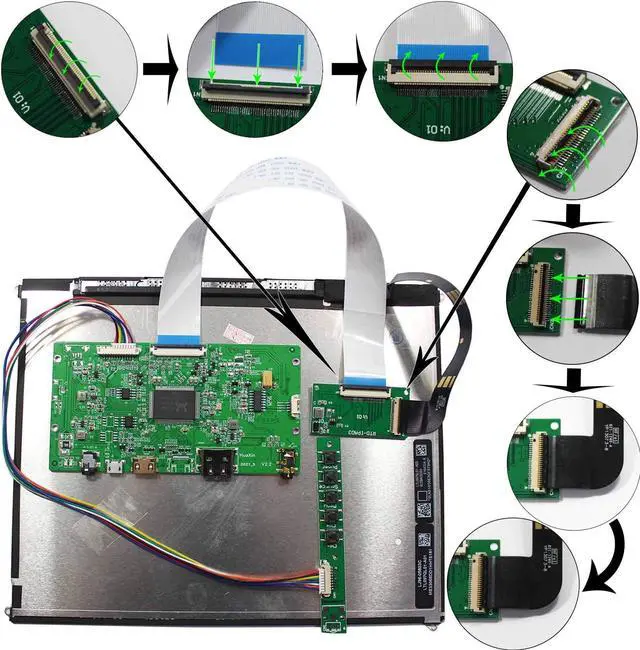

- When you get this product, please follow this page picture to connect,help to notice the cable direction and use a right power supply to power it.
- Packing list : 1× LCD Controller Board VS-RTD09703-V1 1× 9.7inch 2048x1536 IPS LCD Screen(One of LP097QX1 LTL097QL01 HQ097QX1) 1× Converter Board 1× Signal Cable 1× Keyboard With Cable
- Used as a general-purpose display, such as as a sub-display. (Please note the item is used - like new, which is not brand new.)
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

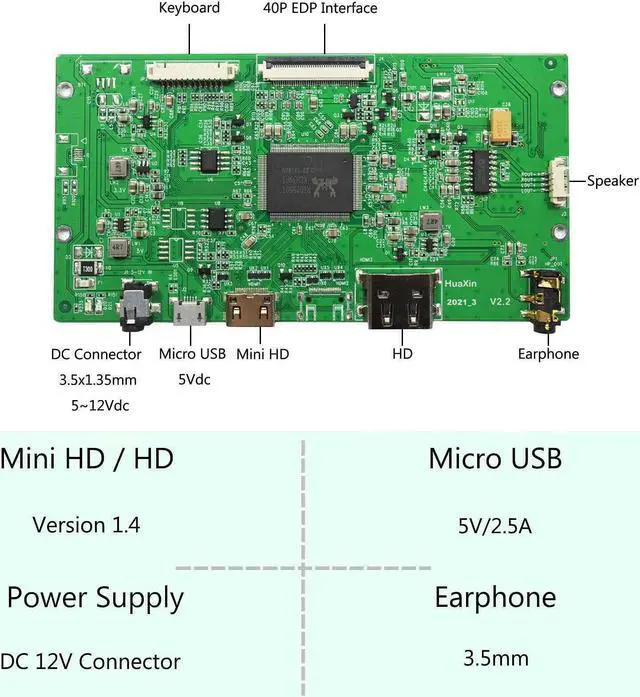

LCD Controller Board:
LCD Board Work for 9.7 inch eDP Interface LCD Screen
Input Power Supply: DC Connector 3.5 mmx 1.35 mm 5~12Vdc Mirco USB 5Vdc.
(Please note the lcd display can only be powered with the DC Connector, which can not be powered with the micro usb port. )
Come In Standby Model When Not Input Signal
Standby Model <1W
Audio Output: Earphone Support Speaker 4ohm 2W or 8ohm 1.5W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

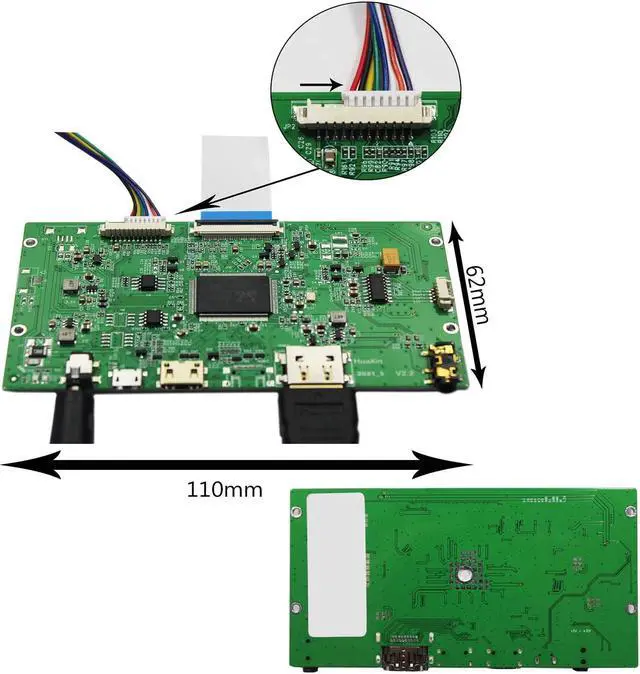

Board Size: 120mm x 62.5 mm x 5mm

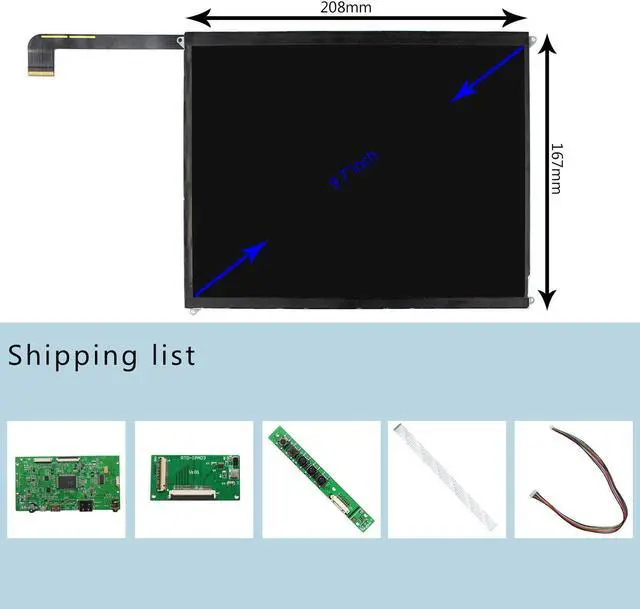

9.7" 2048X1536 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 2048 (RGB) ×1536
Outline Size 208.88 × 167.12 ×5 (H×V×D)mm
Display Area 196.608 × 147.456 (H×V)mm
Brightness 440 cd/m² (Typ. )
Contrast Ratio 600:1 (Typ. ) (TM)
Viewing Angle 89/89/89/89 (Typ. ) (CR10) [Left / Right / Up / Down]
Refresh Rate 60Hz
Signal Interface 51 pins eDP (4 Lanes), FPC
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× LCD Controller Board VS-RTD09703-V1
1× 9.7 inch 2048x1536 IPS LCD Screen (One of LP097QX1 LTL097QL01 HQ097QX1)
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
LCD Board Work for 9.7 inch eDP Interface LCD Screen
Input Power Supply: DC Connector 3.5 mmx 1.35 mm 5~12Vdc Mirco USB 5Vdc.
(Please note the lcd display can only be powered with the DC Connector, which can not be powered with the micro usb port. )
Come In Standby Model When Not Input Signal
Standby Model <1W
Audio Output: Earphone Support Speaker 4ohm 2W or 8ohm 1.5W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 120mm x 62.5 mm x 5mm
9.7" 2048X1536 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 2048 (RGB) ×1536
Outline Size 208.88 × 167.12 ×5 (H×V×D)mm
Display Area 196.608 × 147.456 (H×V)mm
Brightness 440 cd/m² (Typ. )
Contrast Ratio 600:1 (Typ. ) (TM)
Viewing Angle 89/89/89/89 (Typ. ) (CR10) [Left / Right / Up / Down]
Refresh Rate 60Hz
Signal Interface 51 pins eDP (4 Lanes), FPC
Backlight WLED
Input Voltage 3.3V (Typ. )
Packing list:
1× LCD Controller Board VS-RTD09703-V1
1× 9.7 inch 2048x1536 IPS LCD Screen (One of LP097QX1 LTL097QL01 HQ097QX1)
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
