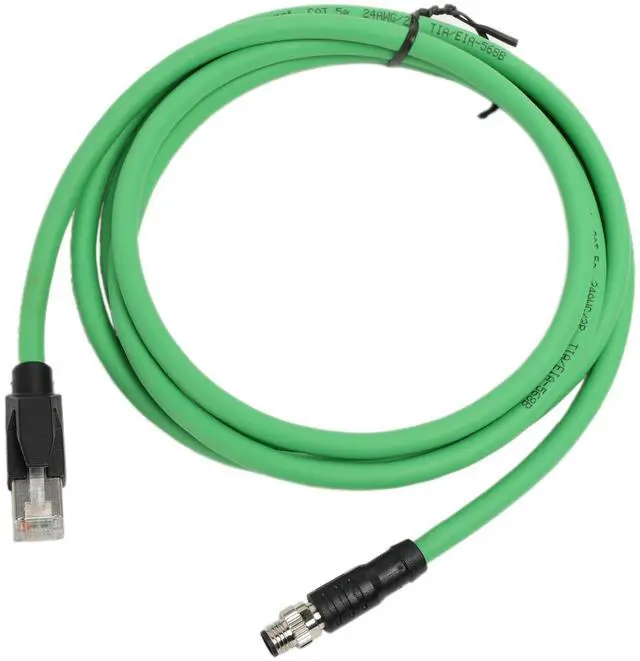

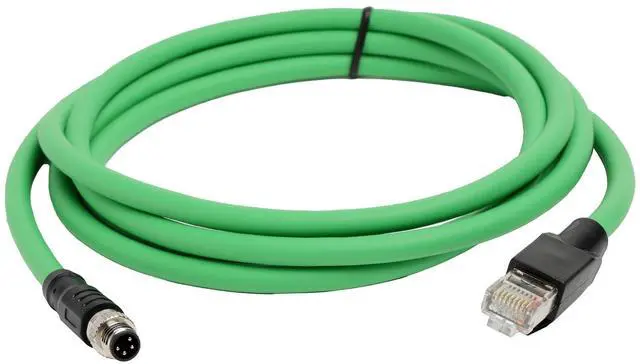

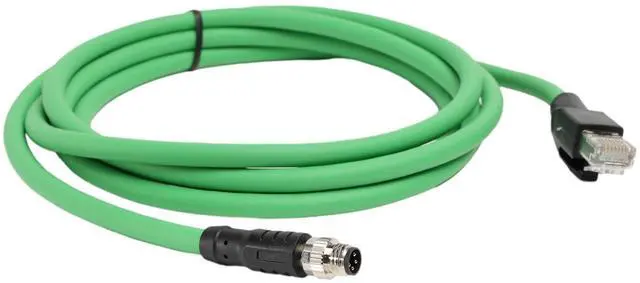

HangTon M8 4Pin A-Coded to RJ45 Network Cable for Beckhoff Actuator Sensor EtherCAT EtherNet Profinet Fieldbus Industrial Automation Control, Cat5e PUR Shielded, 2M
- EtherCAT M8 A-coded 4pin male to RJ45 connector, CAT 5e cable for Beckhoff sensors, providing network, data communication, control, power
- M8 cable is widely utilized in a diverse range of industrial and automation applications, including actuators, sensors (such as proximity, photoelectric, ultrasonic, and temperature sensors), and network communication systems. It supports various industrial protocols like Fieldbus, PROFINET, and EtherCAT, making it ideal for robotics object detection and navigation, and automotive uses. Additionally, it is commonly employed in machine tooling, computers, PLCs, and process control systems
- [CAT.5e Cable] The cable transmits data high speed and stability, up to 1 Gbps. Green PUR jacket, 22AWG. It is resistant to abrasion, oil, dirt, oxidation, bending, heat, flame retardant. It is highly flexible, waterproof dust-proof IP67 and can be used in drag chains and harsh industrial environments

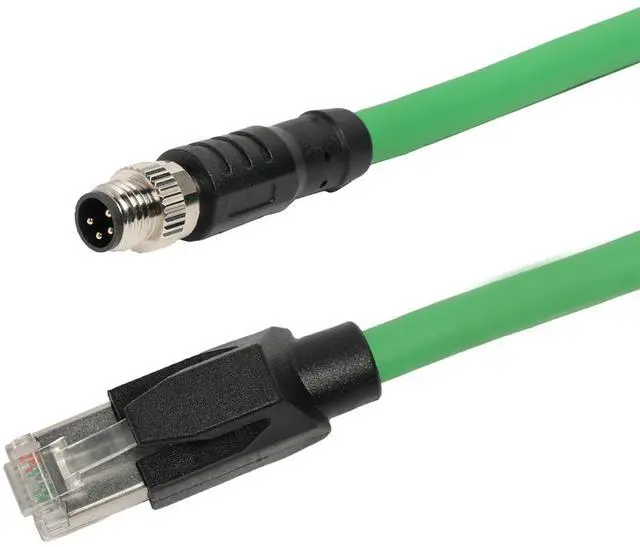

- [M8 4 pin A-coded to RJ45 Connectors] With lock
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

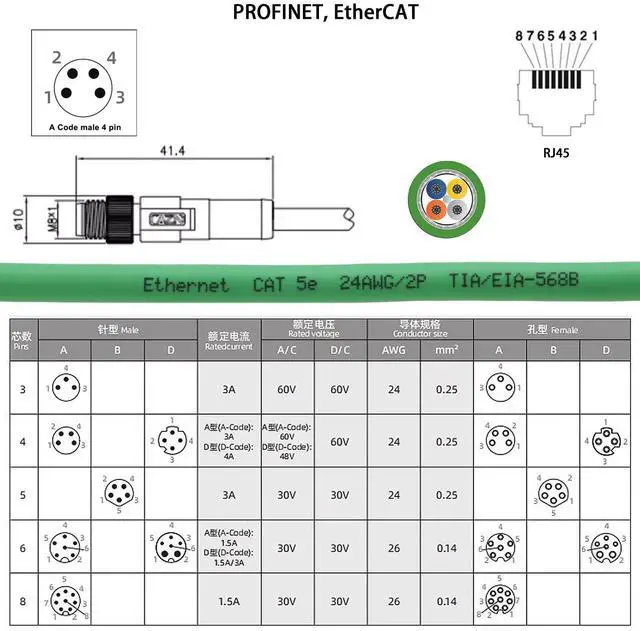

M8 4 Pin A-coded connector, control, power and network cable for sensor actuator.
Connector type: M8 to RJ45 cat5e
Data transfer rate: 1000 Mbps
Stanard EIA/TIA 568B
Rated voltage: 60 VAC/ 75VDC
Rated current: 4 A
Conductor material: copper
Wire
Wire diameter: 6.5 mm
Cable jacket: PUR
Shielding Type: Double Shielding (Braided + Aluminum Foil)
Insulation resistance 100 M
Ambient temperature (operation): -40 °C to 80 °C
M8 Connectors and Cable Assemblies feature a rugged, space-saving design that withstands harsh industrial and weather environments, making them ideal for use in miniature sensors and actuators found in industrial control applications.
Sealed IP67 rating waterproof design.
The m8 sensor connector features a threaded locking mechanism that provides a secure and reliable connection. It helps to prevent accidental disconnections due to vibrations or movements.
The shielded connectors and cables protect signals from electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring signal integrity and accuracy.
We make custom cables.
Connector type: M8 to RJ45 cat5e
Data transfer rate: 1000 Mbps
Stanard EIA/TIA 568B
Rated voltage: 60 VAC/ 75VDC
Rated current: 4 A
Conductor material: copper
Wire
Specifications
: 22 AWG 2*2* 0.3 mm²Wire diameter: 6.5 mm
Cable jacket: PUR
Shielding Type: Double Shielding (Braided + Aluminum Foil)
Insulation resistance 100 M
Ambient temperature (operation): -40 °C to 80 °C
M8 Connectors and Cable Assemblies feature a rugged, space-saving design that withstands harsh industrial and weather environments, making them ideal for use in miniature sensors and actuators found in industrial control applications.
Sealed IP67 rating waterproof design.
The m8 sensor connector features a threaded locking mechanism that provides a secure and reliable connection. It helps to prevent accidental disconnections due to vibrations or movements.
The shielded connectors and cables protect signals from electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring signal integrity and accuracy.
We make custom cables.
