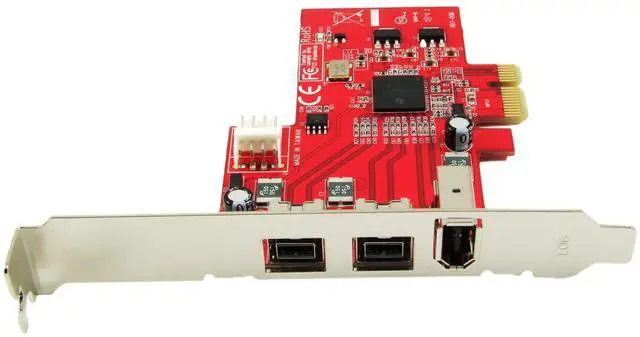

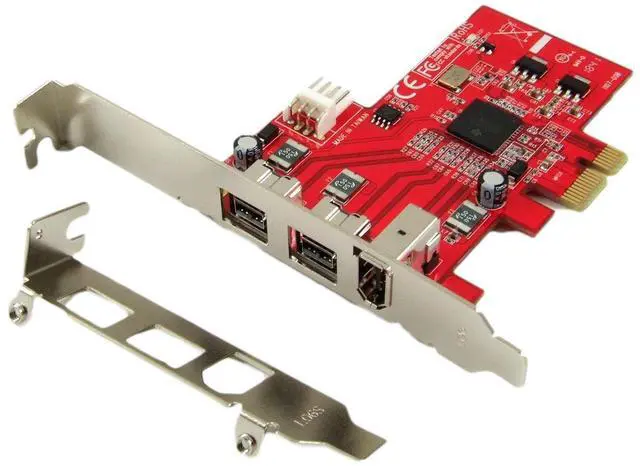

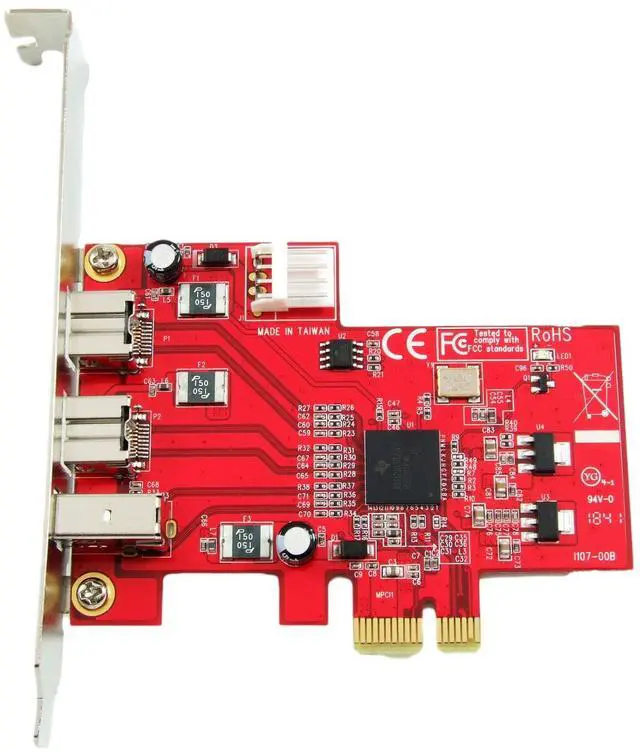

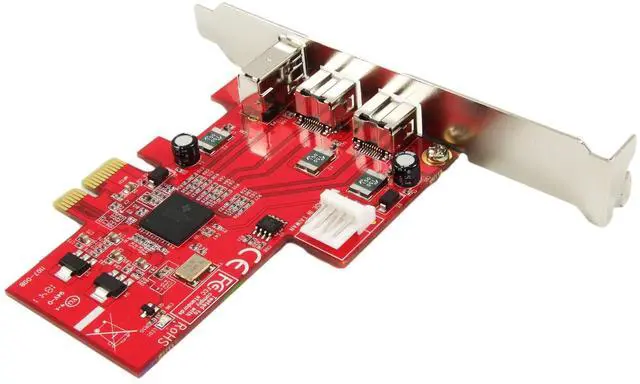

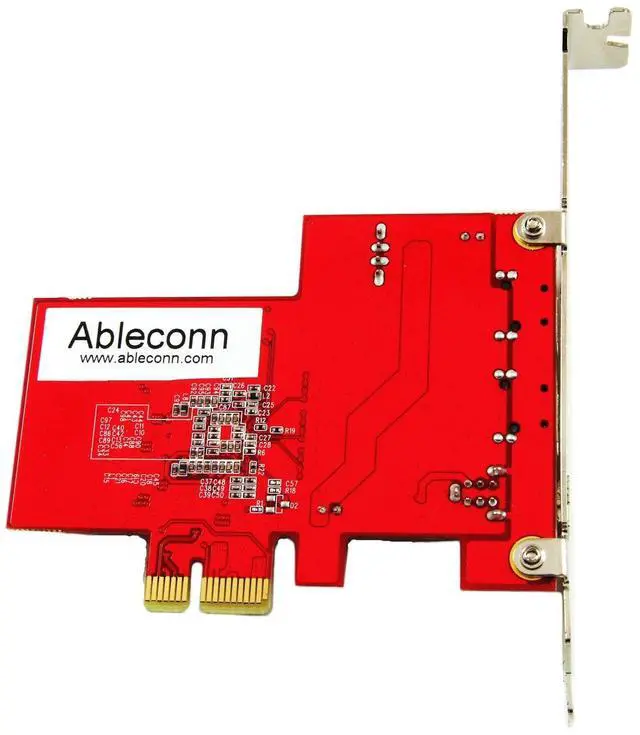

Ableconn PEX-FW107 1394b & 1394a 3-Port PCI Express (PCIe) Low Profile FireWire Host Adapter Card - TI XIO2213 Chipset
- Add two 1394b FireWire 800 ports and one 1394a port to your Mac Pro or Windows system.
- Built with TI XIO2213 chipset. Fast and reliable FireWire expansion.
- Low Profile PCIe Form Factor. Include both Low Profile and Regular Size PCIe brackets
- Compliant with Provisions of IEEE P1394b-2002, IEEE 1394a-2000 and 1394-1995 Standard
- High quality. Fully RoHS compliant. Made in Taiwan.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Add two 1394b FireWire 800 ports and one 1394a port to your Mac Pro or Windows system.
Specification
* Connector:
- 2x P1394b (9-pin) and 1x 1394a-2000 (6-pin)
- PCI Express x1 Male
- 1x SP4 (4-pin; small drive power) Male
* Chipset: TI XIO2213
* Software:
- No driver installation is required on Windows, Mac, and Linux systems.
* Data transfer rate:
- Support 1394 data transfer rate up to 800 Mbps
* Fully Supports Provisions of IEEE P1394b-2002, IEEE 1394a-2000 and 1394-1995 Standard
* Fully compliant with 1394 Open Host Controller Interface (OHCI) Spec 1.1 and Rev 1.2 Draft
* Two Bilingual 1394b 9-pin Ports at S800 or S400b speed
* One 1394a-2000 Fully Compliant 6-Pin Port at S400, S200, S100 speed
* On Board Molex mini 4Pin Power connector to provide sufficient 1394 1.5A /12V bus power from PC power supply
* Supports Plug and Play
* Compliant with PCI Express Specification, revision 1.1
* 1-lane 2.5G bps PCI Express host interface
* Low Profile PCIe Form Factor
* Regular size PCIe bracket on board and an additional Low Profile bracket included
* Fully RoHS compliant.
* Made in Taiwan
Package Contents
* Ableconn 1394b & 1394a 3-Port PCIe FireWire Host Adapter
* 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
* One (1) low profile PCIe bracket
Specification
* Connector:
- 2x P1394b (9-pin) and 1x 1394a-2000 (6-pin)
- PCI Express x1 Male
- 1x SP4 (4-pin; small drive power) Male
* Chipset: TI XIO2213
* Software:
- No driver installation is required on Windows, Mac, and Linux systems.
* Data transfer rate:
- Support 1394 data transfer rate up to 800 Mbps
* Fully Supports Provisions of IEEE P1394b-2002, IEEE 1394a-2000 and 1394-1995 Standard
* Fully compliant with 1394 Open Host Controller Interface (OHCI) Spec 1.1 and Rev 1.2 Draft
* Two Bilingual 1394b 9-pin Ports at S800 or S400b speed
* One 1394a-2000 Fully Compliant 6-Pin Port at S400, S200, S100 speed
* On Board Molex mini 4Pin Power connector to provide sufficient 1394 1.5A /12V bus power from PC power supply
* Supports Plug and Play
* Compliant with PCI Express Specification, revision 1.1
* 1-lane 2.5G bps PCI Express host interface
* Low Profile PCIe Form Factor
* Regular size PCIe bracket on board and an additional Low Profile bracket included
* Fully RoHS compliant.
* Made in Taiwan
Package Contents
* Ableconn 1394b & 1394a 3-Port PCIe FireWire Host Adapter
* 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
* One (1) low profile PCIe bracket
