$85.99
Meet Your Seller
VSDISPLAY 8.4" 4 Wire resistive Touch Panel with USB Controller for 8.4 inch 800x600 LCD Panel
- Compatible work For 8.4inch 800x600 LCD Panel
- USB USB Controller ,Power Requirements D.C.+5V
- Dimension Size: 187mm x 141mm Display Area: 172mm x 129.5mm
- Packing list: 1× 8.4inch 4-Wire Resistive Touch Panel VS084TP-A1 1× 4-Wire USB Controller Card 1× USB Cable 1× Converter Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:

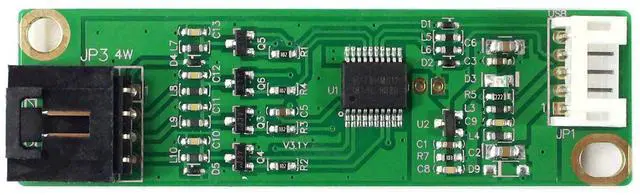

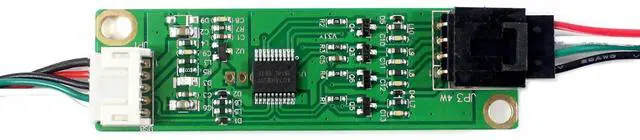

USB USB Controller
Dimension Size: 71mm x 20mm x 10mm
Power Requirements D. C. +5V (100mA typical, 50mV peak to peak maximum ripple and noise)
Operating Temperature 0 to 50°C
Storage Temperature -40 to 80°C
Relative Humidity 95% at 60°C
Interface USB 1.1 & 2.0
Resolution 2048×2048 resolution
Report rate USB Model: Max. 160 points/sec
Response time Max. 20 ms
Attached Cable 6' shielded cable with USB-A connector for USB port
Regulatory Approvals FCC-B, CE, Unaffected by EMI from other nearly and other display devices
EMI Unaffected by environmental EMI
Panel resistance 4 wire resistive model: 200 ~ 900 ohm
MTBF 200, 000 hrs
PIN1: Y-
PIN2: X- PIN3: Y+ PIN4: X+

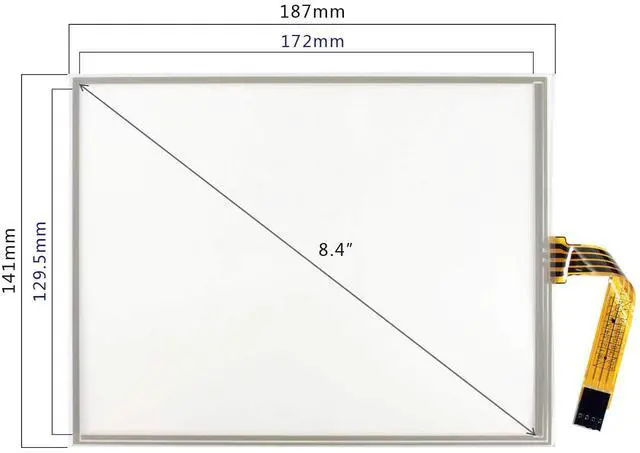

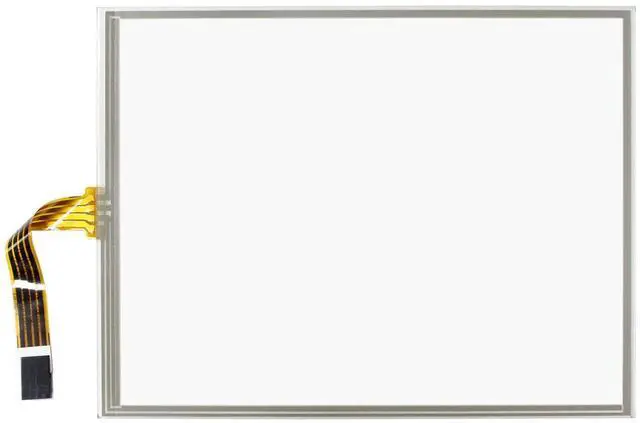

Touch Panel
Dimension Size: 187mm x 141mm
Display Area: 172mm x 129.5 mm
FPC connector: 4pin 0.5 mm pitch bottom contact.
Packing list:
1× 8.4 inch 4-Wire Resistive Touch Panel VS084TP-A1
1× 4-Wire USB Controller Card
1× USB Cable
1× Converter Cable
USB USB Controller
Dimension Size: 71mm x 20mm x 10mm
Power Requirements D. C. +5V (100mA typical, 50mV peak to peak maximum ripple and noise)
Operating Temperature 0 to 50°C
Storage Temperature -40 to 80°C
Relative Humidity 95% at 60°C
Interface USB 1.1 & 2.0
Resolution 2048×2048 resolution
Report rate USB Model: Max. 160 points/sec
Response time Max. 20 ms
Attached Cable 6' shielded cable with USB-A connector for USB port
Regulatory Approvals FCC-B, CE, Unaffected by EMI from other nearly and other display devices
EMI Unaffected by environmental EMI
Panel resistance 4 wire resistive model: 200 ~ 900 ohm
MTBF 200, 000 hrs
PIN1: Y-
PIN2: X- PIN3: Y+ PIN4: X+
Touch Panel
Dimension Size: 187mm x 141mm
Display Area: 172mm x 129.5 mm
FPC connector: 4pin 0.5 mm pitch bottom contact.
Packing list:
1× 8.4 inch 4-Wire Resistive Touch Panel VS084TP-A1
1× 4-Wire USB Controller Card
1× USB Cable
1× Converter Cable
