VGA DVI LCD Controller Board NT68676 for LP156WH1 B156XW01 LTN156AT01 CLAA156WA01A 15.6" 1366x768 1CCFL 30Pins LCD Panel
- Work with 1366x768 30pin 1CCFL LVDs LCD Screen Panel , Video Input: DVI VGA,Audio Output: Speaker Connector
- 12V 3A DC power adapter required and sold separately,port size :5.5x2.1mm

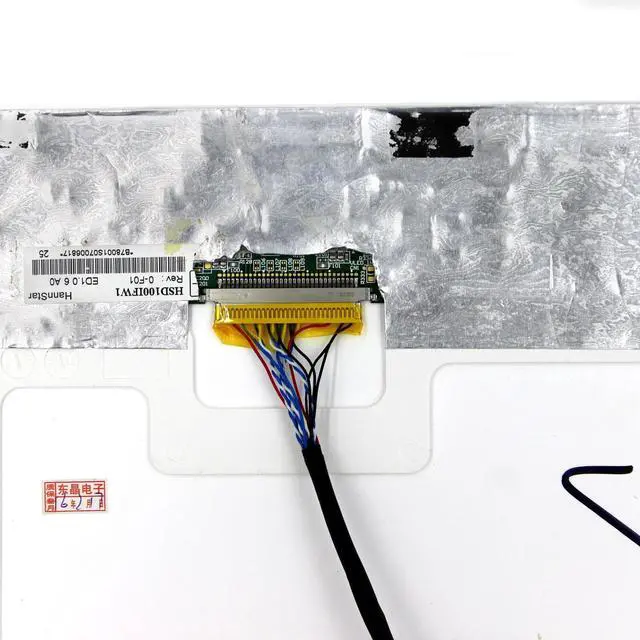

- Compatible screen model no.: LP156WH1 LTN156AT01 N156B3 B156XW01
- Compatible parts: Speaker: 8ohm 2W 70x33x15mm 4Pin PH2.0 connection; Case:Controller Board Case Acrylic Material White Case For M.NT68676 Protect Case
- The function for this board is to light up the screen. Please use in insulated environment. This board is used to work with screen on DIY Monitor displaying,Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.Any question just keep us informed ,we will do our best solve the problem in 12 hours.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Input: H/DAudio
Output: Speaker

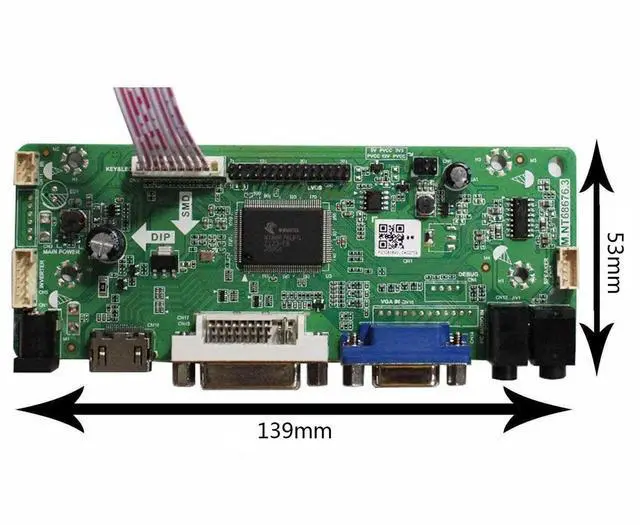

ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mmCompatible

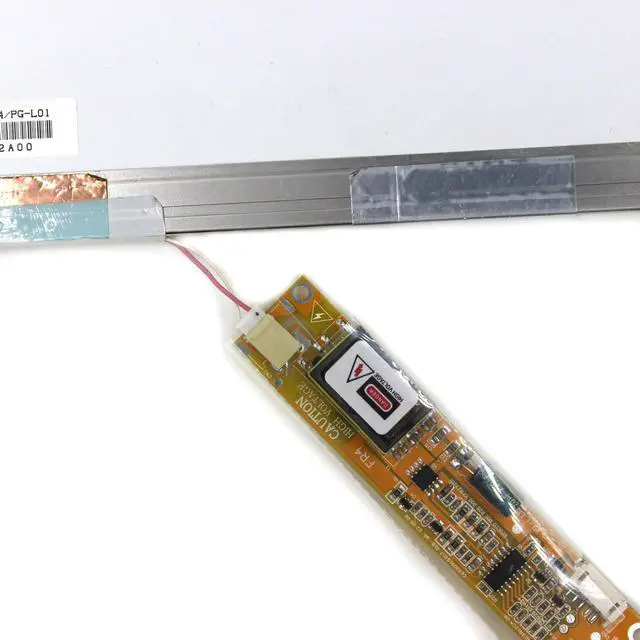

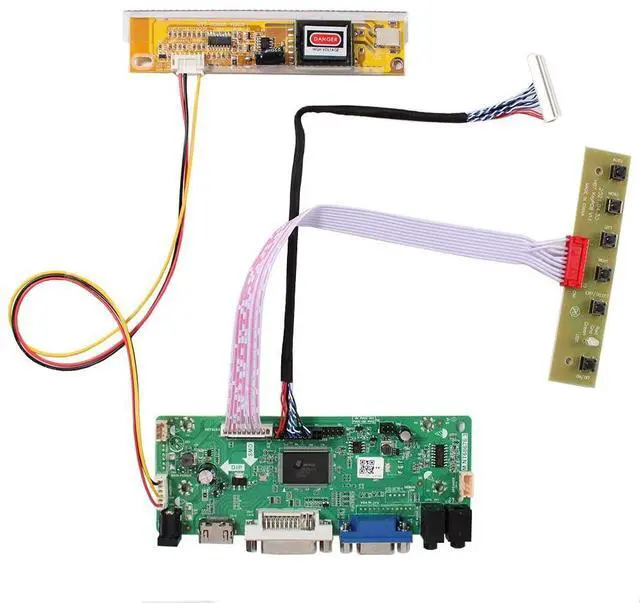

Work With: 15.6 inch 1366x768LP156WH1 LTN156AT01 N156B3 B156XW01 N156B3-L01N156B3-L02 CLAA156WA01APacking list: 1 VGA DVI LCD Controller Board M. NT686761 1CCFL Inverter Board1 30Pin Signal Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input: DVI
VGA
Audio Input: H/DAudio
Output: Speaker
ConnectorOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 139mm x 53mm x 17mmCompatible
Work With: 15.6 inch 1366x768LP156WH1 LTN156AT01 N156B3 B156XW01 N156B3-L01N156B3-L02 CLAA156WA01APacking list: 1 VGA DVI LCD Controller Board M. NT686761 1CCFL Inverter Board1 30Pin Signal Cable1 Keyboard With Cable
