DSD TECH SH-B35 RS485 RS232 to Bluetooth 2.0 Adapter Support Android and Windows
- DSD TECH: DSD TECH focuses on the development of communication connection devices such as USB/Serial/Wireless. We have served more than 100,000 customers in Europe, North America and Japan.

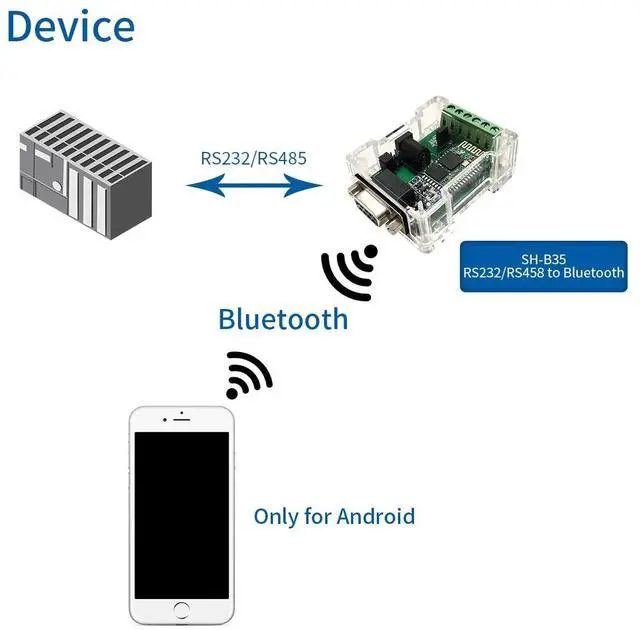

- Bluetooth 2.0 to RS485/RS232: With this Bluetooth RS485 adapter, you can wirelessly communicate with RS485/RS232 devices on Android devices or a Bluetooth enabled Computer.
- Compatibility:Built-in Industrial Bluetooth 2.0 SPP module driven by the CSR BC417 chip. Compatible with Android phones and Bluetooth enabled computers, but not compatible with any iOS device.

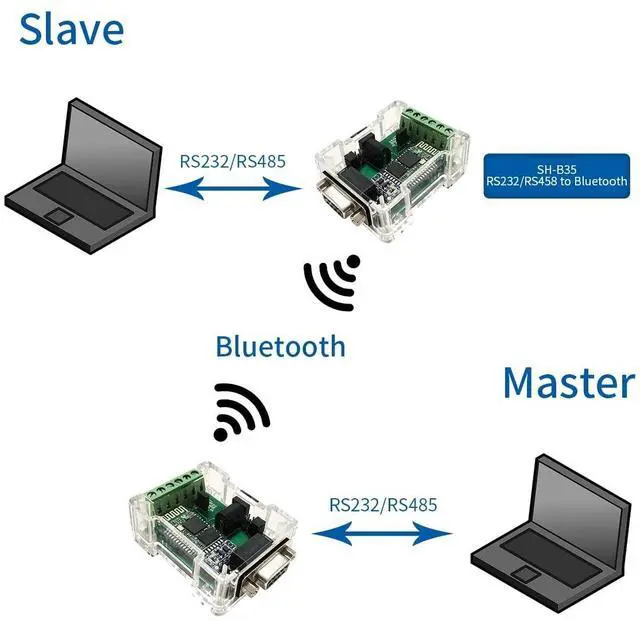

- Working mode: Supports master mode and slave mode. Two SH-B35 adapters can form a Bluetooth connection network.
- Customer Support: DSD TECH provides permanent technical support and 1 year product replacement service for this RS485 RS232 to Bluetooth 2.0 Adapter. All questions will be answered within 1 working day.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SH-B35 is an RS485/RS232 to Bluetooth converter. It is an upgraded version of SH-B23A (SH-B20) and SH-B30. With this converter, your computer or Android phone can connect to RS485/RS232 devices via
Bluetooth.
Model:
SH-B35Bluetooth: Bluetooth v 2.0 + EDR Class 2
RadioDefault Baud Setting: 9600, N, 8, 1RS485: Half-duplex
transceiverCurrent draw: Max 90mABluetooth authentication
PIN:

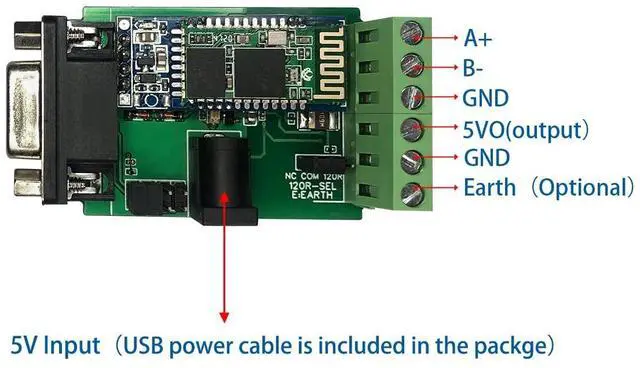

1234Distance: more than 20 metersRS485
Signals: A+, B-, GNDRS232
Signals: DB9(RxD, TxD, GND)Power
supply: 5V
DCOperating temp: -20C to 85CSupport Microsoft Windows Bluetooth COM portConfiguration via Serial PortTypical Application - Microsoft Windows Bluetooth COM PortThis application requires install this Bluetooth adapter on Microsoft Windows, and Bluetooth connection to computer is required. A virtual COM port is created for this adapter after installation. User application software can access this adapters RS485/RS422 interface usingthe virtual COM port. Here are the steps to install this adapter on Microsoft Windows. The adapters authentication pin code is 1234.

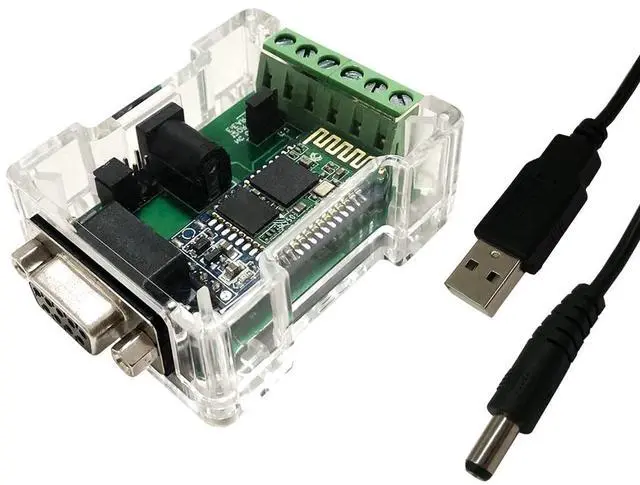

Package Content: 1 x SH-B35 RS485/RS232 to Bluetooth Converter1 x USB Power cable1 x
User ManualAbout Warranty: DSD TECH offers a 24-month warranty on this RS485/RS232 to Bluetooth Converter. If you have any questions, please contact us and we will resolve your issue within 24 hours.
Bluetooth.
Specifications
:Model:
SH-B35Bluetooth: Bluetooth v 2.0 + EDR Class 2
RadioDefault Baud Setting: 9600, N, 8, 1RS485: Half-duplex
transceiverCurrent draw: Max 90mABluetooth authentication
PIN:
1234Distance: more than 20 metersRS485
Signals: A+, B-, GNDRS232
Signals: DB9(RxD, TxD, GND)Power
supply: 5V
DCOperating temp: -20C to 85CSupport Microsoft Windows Bluetooth COM portConfiguration via Serial PortTypical Application - Microsoft Windows Bluetooth COM PortThis application requires install this Bluetooth adapter on Microsoft Windows, and Bluetooth connection to computer is required. A virtual COM port is created for this adapter after installation. User application software can access this adapters RS485/RS422 interface usingthe virtual COM port. Here are the steps to install this adapter on Microsoft Windows. The adapters authentication pin code is 1234.
Package Content: 1 x SH-B35 RS485/RS232 to Bluetooth Converter1 x USB Power cable1 x
User ManualAbout Warranty: DSD TECH offers a 24-month warranty on this RS485/RS232 to Bluetooth Converter. If you have any questions, please contact us and we will resolve your issue within 24 hours.
