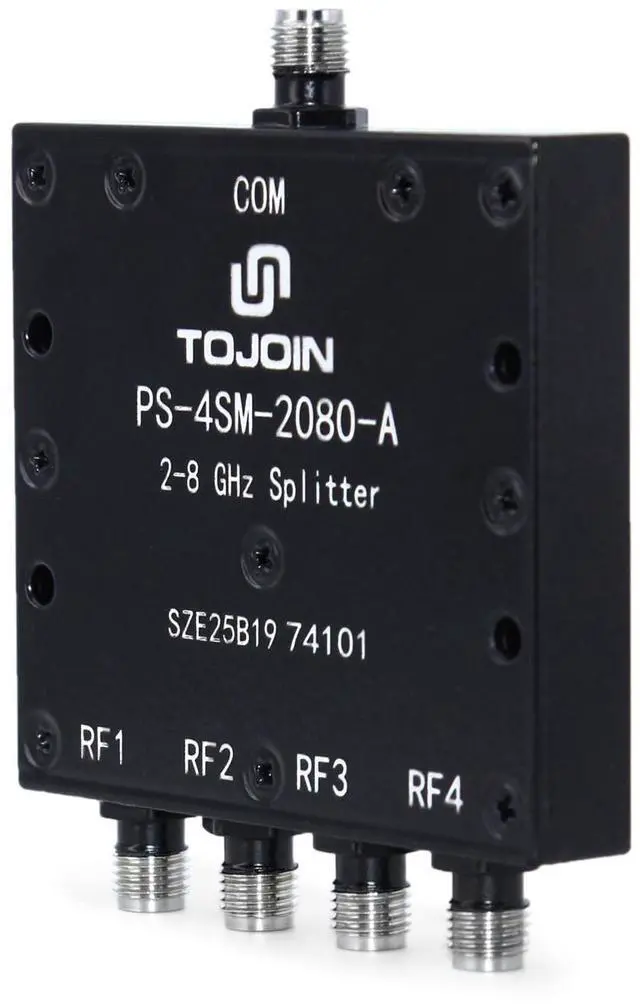

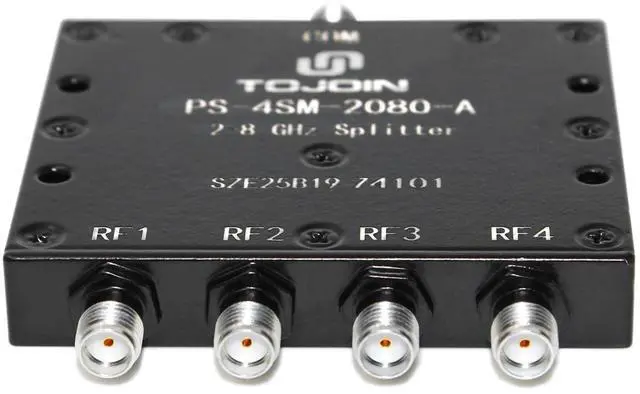

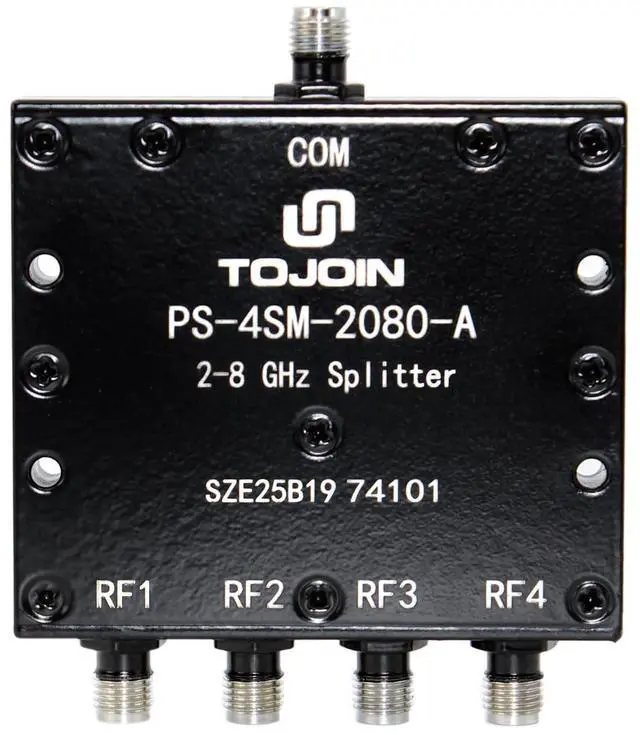

TOJOIN Passive Power Splitter/Divider 4 Way for SMA Connectors, Coaxial Cable Splitter 2-8GHz for RF/Microwave Measurements Accessories Splitter Coaxial, for Antenna System (PS-4SM-2080)

Features of
Power Splitter: The larger signal is divided into four output ports. When the working frequency is 2.4 - 2.5GH z, the typical insertion loss of power splitter is 6.5 dB and the maximum is only 6.8 dB. When the operating frequency is 5.7 -8GHz, the typical insertion loss of the power splitter is 6.8 dB and the maximum is only 7.2 dB. 4-way 50ohm rf splitter SMA female connectors 2-8GHz.
^^ Relevant Parameters: When the working frequency is 2.4 - 2.5GH z, the typical value of insertion loss is 6.5 dB and the maximum value is only 6.8 dB. When the operating frequency is 5.7 -8GHz, the typical value of insertion loss is 6.8 dB and the maximum value is 7.2 dB. The minimum value of isolation is 20dB. The typical value of the input VSWR is 1.25, and the maximum value is 1.5. The typical value of the output VSWR is 1.25, and the maximum value is 1.35. ^^ Advantages of 4
Way SMA Connector: Designed to split an amplified signal to four antennas with minimum signal loss. Low insertion loss, high gain and isolation coefficient, stable performance, etc. Easy to install, plug and play, convenient to use. ^^ High Quality Material & Corrosion Resistant: Made of high quality material, unobstructed transmission and good performance. Corrosion resistant, sturdy and durable, perfect for antenna systems. But this product cannot be used for TV. ^^
Pre-Sale & After-Sale Services: If you are not sure about the application and parameters of the product, please ask us questions in Customer Q&A. Custom torques available at TOJOIN. com.
