UCTRONICS PoE Hat for Raspberry Pi 5, Power Over Ethernet HAT for Raspberry Pi 4B/3B+, Support 802.3af PoE Network Standard with Heatsinks and Onboard Cooling Fan
- Note: Always install all four hex standoffs when mounting the PoE HAT to prevent metal contact and electrical arcing

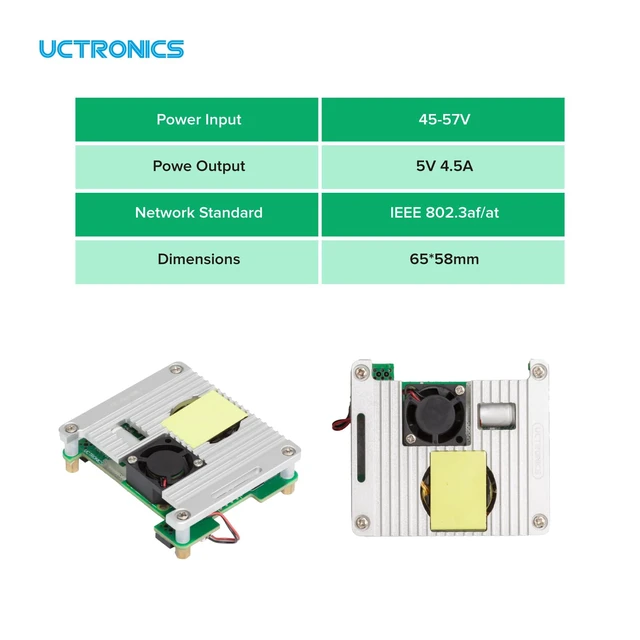

- Power Budget: This PoE+ HAT is IEEE 802.3af/at compliant, maximum output power of 5V 4.5A, requires PSE device port to provide at least 45-57V, 25W of power output
- Fully isolated switched-mode power supply (SMPS)

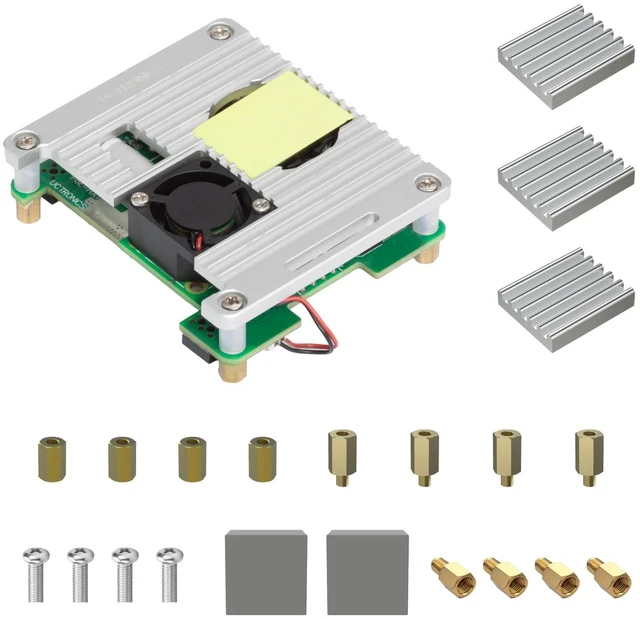

- Efficient Heat Dissipation: This Raspberry Pi PoE hat comes with a brushless active cooling fan, 3 thermal tapes (preinstalled) and 4 heatsinks, one for the hat board and the other 3 for Raspberry Pi

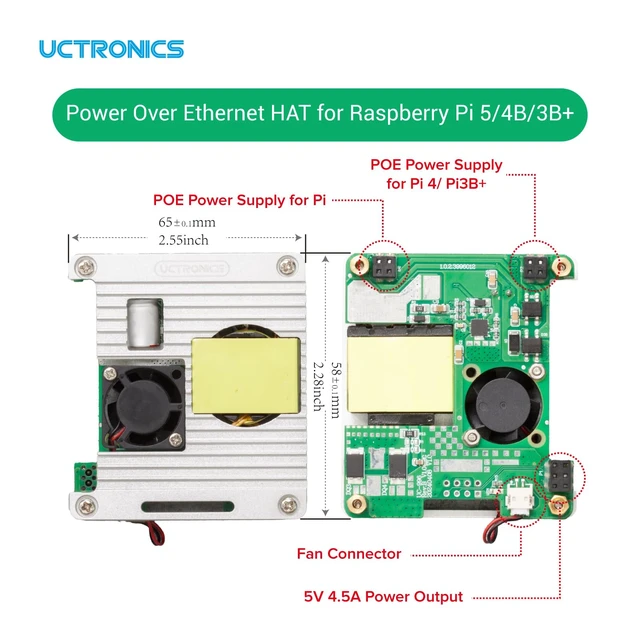

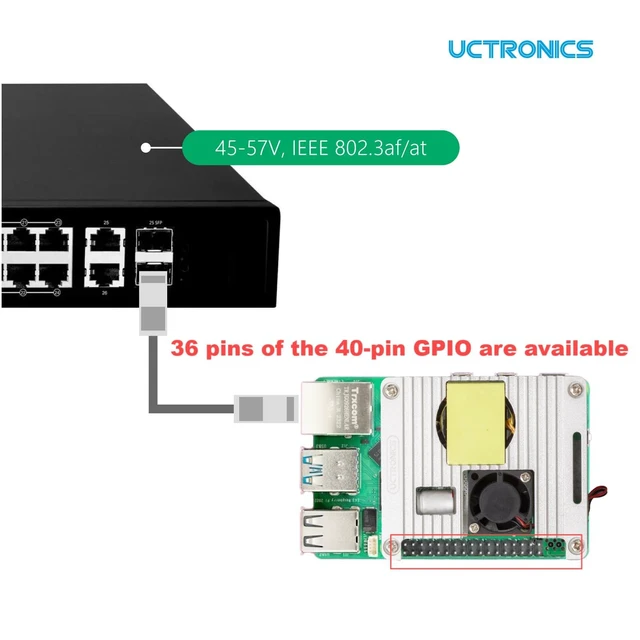

- Compact Size: This Raspberry Pi hat occupies only 6 pins of the 40-pin GPIO and measures only 65*58mm

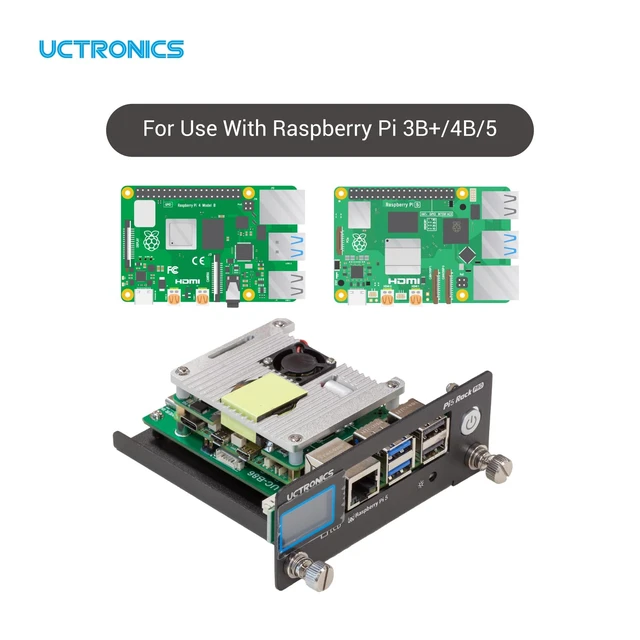

- Pre-assembled: This PoE hat is pre-assembled, easy to set up to work with Raspberry Pi 5/4B/3B+, and also supports mounting on most of UCTRONICS's rackmounts, e.g., RM0013/RM0004
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Note: Always install all four hex standoffs when mounting the PoE HAT to prevent metal contact and electrical arcing ^^
Power Budget: This PoE+ HAT is IEEE 802.3 af/at compliant, maximum output power of 5V 4.5A, requires PSE device port to provide at least 45-57V, 25W of power output ^^ Fully isolated switched-mode power supply (SMPS) ^^
Efficient Heat Dissipation: This Raspberry Pi PoE hat comes with a brushless active cooling fan, 3 thermal tapes (preinstalled) and 4 heatsinks, one for the hat board and the other 3 for Raspberry Pi ^^
Compact Size: This Raspberry Pi hat occupies only 6 pins of the 40-pin GPIO and measures only 65*58mm ^^
Pre-assembled: This PoE hat is pre-assembled, easy to set up to work with Raspberry Pi 5/4B/3B+, and also supports mounting on most of UCTRONICS's rackmounts, e. g., RM0013/RM0004
Power Budget: This PoE+ HAT is IEEE 802.3 af/at compliant, maximum output power of 5V 4.5A, requires PSE device port to provide at least 45-57V, 25W of power output ^^ Fully isolated switched-mode power supply (SMPS) ^^
Efficient Heat Dissipation: This Raspberry Pi PoE hat comes with a brushless active cooling fan, 3 thermal tapes (preinstalled) and 4 heatsinks, one for the hat board and the other 3 for Raspberry Pi ^^
Compact Size: This Raspberry Pi hat occupies only 6 pins of the 40-pin GPIO and measures only 65*58mm ^^
Pre-assembled: This PoE hat is pre-assembled, easy to set up to work with Raspberry Pi 5/4B/3B+, and also supports mounting on most of UCTRONICS's rackmounts, e. g., RM0013/RM0004
