Haldzemo 1500W 30A Adjustable Voltage DC 10-60V to 12-90V Boost Converter Constant Current Step Up Power Supply Module with Fan

Specification: Input
Voltage: DC 10V to 60VInput
Current: 30A (input voltage 10V to 30V) or 25A (input voltage 31V to 60V)
Static working voltage: 15mAOutput
Voltage: 12V to 90V (adjustable, default is 19V)Output
Current: Max 20A (please enhance heat dissipation when current is over 15A) Constant

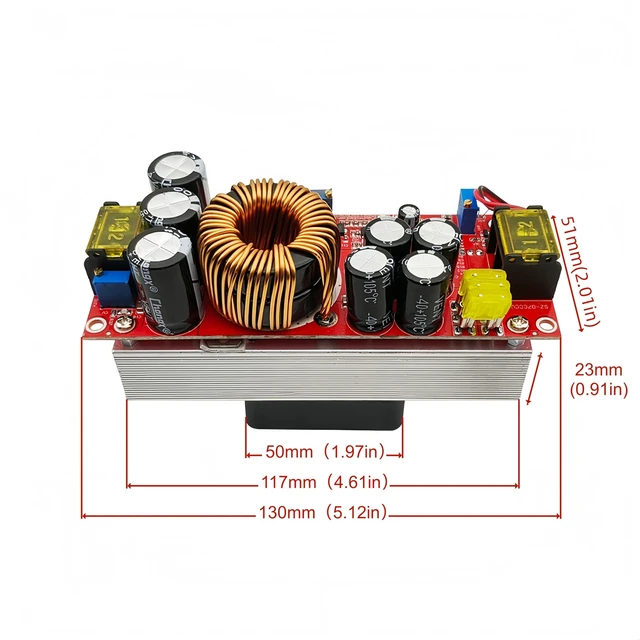

Current Range: 0.8A to 20A(+/- 0.3A )Heatsink size: 117*51*23mmModule
size: 130*51*70mmModule
weight: 350gOperating
Temperature: - 40 to +65 (if temperature is too high, please
enhance heat dissipation)Frequency: 150KHzConversion
Efficiency: 92% to 97%Lower
Voltage Protection: Yes (8V to 50V adjustable, self-recovery)Input
Over-current Protection: Yes (automatically protect when input is more than 35A, and power supply voltage will not increase)Short
Circuit Protection: Yes (input 30A fuse)

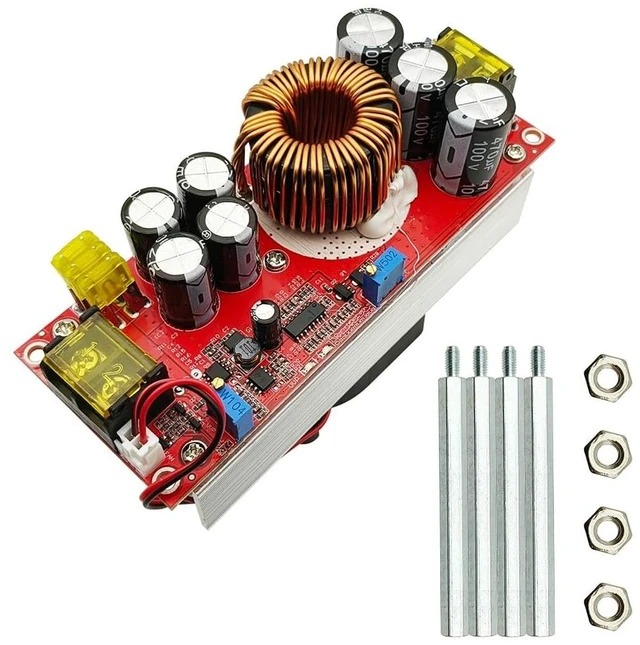

Input reverse connection protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)Install method: 4pcs 3mm copper columnsWiring
Method: Terminals (please use large current copper wire)

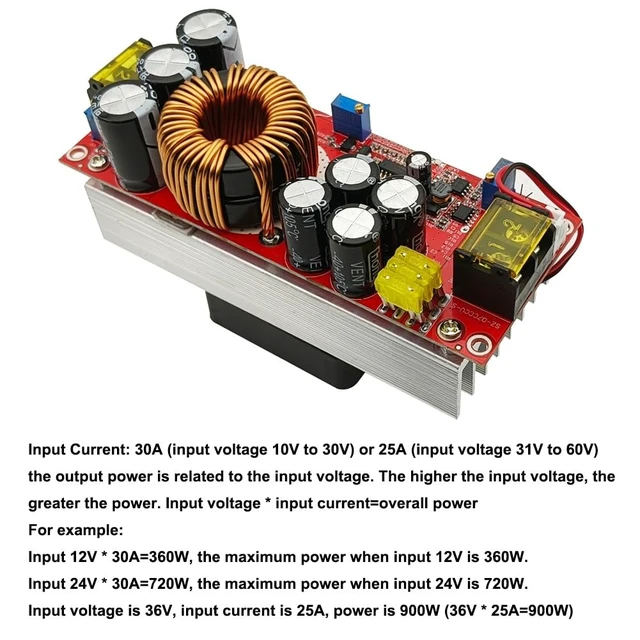

Power Description: Due to the input current is 30A at 10-30V and 25A at 31-60V, the output power is related to the input voltage. The higher the input voltage, the greater the power. Input voltage * input current=overall powerFor example: Input 12V * 30A=360W, the maximum power when input 12V is 360W. Input 24V * 30A=720W, the maximum power when input 24V is 720W. Input voltage is 36V, input current is 25A, power is 900W (36V * 25A=900W)
