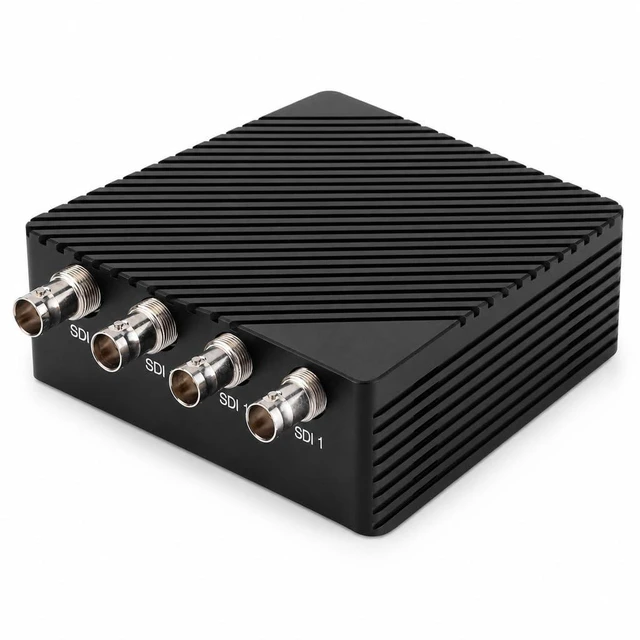

CIUCIMEE 4-Channel 3G-SDI Video Capture Card Thunderbolt 3 4 USB4 1080p60

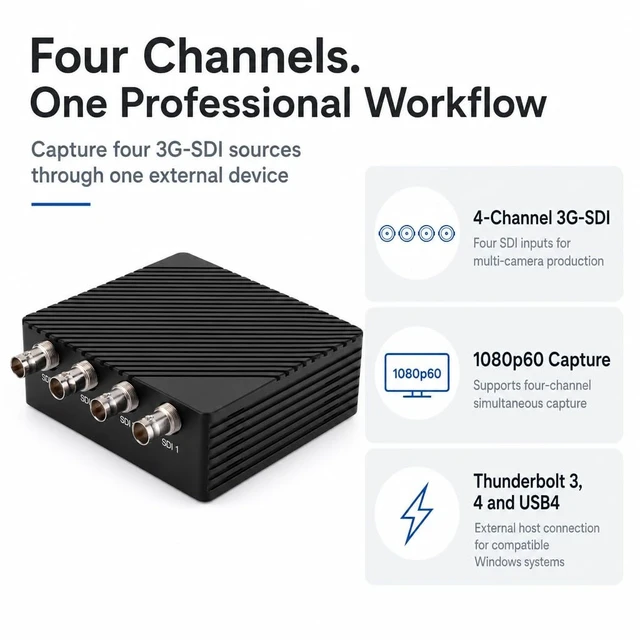

- Four-Channel SDI Capture: Capture four 3G-SDI video sources at the same time at 1080p60. This multi-camera SDI capture card is designed for live production, event recording, video conferencing and broadcast SDI workflows
- Thunderbolt And USB4 Connection: Connect the Thunderbolt SDI capture card to a Windows host with Thunderbolt 3, Thunderbolt 4 or USB4. The Thunderbolt 4 interface supports 40Gbps. Standard USB 3.0, 3.1 and 3.2 ports are not supported

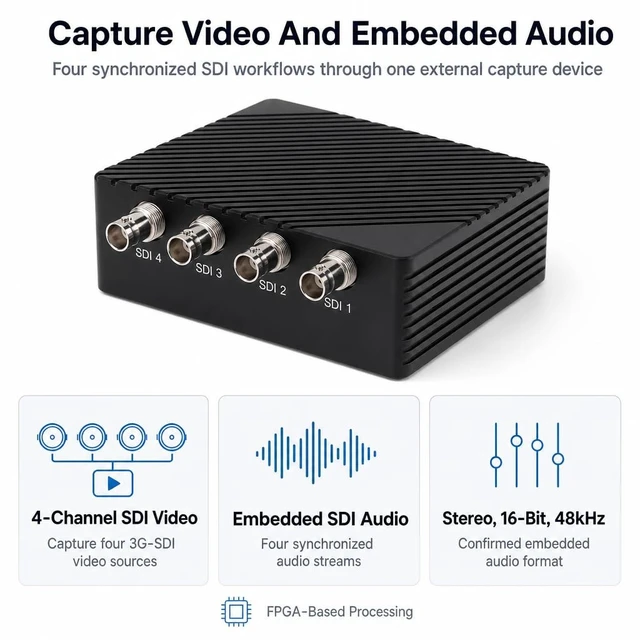

- Embedded SDI Audio: Capture embedded audio from all four SDI inputs together with the video. Audio support includes stereo, 16Bit and 48000Hz for synchronized multi-input video capture and live production capture

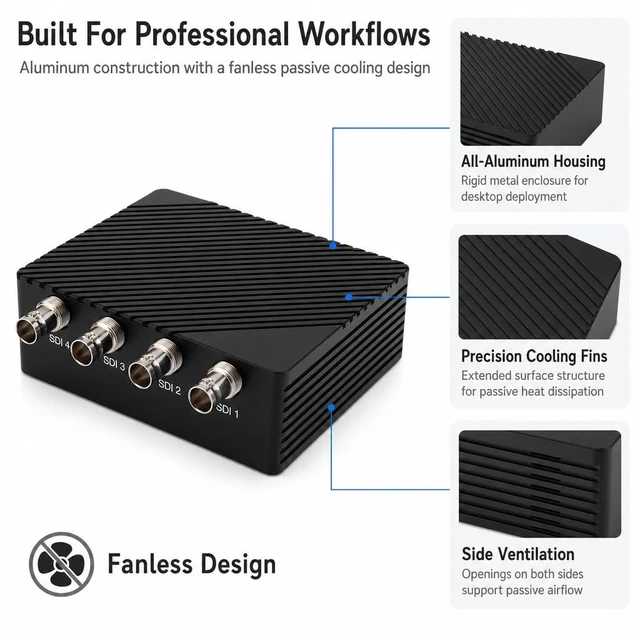

- Bus-Powered Aluminum Housing: The USB4 SDI capture card uses an FPGA, aluminum housing, cooling fins and ventilation openings on both sides. Fanless passive cooling and bus power eliminate the need for an external power adapter
- Windows And Driver Requirements: Supports Windows 10 and Windows 11 and requires driver inst
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
CIUCIMEE WK5000 SDI 4-Channel Video Capture CardWK5000 SDI is an external 4-channel 3G-SDI video capture card for multi-camera video ingest. It captures four 3G-SDI sources at the same time at 1080p60 for live production, recording, video conferencing, event production and other SDI workflows. Thunderbolt SDI Capture CardConnect to a Windows host through Thunderbolt 3, Thunderbolt 4 or USB4. The Thunderbolt 4 interface supports 40Gbps. Standard USB 3.0, USB 3.1 and USB 3.2 ports are not supported. Driver installation is required before use. Four Video Inputs with Embedded AudioFour 3G-SDI inputs support synchronized multi-input video capture.
Supported video formats include 1920 x 1080p at 60, 50, 30, 25 and 24 fps; 1920 x 1080i at 60 and 50 fps; 1280 x 720p at 60, 50, 30 and 25 fps; 720 x 480i at 60 fps; and 720 x 576i at 50 fps. The raw video format is YUY2. Embedded SDI audio supports stereo, 16Bit and 48000Hz. Fanless Bus-Powered DesignThe external SDI capture device uses an FPGA, aluminum housing, cooling fins and ventilation openings on both sides. Fanless passive cooling supports use in production environments without an internal fan.

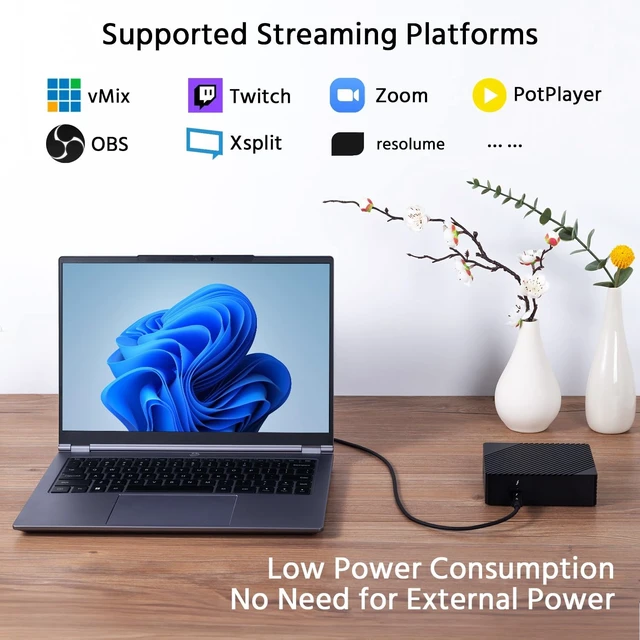

The device is bus powered and does not require an external power adapter. Product size is 11.6 x 9.9 x 4.0 cm. Compatibility and Package InformationThe device supports Windows 10 and Windows 11. macOS is not supported. The host computer must provide Thunderbolt 3, Thunderbolt 4 or USB4, and the selected capture software must support the installed driver and device. The package includes one WK5000 SDI unit, one TB4 data cable and one user manual.
Supported video formats include 1920 x 1080p at 60, 50, 30, 25 and 24 fps; 1920 x 1080i at 60 and 50 fps; 1280 x 720p at 60, 50, 30 and 25 fps; 720 x 480i at 60 fps; and 720 x 576i at 50 fps. The raw video format is YUY2. Embedded SDI audio supports stereo, 16Bit and 48000Hz. Fanless Bus-Powered DesignThe external SDI capture device uses an FPGA, aluminum housing, cooling fins and ventilation openings on both sides. Fanless passive cooling supports use in production environments without an internal fan.
The device is bus powered and does not require an external power adapter. Product size is 11.6 x 9.9 x 4.0 cm. Compatibility and Package InformationThe device supports Windows 10 and Windows 11. macOS is not supported. The host computer must provide Thunderbolt 3, Thunderbolt 4 or USB4, and the selected capture software must support the installed driver and device. The package includes one WK5000 SDI unit, one TB4 data cable and one user manual.
