3Pcs ZB CC2531 USB Dongle Module Bare Board Packet Protocol Analyzer USB Interface Dongle Supports BASICZBR3 S31 Lite zb
- 3Pcs ZB CC2531 USB Dongle Module Bare Board Packet Protocol Analyzer USB Interface Dongle Supports BASICZBR3 S31 Lite zb
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
To run ZB 2mqtt for the control of ZB products like BASICZBR3, S31 Lite Zb in your home automation system, a CC2531 USB dongle integration is recommended.

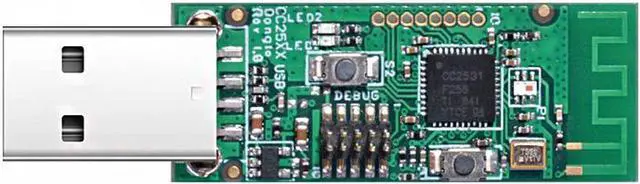

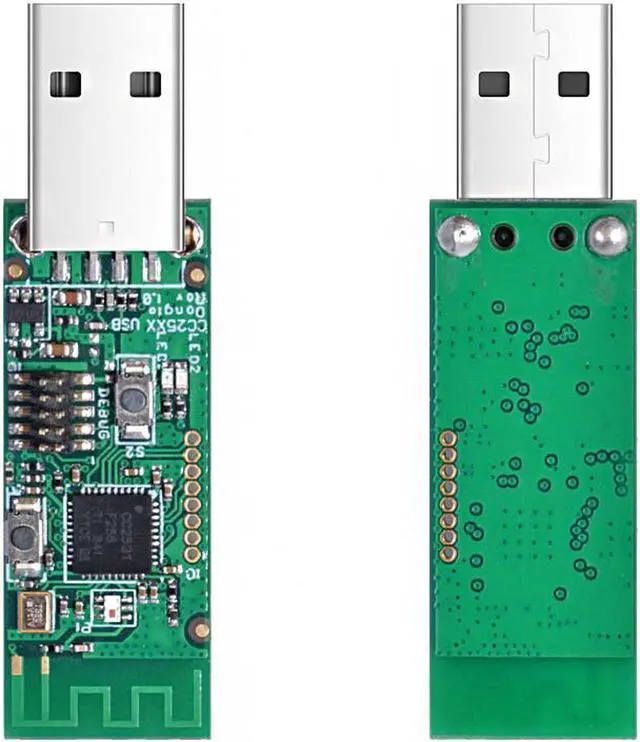

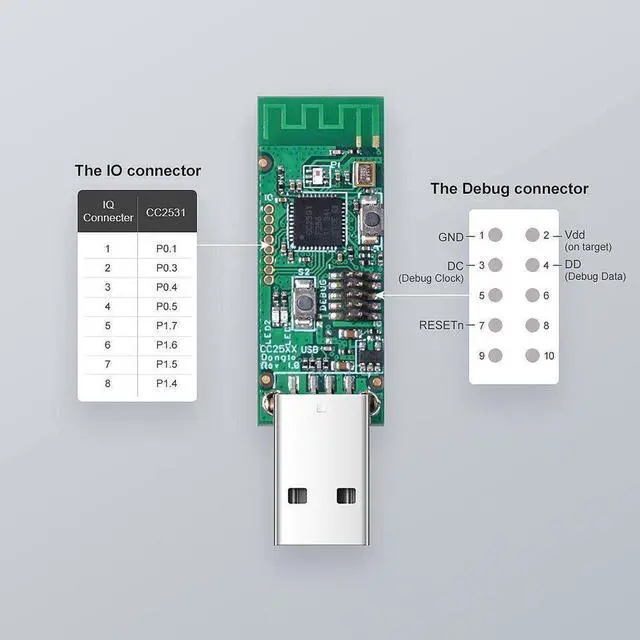

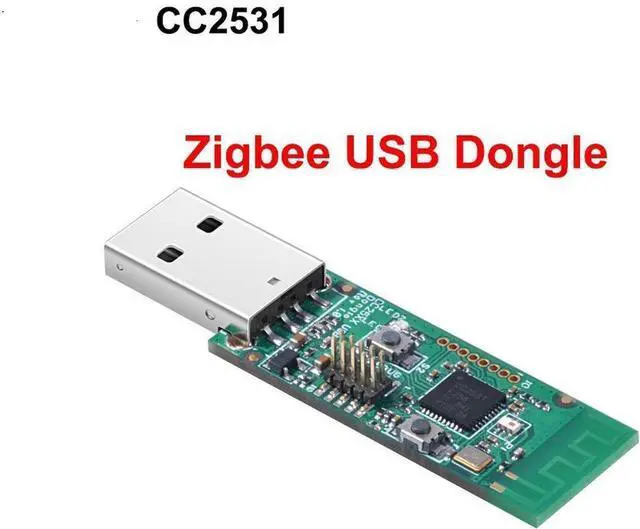

Features: * The CC2531 USB dongle is a fully operational USB device which provides a PC interface to IEEE 802.15. 4 / ZB applications. * Comes with a CC2531ZNP-Prod firmware, it is a ready-to-go CC2531 USB dongle for ZB 2mqtt application. * The dongle can be plugged directly into your PC/Raspberry etc used as a ZB packet sniffer. * Two buttons and two LEDs for user interaction. * Lead out 8 IO connectors. Debug interface. USB dongle size is 5.6 * 1.6 * 0.7 cm.

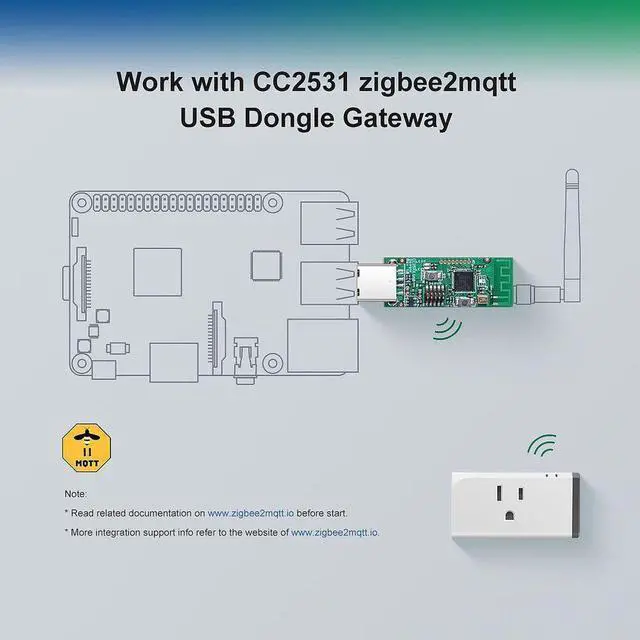

Usage: How to integrate the ZB products into your home automation system? Please refer to the website of ZB 2mqtt. io for more information. As ITEAD has already done the firmware flash of CC2531ZNP-Prod for CC2531 USB dongle, you can directly start with the section of Running ZB 2mqttPackage
Information: Package
Size: Approach. 11.8 *11* 2.6 cm / 4.6 * 4.3 *1inPackage
Weight: Approach. 8g/ 0.28 oz (1PCS)
Package Included: 3 x ZB CC2531 USB Dongle Module
Features: * The CC2531 USB dongle is a fully operational USB device which provides a PC interface to IEEE 802.15. 4 / ZB applications. * Comes with a CC2531ZNP-Prod firmware, it is a ready-to-go CC2531 USB dongle for ZB 2mqtt application. * The dongle can be plugged directly into your PC/Raspberry etc used as a ZB packet sniffer. * Two buttons and two LEDs for user interaction. * Lead out 8 IO connectors. Debug interface. USB dongle size is 5.6 * 1.6 * 0.7 cm.
Usage: How to integrate the ZB products into your home automation system? Please refer to the website of ZB 2mqtt. io for more information. As ITEAD has already done the firmware flash of CC2531ZNP-Prod for CC2531 USB dongle, you can directly start with the section of Running ZB 2mqttPackage
Information: Package
Size: Approach. 11.8 *11* 2.6 cm / 4.6 * 4.3 *1inPackage
Weight: Approach. 8g/ 0.28 oz (1PCS)
Package Included: 3 x ZB CC2531 USB Dongle Module
