SPECIFICATION:

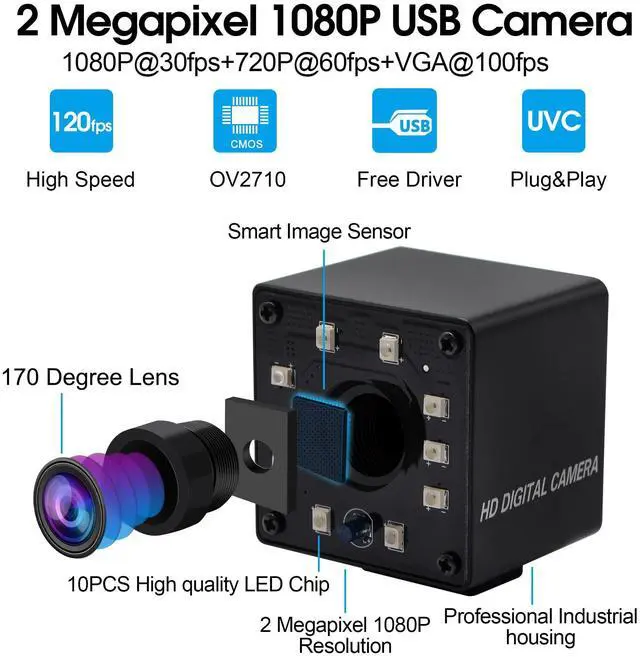

Sensor 1/ 2.7" CMOS OV2710
Lens size 200W, 2.0 megapixel, 1920 (H) x1080 (V) pixels
Max. Resolution 1920X1080
Picture format MJPEG/YUY2

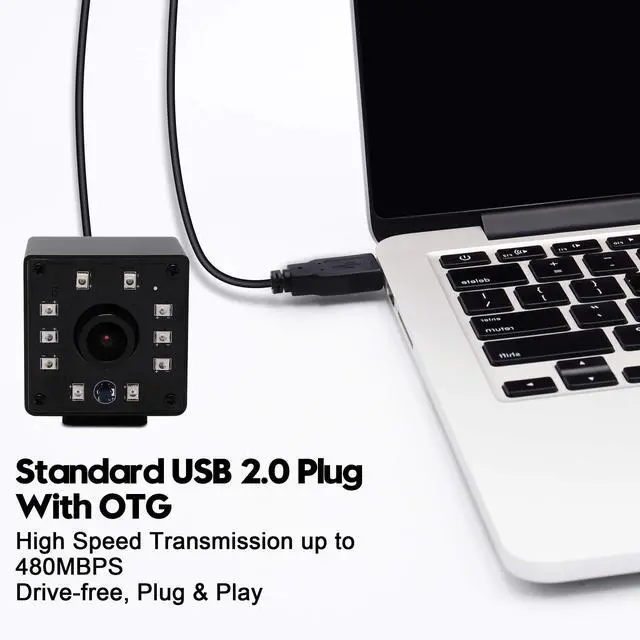

USB Protocal USB 2.0 HS/FS, USB 1.1 FS
Support free driver USB Video Class (UVC) 1.1
Auto exposure AEC Support
Auto white blance AEB Support
Number of effective pixels: 1920 (H) x 1080 (V) pixels / 1280 (H) x 1024 (V) pixels / 1280 (H) x 720 (V) pixels / 1024 (H) x 768 (V) pixels / 800 H) x 600 (V) pixels / 640 (H) x 480 (V) pixels / 352 (H) x 288 (V) pixels / 320 (H) x 240 (V) pixels

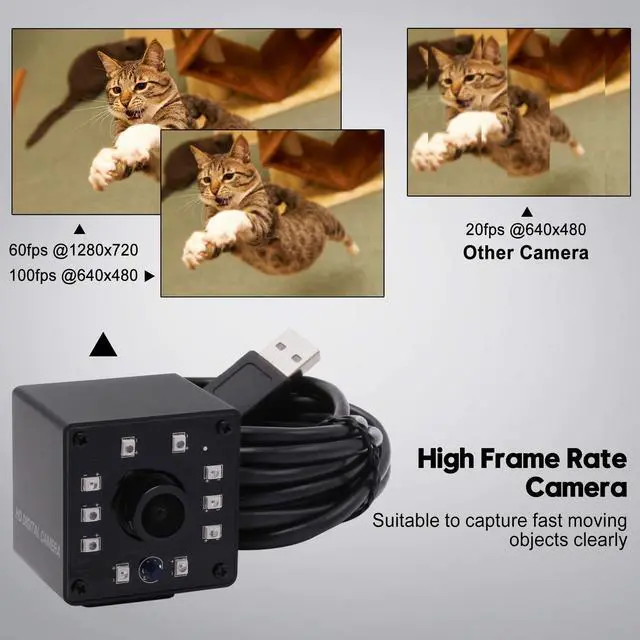

Frame rate
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
Adjustable parameters
Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision With 10pcs ir led for night vision
voltage DC 5V
current 150mA
work temperature EGREES(-20~70)
Size 42x36x48mm

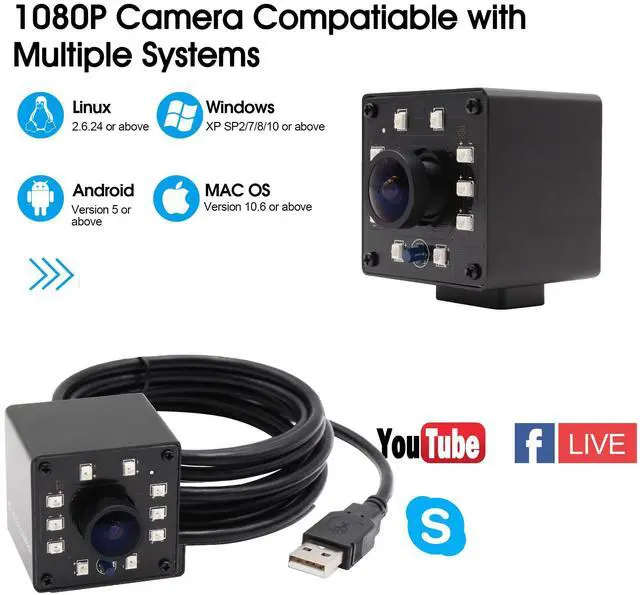

Support OS: WinXP/Vista/WIN7/WIN8, Linux with UVC, Mac-OS X 10.4. 8 or later, Wince with UVC, Android 4.0 or above
