PCIE to 6-Ports 6Gbps Max Speed SATA III Expansion Card for Desktop PCs, Plug and Play on Windows OS MAC OS Linux System, ASMedia ASM1166 None-Raid PCIE SATA III Host Controller (FS-S6-Pro)

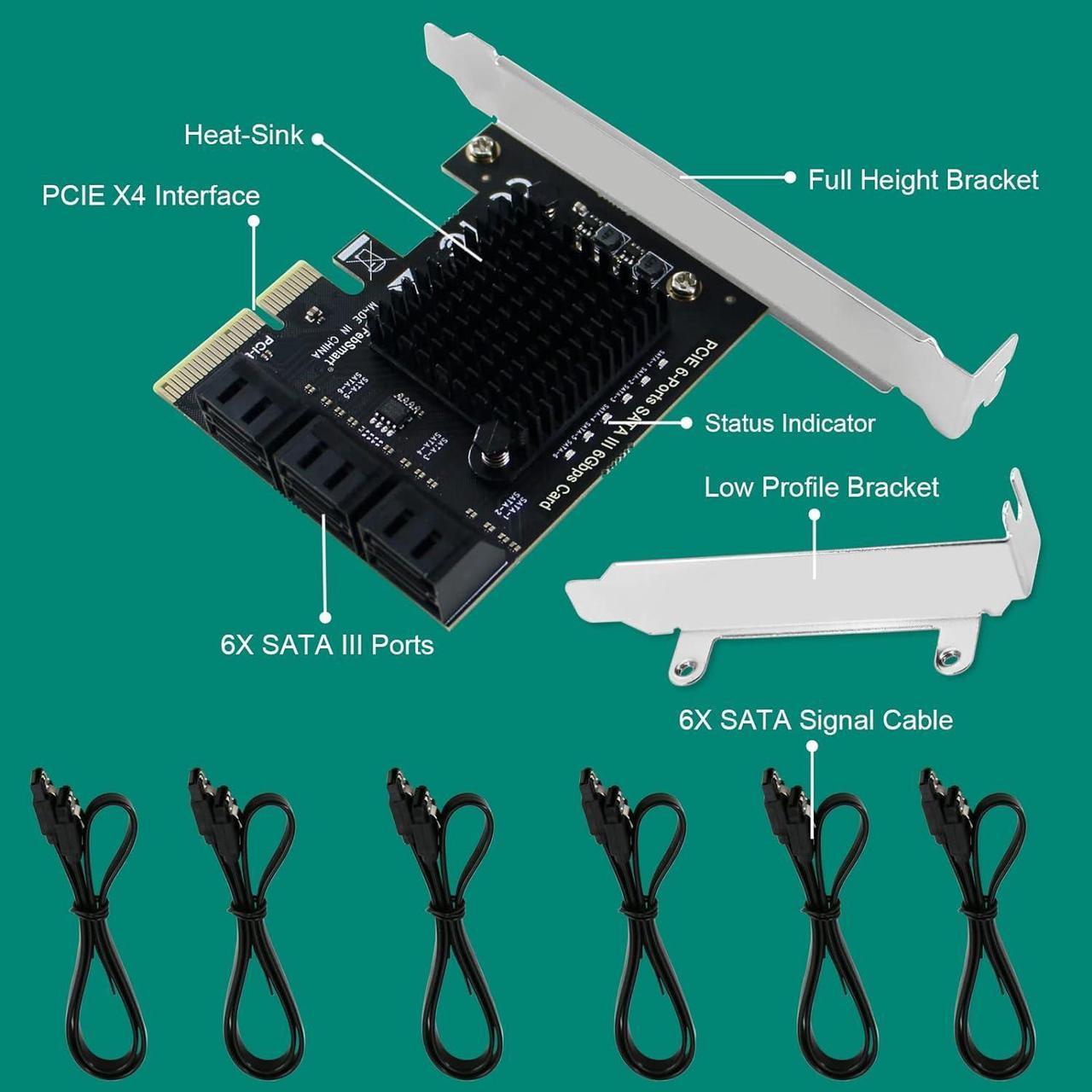

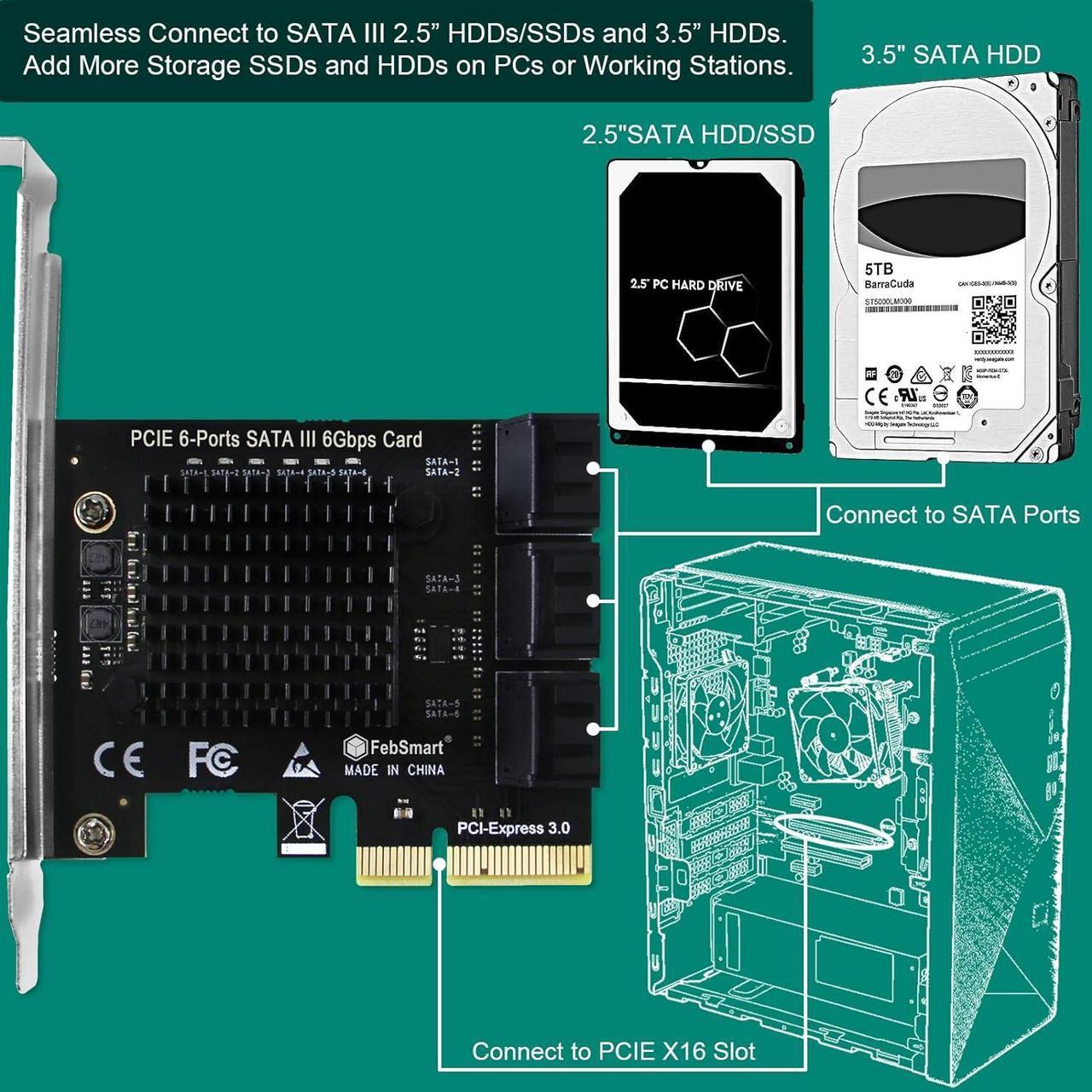

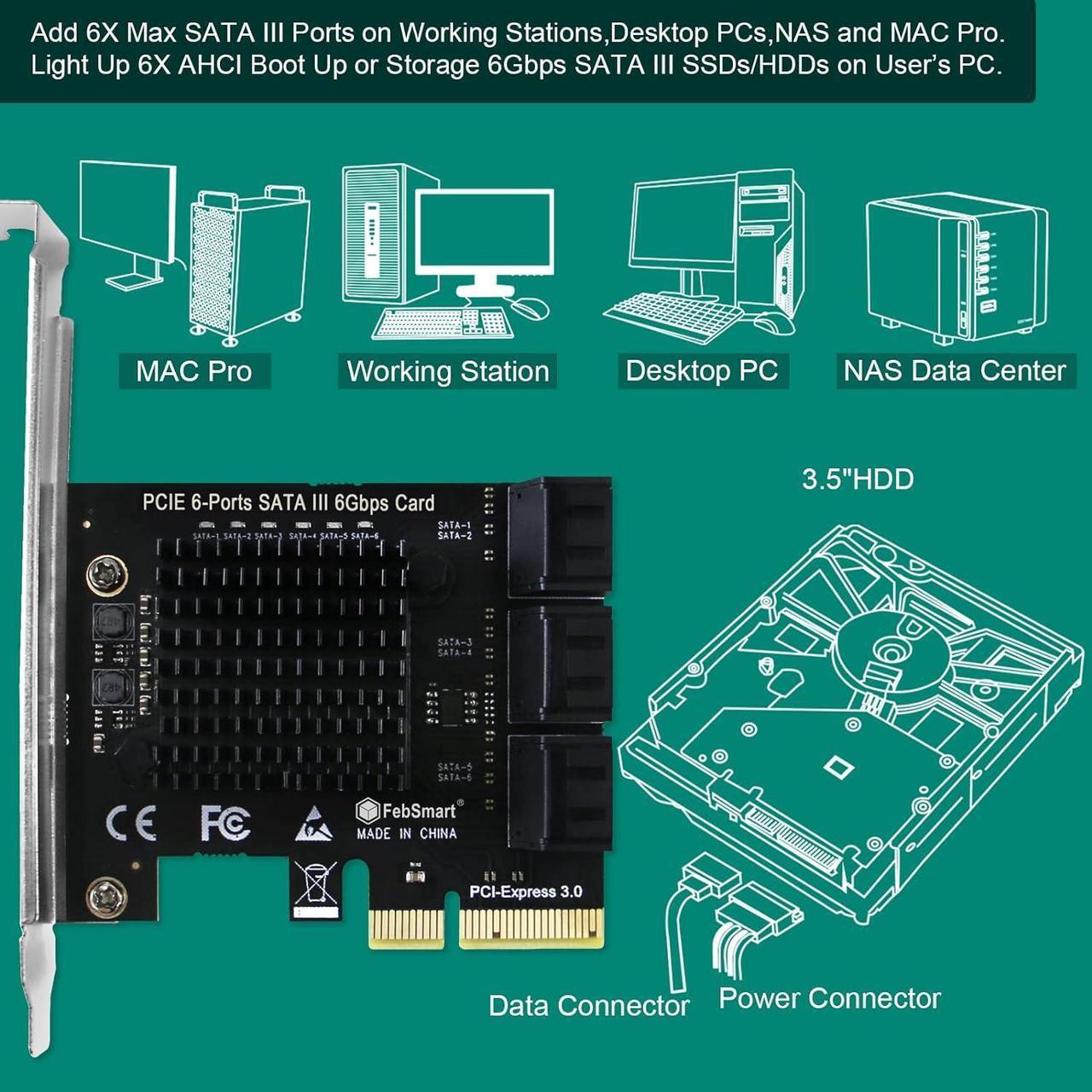

1. The FS-S6-Pro is a PCI Express 3.0 X4 interface to 6-Ports 6 Gbps speed SATA III expansion card. It allows users add 6X NONE-RAID SATA III storage or AHCI BOOT UP HDDs/SSDs on desktop PCs, Working Stations, MAC Pros and Network Attached Storage (NAS).

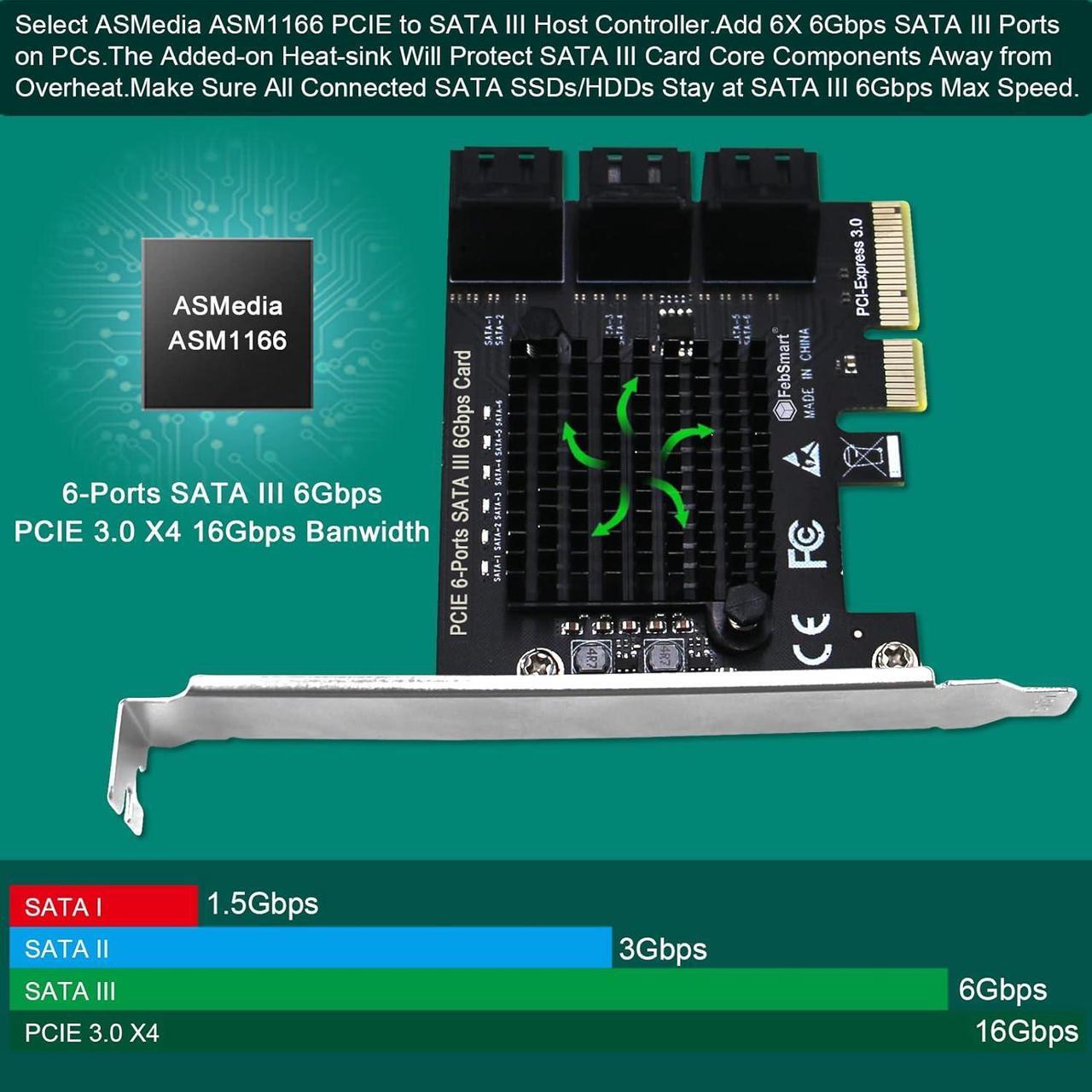

2. Select the ASMedia ASM1166 the most stable NONE-RAID PCIE 3.0 SATA III host controller. PCIE 3.0 X4 interface, provide 16Gbps total bandwidth. Each SATA 3.0 port will get 6Gbps max speed for AHCI BOOT UP or storage for HDDs/SSDs.
3. Plug and Play on Windows 11, 10, 8. x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64). MAC OS 10.4. x, 10.5. x, 10.6. x, 10.7. x, 10.8. X, 10.9. x, 10.10. x, 10.11. x, 10.12. x, 10.13. x, 10.14. x, 10.15. x and most of Linux kernel systems.

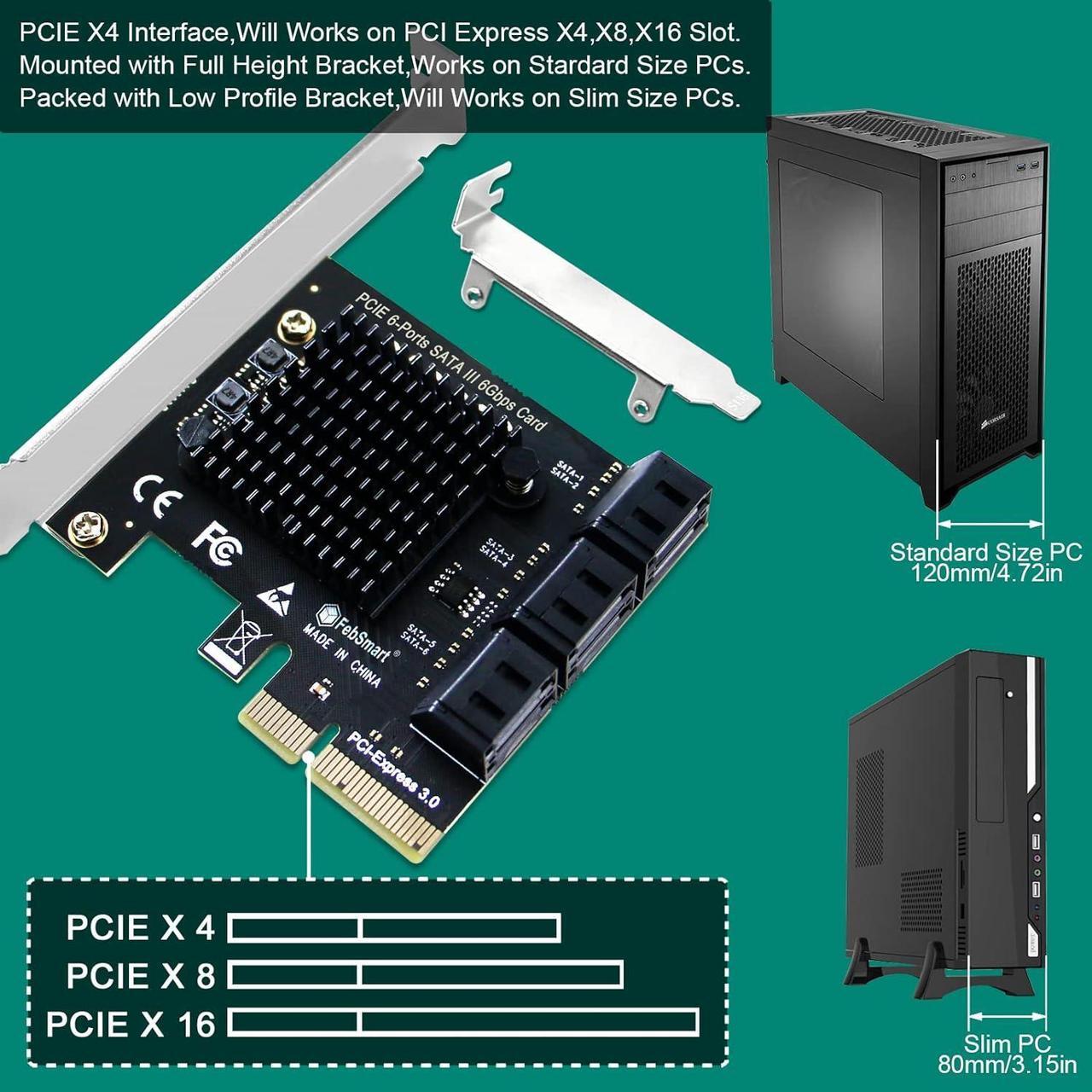

4. Compatible with Serial ATA (SATA) Revision 3.1 specifications, auto switch to SATA 3.0 6Gbps max speed. Backward compatible with SATA 1.0 1.5G bps speed and SATA 2.0 3Gbps speed. Support PCIE 1.0, 2.0, 3.0, 4.0 protocol and works on motherboard PCIE X4, X8, X16 slot.
5.
ATTENTION: 1. This SATA card was set on AHCI Boot mode, make sure now PCs in AHCI BOOT UP mode or it will report Blue Screen Death (BSD). 2. Make sure PCs power supply unit (PSU) can provide 6X max SATA interface power connector. 3. Users must make sure Motherboards have at least one PCIE X16 slot before purchase. 4. Slim PCs need user change to low profile bracket.
