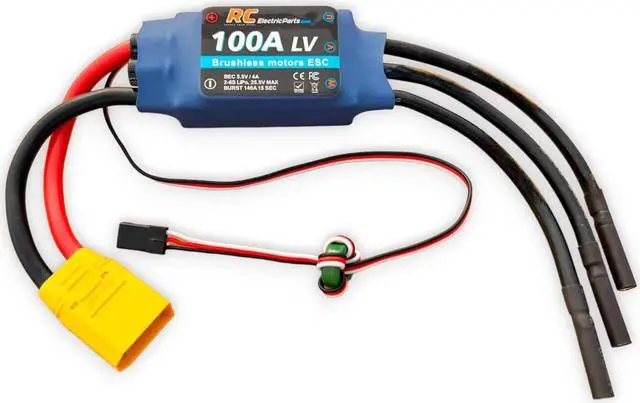

100A RC Brushless Motor Electric Speed Controller ESC 5.5v 4A UBEC

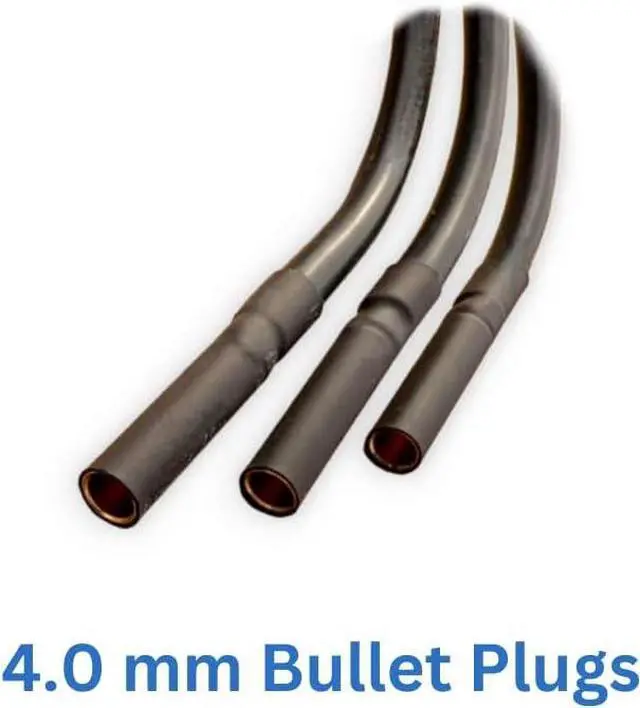

- Comes Pre-soldered with XT90 Connector and 4.0mm bullet plugs
- 5.5v/4A UBEC (Very Efficient)- ESC will power receiver and servos
- LiPo 2 - 6s (Cells), NiCd/NiMH: 5 - 18 Cells, 6.4v - 25.2v
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Low Battery Protection, Overheat Protection, Startup Throttle Protection, Signal Loss Protection, and Abnormal Voltage Protection

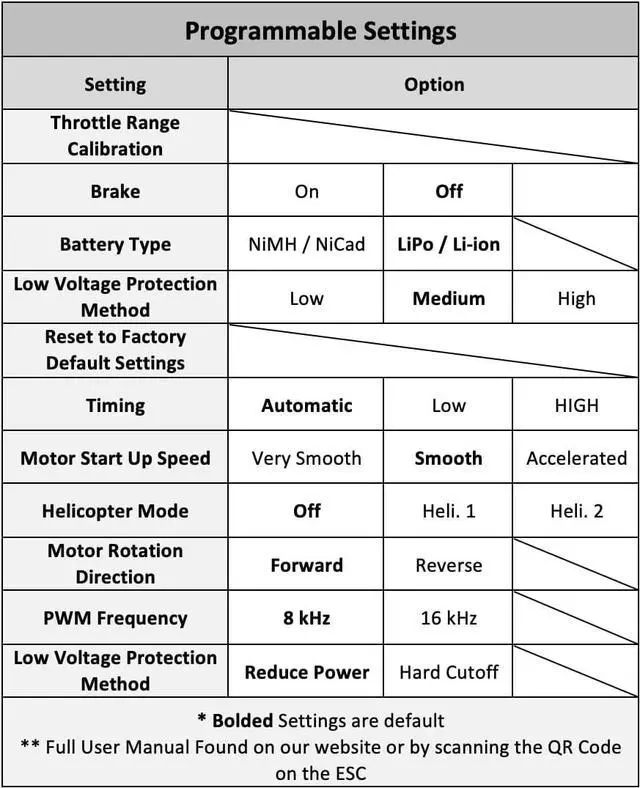

Programmable - Programming card or using Transmitter
The RC Electric Parts 100A Electric Speed Controller (ESC) is a great little powerful ESC that runs very well and doesn't run hot like other ESCs!
The ESC can be programmed via the transmitter as explained in the instructions or using a programming card that can be purchased separately. Make sure to use an RC Electric Parts Programming card to ensure that it'll properly program the ESC.
Benefits:
Programmable either using a programming card or transmitter
Super smooth and accurate linear throttle adjustment
Supports high RPM motors.
Utilizes smaller MOSFETs to minimize weight.
Minimal heat loss
Specs:
Continuous Output:
100A
Bursts Output:
140A for 15 seconds
UBEC:
5.5V/4A
Lipo Battery:
2 - 6s (cells)
NiCd/NiMH:
5 - 18 cells
Voltage Input:
6.4v - 25.5v
Size:
66mm x 35mm x 25mm
Weight:
95g
Motor Type:
Brushless Motor
Max RPM:
240,000 rpm for a 2 pole, 80,000 rpm for a 6 pole, or 40,000 rpm for a 12 pole brushless motor
ESC Manual Link
https://www.rcelectricparts.com/esc-user-guide.html
Programmable - Programming card or using Transmitter
The RC Electric Parts 100A Electric Speed Controller (ESC) is a great little powerful ESC that runs very well and doesn't run hot like other ESCs!
The ESC can be programmed via the transmitter as explained in the instructions or using a programming card that can be purchased separately. Make sure to use an RC Electric Parts Programming card to ensure that it'll properly program the ESC.
Benefits:
Programmable either using a programming card or transmitter
Super smooth and accurate linear throttle adjustment
Supports high RPM motors.
Utilizes smaller MOSFETs to minimize weight.
Minimal heat loss
Specs:
Continuous Output:
100A
Bursts Output:
140A for 15 seconds
UBEC:
5.5V/4A
Lipo Battery:
2 - 6s (cells)
NiCd/NiMH:
5 - 18 cells
Voltage Input:
6.4v - 25.5v
Size:
66mm x 35mm x 25mm
Weight:
95g
Motor Type:
Brushless Motor
Max RPM:
240,000 rpm for a 2 pole, 80,000 rpm for a 6 pole, or 40,000 rpm for a 12 pole brushless motor
ESC Manual Link
https://www.rcelectricparts.com/esc-user-guide.html
