$106.85
Meet Your Seller

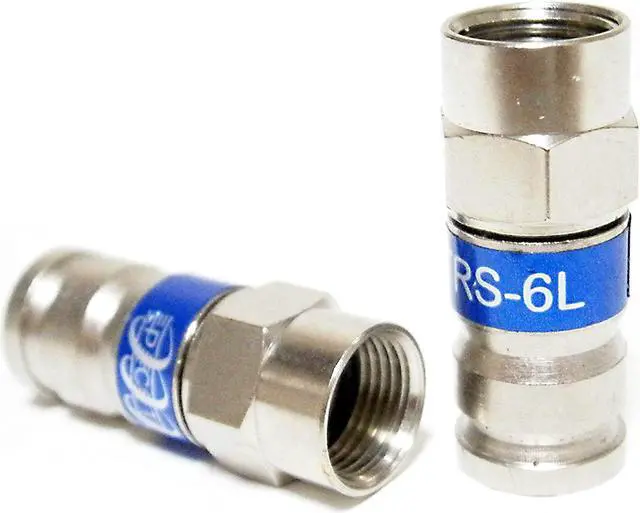

20 Pieces PCT-TRS-6LMG Universal RG-6 Coaxial Locking Compression Connector Weather Seal Coaxial Fitting 18mm Stroke Length
- Continuous Ground - Improved ground contact both when tight and loose
- All Metal Design - 100% Brass Construction. Dual O-Ring Design - Delivers a superior barrier against moisture intrusion. Metal Compression Rings - Stay compressed and wont break down
- PCT-TRS-6LMG - RG6 Cable 60% through Quad-Shield
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Usage: HD Over the Air Antenna - DirecTV / Dish Network, and Other Satellite Usage Approve - Ham Radio, Short Wave Antenna Usage - Cable Modem Internet - HD Digital Cable TV - Cellular Boost Antenna - Speed Sensor
Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
PCT-TRS-6LMG universal compression connectors are technically advanced compression connectors incorporating unique dual compression ring technology which provides superior holding strength and excellent protection against moisture migration. The universal design allows it to be used on cables from 60% braid through quad-shield while maintaining excellent hold strength against the cable. Use with all-in-one universal rg59/rg6/bnc/rca coax compression snap-n-seal tool f compression connector - O-ring in connector face to provide a hermetically sealed interface - works with standard shield through quad-shield series 6 cable - conforms to industry standards.
Features
Continuous Ground - Improved ground contact both when tight and loose
Enhanced Shielding - Improved shielding effectiveness when loose
Torque Retaining - Built in lock washer keeps the connection tight
Tested to ANSI/SCTE, ASTM and Telcordia (formerly Bellcore) Standards - The only coaxial connector that meets Telcordia's loosening torque specification
All Metal Design - 100% Brass Construction
Dual O-Ring Design - Delivers a superior barrier against moisture intrusion
Metal Compression Rings - Stay compressed and wont break down
General Specifications
Bandwidth: 5Mhz to 3Ghz
Impedance (Nominal): 75 Ohms
Return Loss: > -30 dB to 3 GHz
Insertion Loss: 0.2 dB at 3 GHz
Loosened Condition: Continuous ground feature maintains the ground path even in a loosened state
Cable Range: RG6 Cable 60% through Quad-Shield
Cable Retention: >60lbs (27.21 kg), Ambient Temperature
Physical Characteristics
Length Before Compression: 1.12in (28.45mm)
Construction Material: Nickel Plated Brass
Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
PCT-TRS-6LMG universal compression connectors are technically advanced compression connectors incorporating unique dual compression ring technology which provides superior holding strength and excellent protection against moisture migration. The universal design allows it to be used on cables from 60% braid through quad-shield while maintaining excellent hold strength against the cable. Use with all-in-one universal rg59/rg6/bnc/rca coax compression snap-n-seal tool f compression connector - O-ring in connector face to provide a hermetically sealed interface - works with standard shield through quad-shield series 6 cable - conforms to industry standards.
Features
Continuous Ground - Improved ground contact both when tight and loose
Enhanced Shielding - Improved shielding effectiveness when loose
Torque Retaining - Built in lock washer keeps the connection tight
Tested to ANSI/SCTE, ASTM and Telcordia (formerly Bellcore) Standards - The only coaxial connector that meets Telcordia's loosening torque specification
All Metal Design - 100% Brass Construction
Dual O-Ring Design - Delivers a superior barrier against moisture intrusion
Metal Compression Rings - Stay compressed and wont break down
General Specifications
Bandwidth: 5Mhz to 3Ghz
Impedance (Nominal): 75 Ohms
Return Loss: > -30 dB to 3 GHz
Insertion Loss: 0.2 dB at 3 GHz
Loosened Condition: Continuous ground feature maintains the ground path even in a loosened state
Cable Range: RG6 Cable 60% through Quad-Shield
Cable Retention: >60lbs (27.21 kg), Ambient Temperature
Physical Characteristics
Length Before Compression: 1.12in (28.45mm)
Construction Material: Nickel Plated Brass
Please See All Available Professional Grade Coaxial Connectors With Various Specifications by PHAT SATELLITE INTL
