236PCS 5 Set Deutsch DT Connector Kit, 2 3 4 6 Pin Gray Waterproof Electrical Connector with Solid Contact and Seal Plug for Truck, Boat, Off-Road Vehicles, Agriculture, Marine, Motorcycle Wiring.

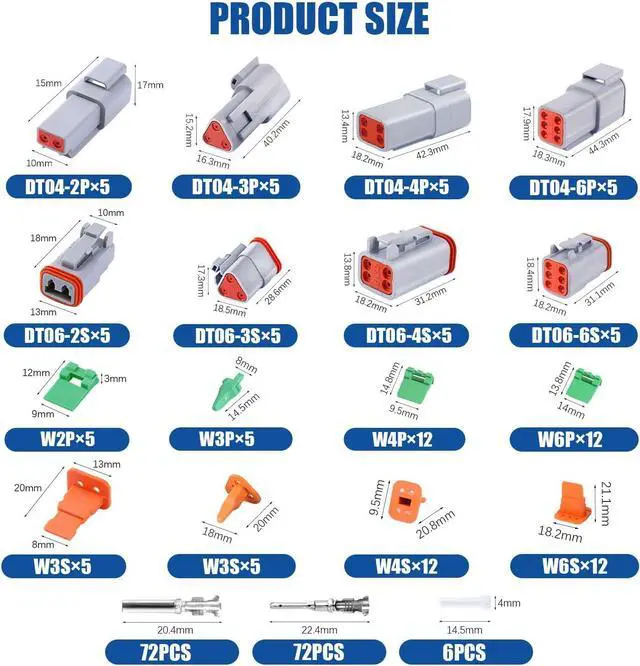

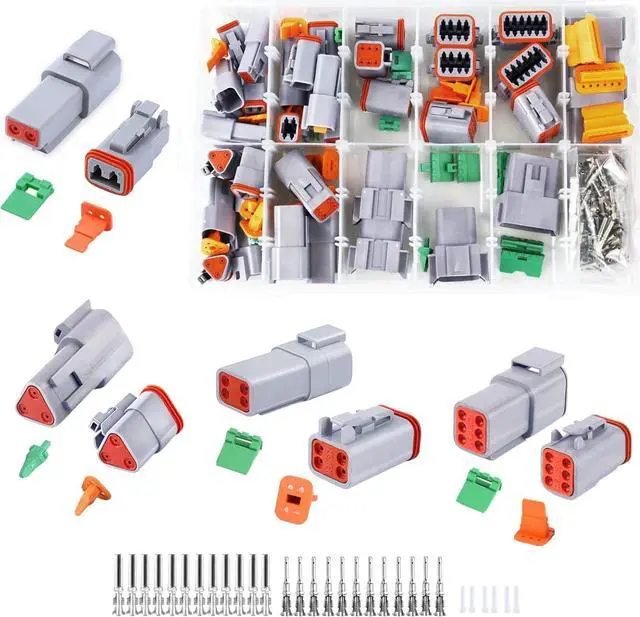

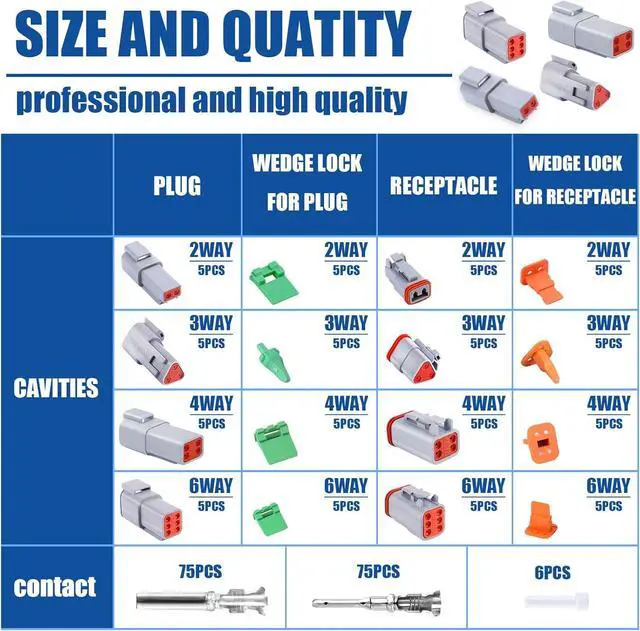

- Package List: 5 sets 2 3 4 6-pin connectors(each have a male plug and a female plug), 75 pairs solid terminals(75 pcs pins and 75 pcs sockets), 6 pcs seal plugs.

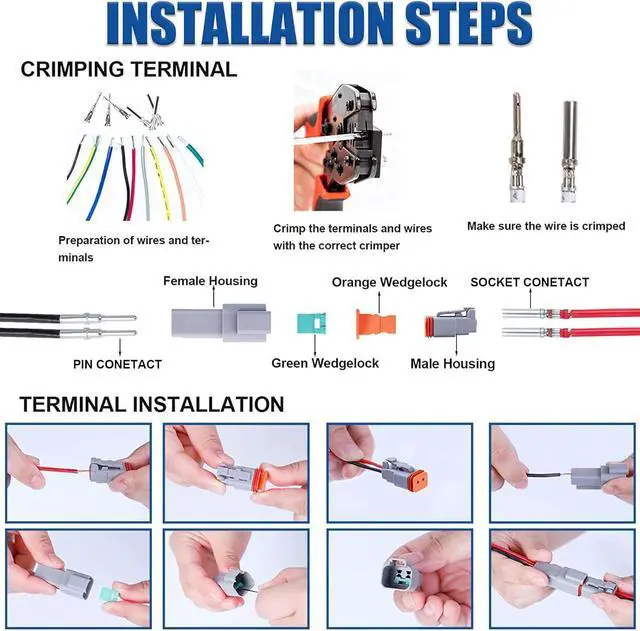

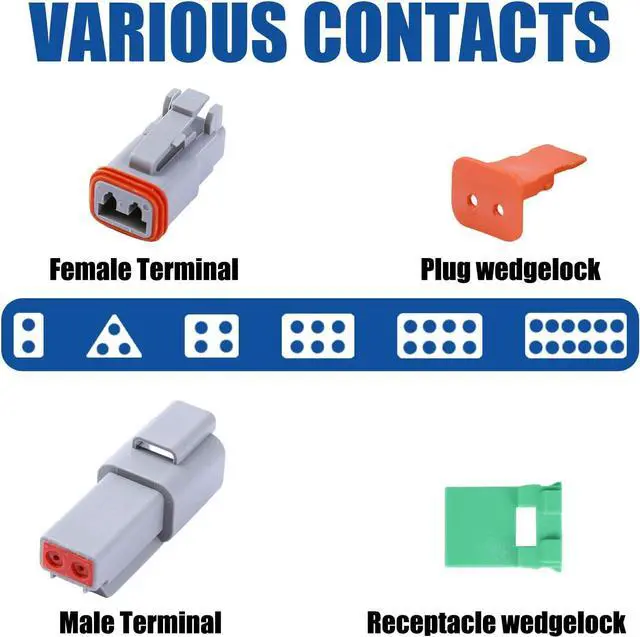

- Wedge Lock: The plug and socket each consist of a housing and a wedge lock. The wedge lock is used to ensure the correct contact arrangement and safety of the contacts.
- Size 16 Solid Contact: Deutsch 16 gauge nickel plated solid socket for 20-14 AWG, nickel plated copper alloy.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Premium Material: Male and female connector plugs are made of nylon material, durable and waterproof, easy to connect and disconnect, suitable for long-term use.
Multifunctional Use: stable and widely used in cars, motorcycles, trucks, ships, trucks, buses, off-highway, construction, agriculture, mining, emergency vehicles, forestry, recreation and marine.
Product Description
DEUTSCH DT Series Connectors
DEUTSCH DT series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility.
The DT series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

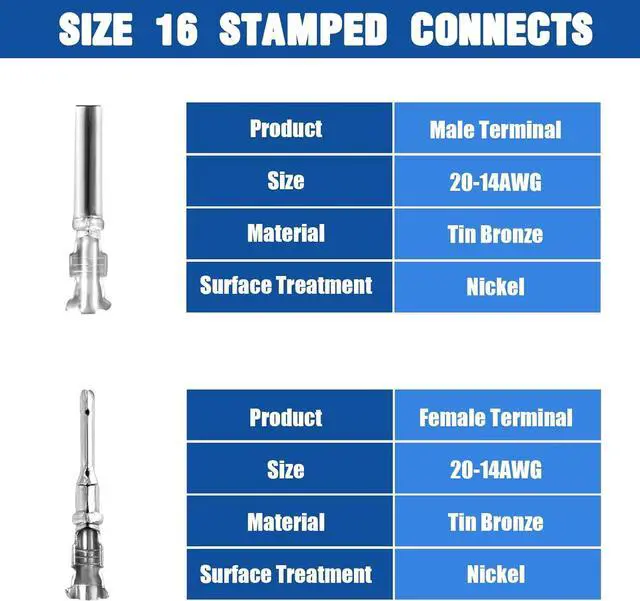

Size 16 Contacts
Contact Size: 16#
Mating Pin Diameter: 1.59 mm[. 063in]
Terminal Transmits: 024 A (Low Power)
Crimp Type: Indent(4-indent crimper)
Material: Tin Bronze/Nickel plate
Current Rating: 13-Amps
Wire Range: 14-20 AWG
Multifunctional Use: stable and widely used in cars, motorcycles, trucks, ships, trucks, buses, off-highway, construction, agriculture, mining, emergency vehicles, forestry, recreation and marine.
Product Description
DEUTSCH DT Series Connectors
DEUTSCH DT series connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, and design flexibility.
The DT series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.
Size 16 Contacts
Contact Size: 16#
Mating Pin Diameter: 1.59 mm[. 063in]
Terminal Transmits: 024 A (Low Power)
Crimp Type: Indent(4-indent crimper)
Material: Tin Bronze/Nickel plate
Current Rating: 13-Amps
Wire Range: 14-20 AWG
