3-1/8" Dial Size, Digital Pressure Gauge, 0-3000psi/bar/Mpa, 1/4" NPT Lower Mount, 0.25% Accuracy

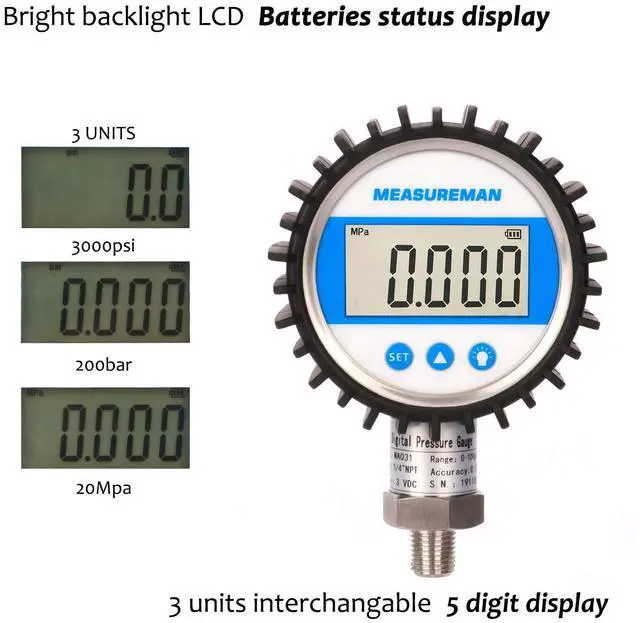

Batteries status display, pressure unit interchangeable

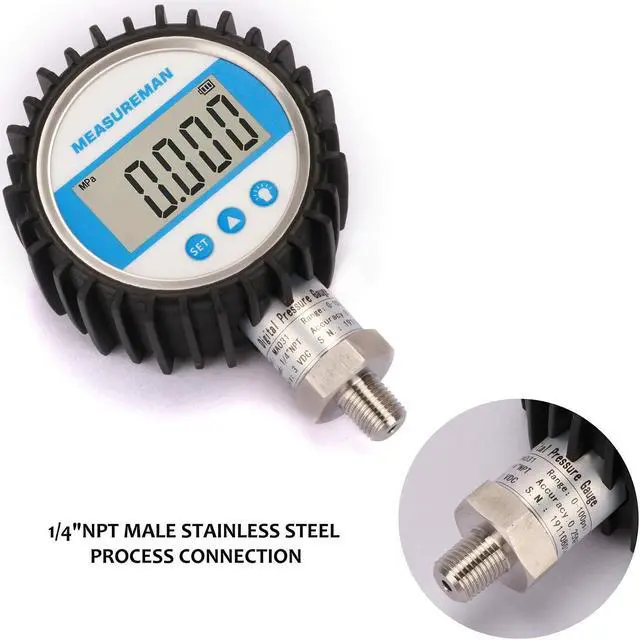

316 Stainless steel connection, 1/4"NPT male
Description
For hydraulic, oil pressure, water pressure, air pressure measuring, for media which is not corrosive to stainless steel wetted parts

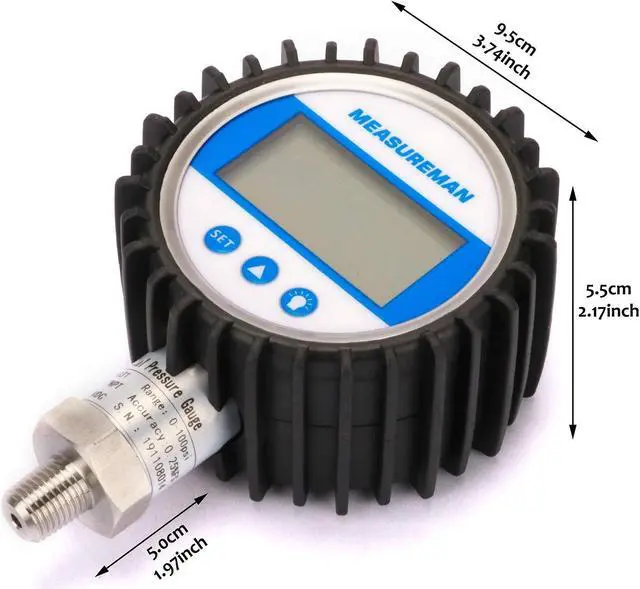

Dial size : 3-1/8"

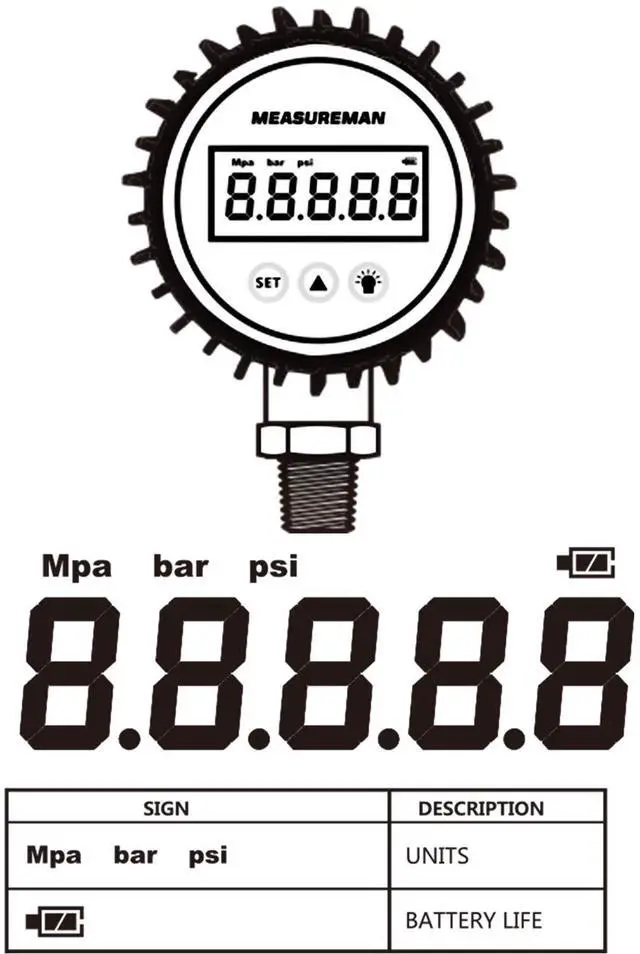

Pressure Range : 0-3000psi, bar, Mpa, 5 digit display, 3 units, 0-3000psi, bar, Mpa, 150% over load
Batteries status display
Process connection : 1/4"NPT male, lower mount
Overload Capacity : 150%

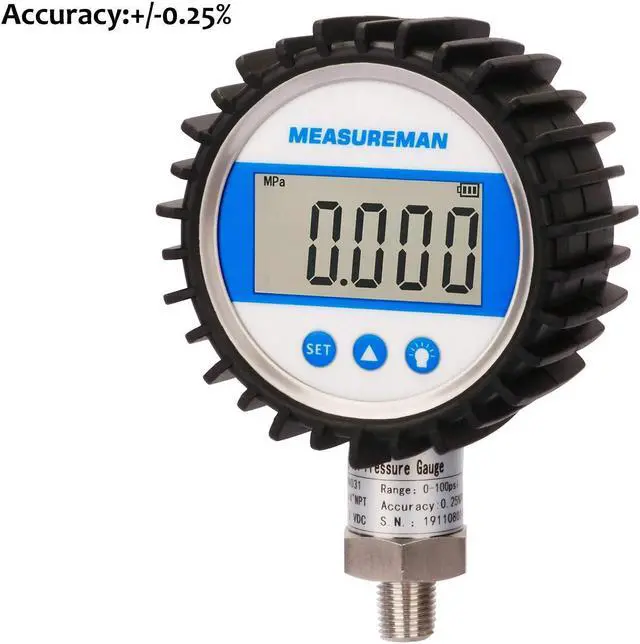

Accuracy : 0.25%
Input Voltage : 3.0V (two 1.5V AAA batteries)
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Case : 304 stainless steel
Wetted parts : 316 stainless steel
IP Class : IP54
How to operate :

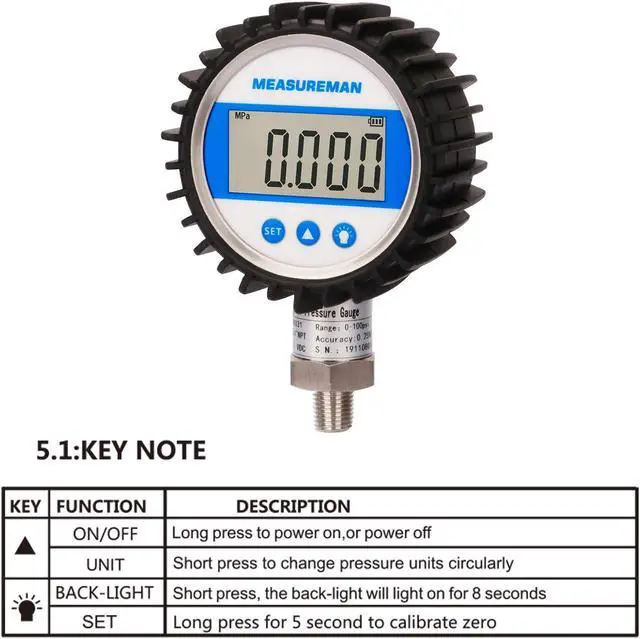

Button Description :
Power button : Long Press to Start up/Shut down
UNIT button : Short Press the button, cyclic switching the pressure unit
ZERO button : Press Zero button for 5 seconds, Calibration zero
LIGHT button : Press Light button start up/shut down backlight
Package Content:
1 x Digital Pressure Gauge,
1 x Operation Manual.

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
