DC Converter Voltage Reducer 36V 48V Step Down to 24V 30A 720W, Waterproof Big-Size Voltage Reducer, High-Power DC/DC Power Supply Module Buck Transformer, for Golf Cart, forklifts, Car

Waterproof rating: IP68, 100% waterproof , can work in rain, waterproof housing makes the converter ideal for use in a wide range of applications including vehicles, security systems, hospital equipment, telecommunications etc, and Commonly used for radio, speaker system, club car, electric bike, solar panel, led lights.
Wide application: Used on golf cart,club car,bus, cmb, large trucks,taxi radio,motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, DVD, solar panel, electronic systems, industrial equipment and other 12V devices.
The dc converter regulator is a high reliability power transformer. It features wide input voltage, low power consumption, high efficiency, high reliability. It can work safely and reliability in 40°C~80°C. It widely used in industrial, automotive, instruments, telecommunication and civil applications.
Synchronization Rectification Technologyefficiency up to 96% max
Industry grade DC 36V 48V to 24V step-down converter
5 Safty Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage; Auto-recovery when device is back to normal operating
Die-cast aluminum shell, epoxy potting, cooling by free air convection
Applications: golf cart, forklifts, bus, CMB, large trucks, motor car, solar power generating, bus displaying screen, taxi advertising screen, taxi radio without interference, car audio speaker, LCD TV, LED, intercom and monitor system, etc.
Stable and reliable performance,

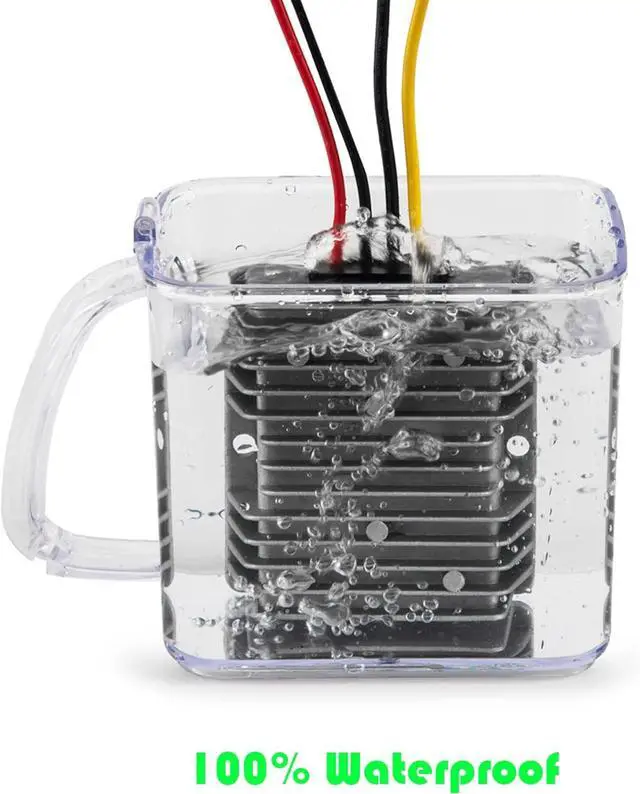

100% waterproof & anti-shock protection, lifetime up to 100,000 hours

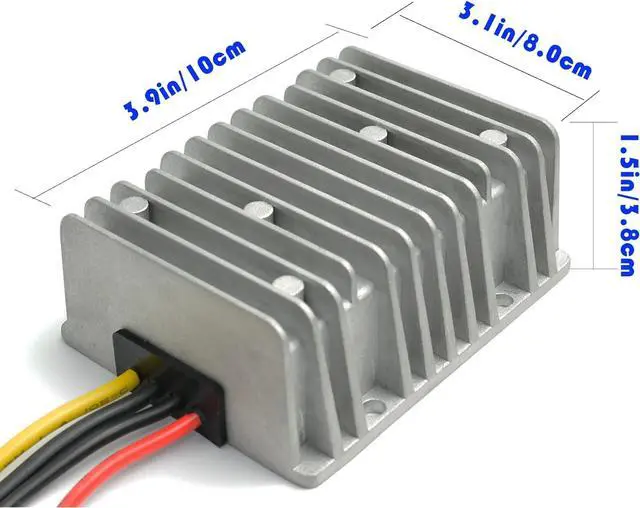

Ultra compact size, light weight
Non-Isolated Module
Easy to install
Case material: die-cast aluminum
Potting material: epoxy sealed
Input voltage: 36V/48V DC
Input range: 30-60V DC
Output voltage: 24V DC (non-adjustable)
Output current: 30A
Output Rated Power: 720W
Efficiency: 97% (half load); 95% (full load)
Operating temperature:-40 ~ 85
Waterproof rating: IP68
Fixing Hole Diameter: 5mm(0.20 inch)
Package included:
1 x DC Voltage converter regulator
Safety Instructional Manual:
1. Can not used long time Under the MAX. LISTED LOAD POWER.

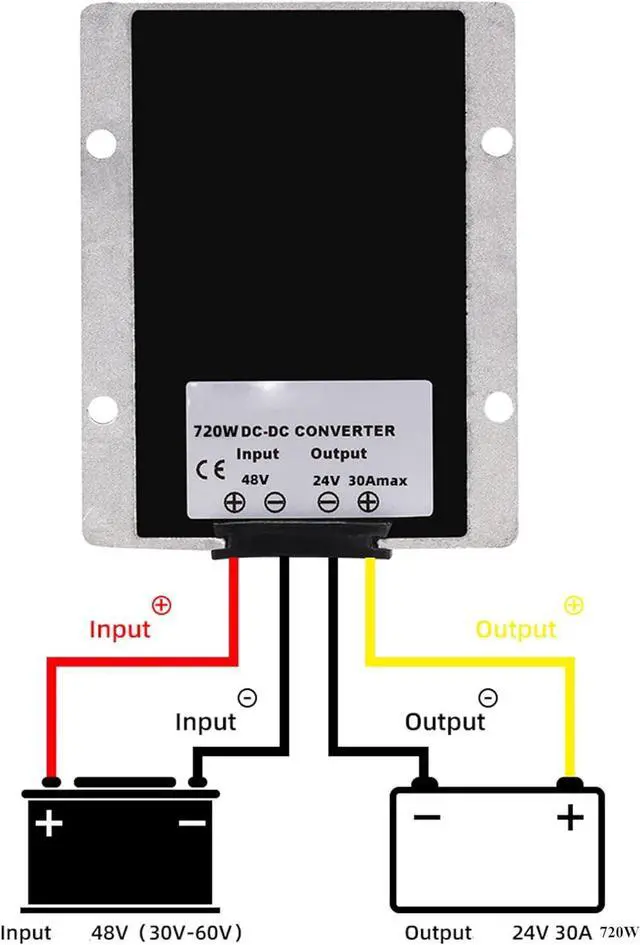

2. Please connect the converter and your device as the wiring diagram provided on above picture.
