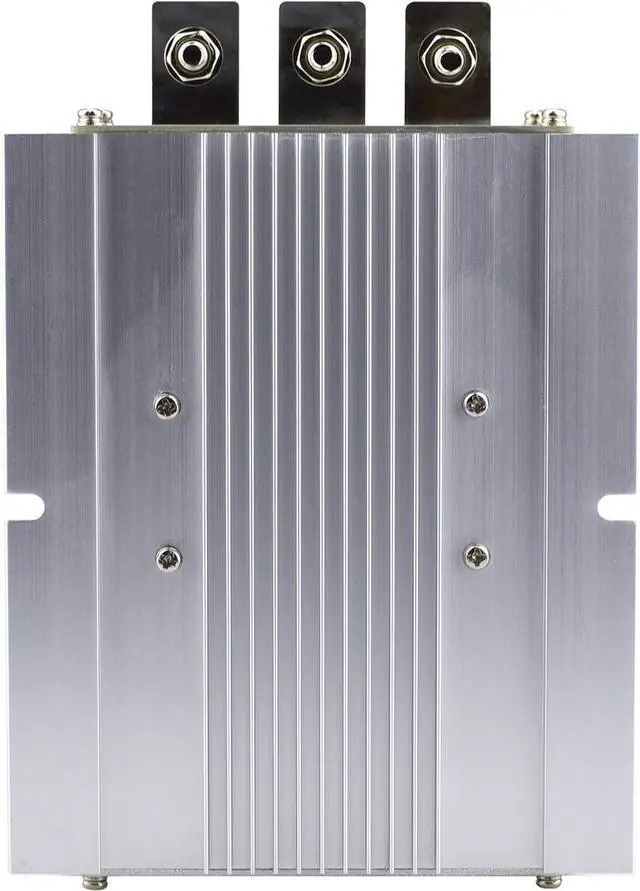

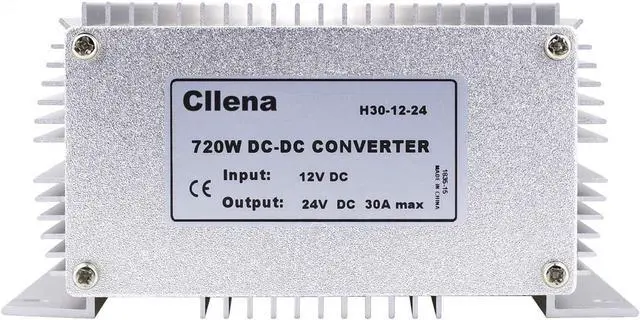

Waterproof DC/DC 12V to 24V Boost Converter 30A 720W Step Up Voltage Regulator Module Car Power Supply Voltage Transformer (Input 10V-16V)
- Input voltage range: DC 10V-16V; Output voltage: DC 24V(non-adjustable); Output current: 30A (rated working current); Output power 720W.
- High conversion efficiency: The conversion efficiency may reach 95%; Its dynamic response speed is 5 percent 200US, please lower the power or enhance heat radiation when temperature over 40
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

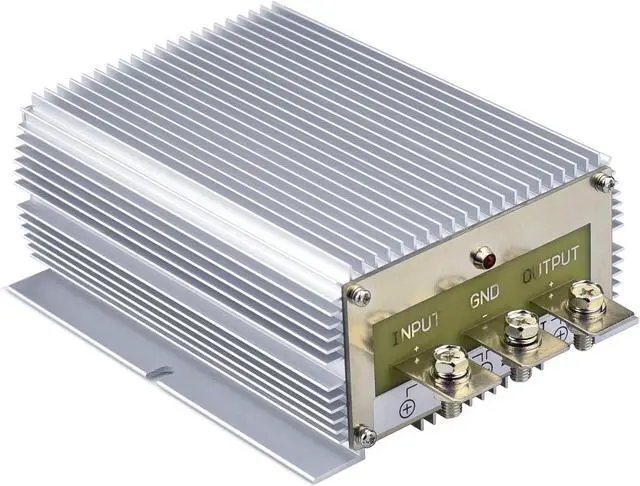

Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
Wide application: Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems etc.

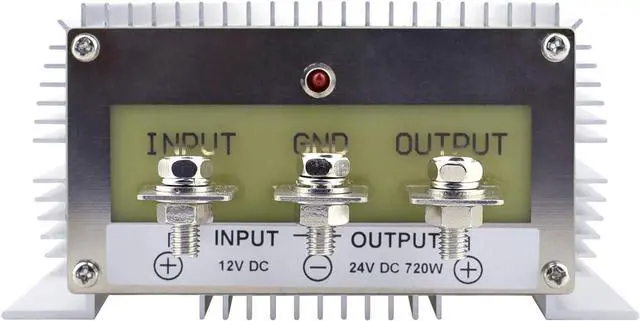

Wiring: INPUT+ to BAT+, GND to BAT-; OUTPUT+ to LOAD+, GND to LOAD-
Note:
* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
* Never charge the battery. Keep good air convection.
* Never reverse the polarity.
* Use the enough big cable to avoid the voltage drop.
Application:
12V DC battery as input power to 24V DC appliances as output load.
Specifications:
Input Rated Voltage: 12V DC
Input Voltage Range: 10V-16 DC
Output voltage: 24V DC
Output Current: 30 Amp
Output Rated Power: 720W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Total Size: 180*127*63mm(L*W*H)
Weight: 1550g
Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 12V to DC 24V step up converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.
Package included:
1 x DC 12V-24V 30A Step up Converter
Questions:
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
Wide application: Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems etc.
Wiring: INPUT+ to BAT+, GND to BAT-; OUTPUT+ to LOAD+, GND to LOAD-
Note:
* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
* Never charge the battery. Keep good air convection.
* Never reverse the polarity.
* Use the enough big cable to avoid the voltage drop.
Application:
12V DC battery as input power to 24V DC appliances as output load.
Specifications:
Input Rated Voltage: 12V DC
Input Voltage Range: 10V-16 DC
Output voltage: 24V DC
Output Current: 30 Amp
Output Rated Power: 720W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Total Size: 180*127*63mm(L*W*H)
Weight: 1550g
Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 12V to DC 24V step up converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.
Package included:
1 x DC 12V-24V 30A Step up Converter
Questions:
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
